Description
Bombardier DCC2382A | 3EST125-975 Drive Control Unit Core Category
Dynamic Product Introduction
Replacing safety-critical controller boards in heavy rail transit propulsion systems requires robust hardware capable of withstanding extreme vibration, thermal swings, and electrical noise without failing. Honestly, the Bombardier DCC2382A (3EST125-975) Drive Control Unit solves this challenge directly by delivering native rail-certified processing engineered specifically for Bombardier traction inverter and control architectures. This module handles high-speed propulsion logic and MVB communication reliably, ensuring strict adherence to safety standards ( such as SIL 2 ratings) (—though verifying your exact firmware version, software checksums, and backplane slot configuration beforehand is vital). Compared to generic industrial controllers, the DCC2382A preserves system-level railway compliance, preventing costly compliance errors or transit downtime during overhauls.

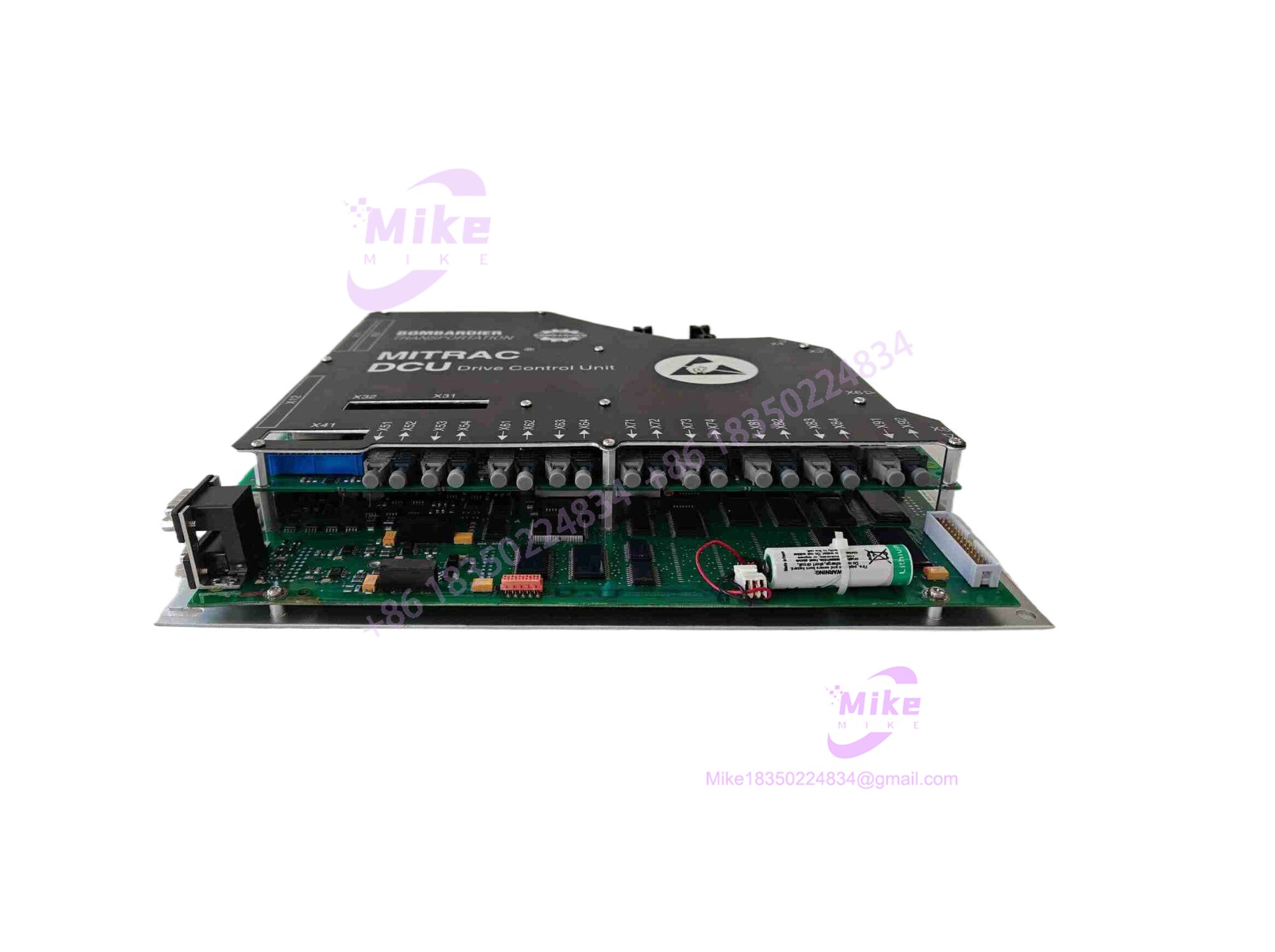

DCC2382A 3EST125-975
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Bombardier Rail Traction Control Line (DCU) |
| Model Designation | DCC2382A / Part No. 3EST125-975 |
| Processor Core | Dual-core PowerPC architecture (high-speed lockstep operation) |
| Communication Bus | Multi-channel MVB (Multifunctional Vehicle Bus) interfaces |
| Safety Compliance | Designed for rail safety standards (e.g., SIL 2 / EN 50128) |
| Operating Temperature | -40°C to +85°C harsh industrial railway compliance |
| Enclosure & Rating | Cast-aluminum ruggedized housing, IP67 protection rating |
| Diagnostics | Built-in hardware fault detection, diagnostic ports, and status LEDs |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market safety-critical rail transit hardware requires rigorous electrical and environmental verification to ensure internal microprocessors, memory registers, and communication transceivers are completely uncorrupted. For every inbound Bombardier DCC2382A (3EST125-975) unit, our audit team logs serial numbers against global OEM traceability ledgers and inspects ruggedized connector pins and housing seals for oxidation or micro-fractures.
Once cleared, the module is mounted onto an active rail test bench simulation rig. Technicians execute a full system boot handshake, verify memory CRC and watchdog routines, test packet transmission integrity across the MVB communication ports, and run a 24-hour thermal burn-in cycle. The unit is then cleaned, fitted with protective caps, and sealed inside an anti-static moisture-barrier bag.
The Field Engineer’s Pitfall Guide
❗ Hot-Plugging Power Hazards: Inserting or extracting the DCC2382A module while the rack power supply is energized can short internal logic circuits or corrupt vital vehicle bus registers. Always drop local rack power before servicing.
❗ Firmware & Checksum Mismatches: Installing a replacement board with an incompatible firmware version or unverified project software checksum can trigger safety faults or lock out traction inverter control. Always match software loads against project configuration files.
❗ Connector Pin Seating Force: Forcing the heavy-duty railway connectors onto the module pins at an improper angle can bend delicate contacts, resulting in intermittent MVB communication errors. Always align connectors carefully.
Intent-Driven FAQ
- Will replacing the Bombardier erase my traction control software?
Application software and configuration files are typically loaded via the vehicle management network or engineering toolset, though verifying software compatibility prior to installation is essential.
- Is the 3EST125-975 directly compatible with all Bombardier propulsion systems?
Compatibility depends strictly on your exact rolling stock platform, inverter model, and software generation; always cross-reference part number 3EST125-975 with your vehicle parts manual.
- What type of warranty covers surplus rail automation modules?
Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment communication and burn-in test verification logs.
- Can I repair internal component faults on this control board myself?
Component-level repair is strictly prohibited due to multi-layer surface-mount construction and critical safety-certified railway standards; always rely on certified service depots.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA verification stickers, clean unmarred connector pins, and accompanying test reports included in the packaging.
