ABB XO08R2 (Order Number: 1SBP260109R1001)

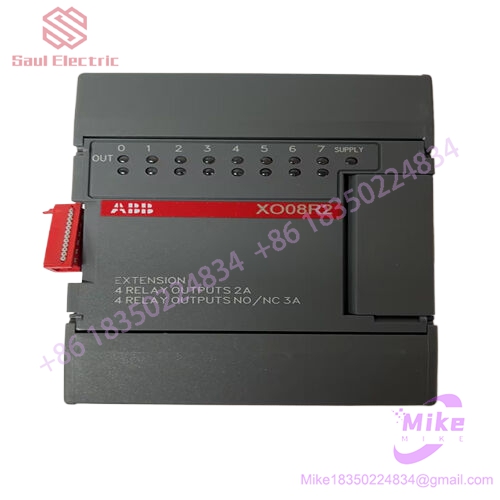

ABB XO08R2 1SBP260109R1001 Relay 8 O/P Controller PLC
This is an 8-way relay output expansion module produced by ABB, which belongs to the ABB Panel 800 series and AC 800M DCS system supporting I/O board. It is brand new and original.
Core functions:
This board is essentially an 8-channel relay output module used to expand the number of digital output points for relay types in the control system. It receives logic instructions from Panel 800 series CPUs (such as CP800, PN800, etc.), drives external loads through internal relays, and achieves signal conversion and electrical isolation for weak current control and strong current. Undertake the roles of logic control execution, signal isolation, and load driving in the system. Each output is a dry contact (passive contact) that supports AC or DC loads and has independent electrical isolation protection.
Key technical parameters:
The output type is relay output (dry contact), with a total of 8 independent channels. The power supply voltage is 24V DC standard industrial power supply. Communication interfaces include Ethernet RS-232、RS-485、USB， Supports mainstream industrial communication protocols such as Modbus and Modbus TCP. The working temperature range is -20 ° C to+70 ° C, and the protection level is suitable for industrial site environments. Adopting modular plug-in design, suitable for standard DIN rail or chassis installation. Up to 3 I/O expansion modules can be mounted, and the total I/O capacity of the system can reach 24DI/16DO. Programming supports NanoLin software for ABB Panel 800, using a flowchart programming method for simple and intuitive logic writing.
Typical application scenarios:
Mainly used in ABB Panel 800 series and AC 800M DCS systems to supplement relay output points for control systems, and to drive actuators such as on-site solenoid valves, contactors, indicator lights, alarms, etc. It is also widely used in small and medium-sized automated production lines in industries such as power, chemical, metallurgy, water treatment, machine tools, packaging equipment, etc., to achieve reliable driving of control logic to on-site equipment. The electrical isolation characteristics of relays are also commonly used to construct protection circuits such as emergency shutdown and safety interlocking.
Summary: XO08R2 1SBP260109R1001 is an 8-channel relay output expansion module in ABB’s industrial control system. Its core value lies in providing reliable electrical isolation relay driving capabilities for Panel 800/DCS systems, while also possessing advantages such as Ethernet communication, modular expansion, and easy programming. If used for spare parts procurement or system maintenance, it is recommended to confirm the host model (CP800 or PN800 series) and the required output points to ensure compatibility.
