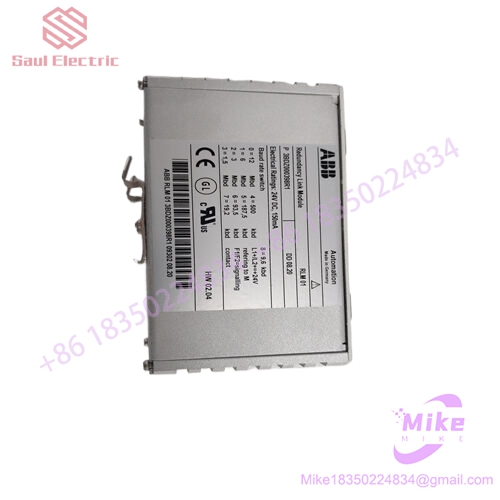

ABB RLM01 3BDZ000398R1 Profibus Redundancy Link Module
RLM01 3BDZ000398R1 is a Profibus DP redundant link module launched by ABB, which belongs to industrial grade communication adaptation equipment. Its core function is to achieve flexible conversion between single bus and redundant dual bus, ensuring high reliability and uninterrupted communication in industrial fields.
ABB RLM01 3BDZ000398R1 Profibus Redundancy Link Module
Core positioning: Profibus DP bus redundant conversion module, used in DCS distributed control systems and PLC systems to solve the risk of system shutdown caused by single point communication failures.
In terms of core functions, it supports the conversion of single cable bus to redundant Profibus DP dual bus, as well as the conversion of redundant dual bus to single cable bus, which can be flexibly configured as needed. The dip switch can manually set all 10 standard communication rates (9.6kBit/s, 19.2kB/s, 45.45kBit/s, 93.75kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s, 12MBit/s), or select the rate adaptive mode. The electrical interface adopts a 9-pin Sub-D connector, and the pin definitions strictly comply with the Profibus DP protocol specifications. This machine does not have terminal resistors and requires external connections.
In terms of electrical protection, it has 4000V lightning protection, 1.5A overcurrent protection, 600W surge protection, and a high level of electrical interface protection. The power supply adopts a wide voltage input of DC 9-36V, supports dual power redundancy, has DC1500V power isolation and reverse protection, with a typical power consumption of less than 4W. It is equipped with 6 dual color LED status indicators to visually display the power and link status, and is equipped with a power fault relay output alarm (contact capacity DC48V/1A), which is convenient for operation and maintenance personnel to quickly locate faults.
In terms of hardware, the external dimensions are 132mm × 105mm × 52mm, with a net weight of 800g, an IP30 protection level, a corrugated aluminum reinforced casing, and a standard 35mm rail installation. The working temperature ranges from -10 ℃ to+70 ℃ (with a wide temperature range of -40 ℃ to+85 ℃), and the relative humidity does not exceed 90% without condensation.
Application industry:
DCS communication redundancy guarantee for power plants and substations under the State Grid Southern Power Grid in the power utility industry; The petroleum and petrochemical industry, including the refining plants and oilfield DCS systems of PetroChina, Sinopec, and CNOOC; Process control communication in the steel metallurgy industry, steel plants, and non-ferrous metal mines; DCS for production lines of large cement groups such as Conch China Resources in the cement and building materials industry; Process control systems in the paper industry, pulp mills, and paper mills; The signal and integrated monitoring system for subway and light rail in the rail transit industry; SCADA communication for municipal pumping stations, water management, and environmental protection projects in the municipal engineering industry; In the field of intelligent buildings and energy monitoring; Industrial automation production lines for packaging machinery, plastic machinery, printing and dyeing, and lifting machinery.
Usage scenario:
1、 DCS system Profibus DP bus redundancy, RLM01 is placed behind the main station to convert the single cable bus into redundant dual bus A/B, and any fault will automatically switch to ensure uninterrupted communication between DCS and on-site I/O; 2、 The comprehensive automation system of the substation ensures reliable transmission of power monitoring data between redundant buses; 3、 Implementing redundant protection for Profibus DP communication between equipment in industrial automation production lines, automotive manufacturing, electronic manufacturing, and other production lines; 4、 From station side redundancy to non redundancy, converting redundant buses into single cable access to slave equipment, reducing wiring costs while retaining the redundancy capability of the main station side; 5、 Redundancy guarantee of SCADA communication link between wind power generation system and municipal pumping station; 6、 High availability architecture for Profibus DP communication between multiple controllers in intelligent buildings and energy management systems.
In summary, RLM01 3BDZ000398R1 is an industrial grade redundant link module developed by ABB for the Profibus DP bus. It features flexible conversion between single bus and redundant dual bus as its core, with 4000V lightning protection and dual power redundancy protection. It is widely used in scenarios such as power utilities, petroleum and petrochemical, steel metallurgy, cement and building materials, papermaking, rail transit, municipal engineering, and industrial automation production lines. It is a key component of the highly available communication architecture for DCS and PLC systems.
