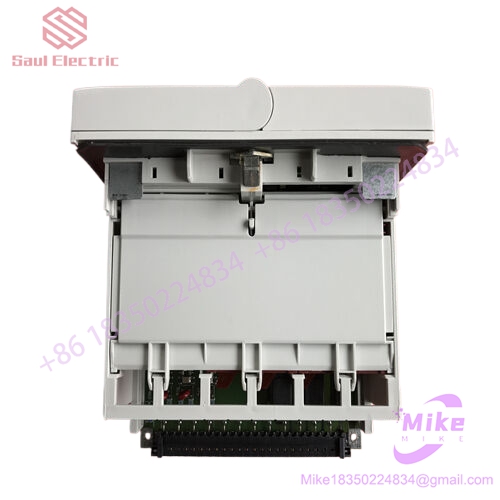

ABB REF610C11LCLR protective device
ABB REF610C11LCLR RELION ® Feedline protection relay 60Hz medium voltage distribution system protection control device
[Product Positioning]
REF610C11LCLR is ABB RELION ® The feeder protection relay in the 610 series belongs to the core interlayer equipment of ABB substation automation system. Model interpretation: REF610 is a feeder protection relay series, C represents the 60Hz version, 11 is the basic functional level (Basic), and LCLR is the hardware/communication/power configuration code. This device integrates multifunctional protection, measurement monitoring, fault recording, and multi protocol communication into a single compact panel mounted chassis, which is a digital integrated alternative to traditional electromechanical relays and independent protection devices. It is mainly used for the protection of incoming and outgoing feeders in distribution substations with resistance grounding and firm grounding power systems, and is also suitable for marine and nearshore environments. It has been certified by DNV.
ABB REF610C11LCLR protective device
[Core Function]
This device simultaneously undertakes tasks such as feeder protection, transformer protection, motor protection, capacitor bank protection, measurement monitoring, and sequence control. Built in dual processor architecture: one processor is dedicated to ultra fast protection algorithms (with a trip time of less than 25 milliseconds), while the other processor manages communication, HMI interaction, and data recording, without preempting resources. The protection function blocks are independent of each other, each with its own set of fixed values and data records, and do not affect each other. In addition to protection, measurement, control, and status monitoring, it also provides rich PLC programmable logic functions, which can integrate the automation and sequential logic control required for substation automation into one device, greatly reducing the need for on-site hard wiring.
Protection Function (Basic Level, Complete Configuration)
Overcurrent protection: Three phase non directional overcurrent (50/51), with low set values using timed or IDMT inverse time characteristics, high set values using timed or instantaneous characteristics, and instantaneous stages using timed or instantaneous characteristics. Support 15 optional IDMT inverse time curves to ensure selective coordination with upstream fuses.
Ground fault protection: Non directional ground fault protection (50N/51N), with low set values using timed or IDMT characteristics, and high set values using timed or instantaneous characteristics. Suitable for effective grounding, resonant grounding (arc suppression coil), and low resistance grounding networks.
Thermal Overload Protection (49): Three phase cable thermal overload protection, supporting cable thermal overload model (TOL3Cab), with thermal model accuracy of ± 2% of full scale.
Voltage protection: overvoltage (59), low voltage (27).
Unbalance protection (46): Current imbalance protection.
Circuit breaker failure protection (50BF): backup protection.
Automatic reclosing (79): Supports 1-3 times of automatic reclosing and has the function of checking synchronization and no voltage. The pickup and trip signals during the overcurrent and ground fault protection stages initiate the arc protection trip and do not initiate the reclosing.
Arc protection: Two lens sensors can be optionally equipped for arc detection, automatically adjusting the reference level according to the background light intensity, and can also receive detection signals from other relays. The arc protection action time is ≤ 25ms, fast enough to beat most contactor welding times.
Measurement function
Measure three-phase current, zero sequence current, three-phase voltage, zero sequence voltage, frequency, active power, reactive power, power factor, and electrical energy (kWh/kvarh). Support demand value calculation. Supports pulse counting input (7 pulse counting input ports). Display electrical quantity information as a single value. Measurement accuracy: Current/voltage ± 0.5%, thermal overload ± 2%.
Fault recording
Built in interference recorder (fault recording module), with a recording time of up to 80 seconds, triggered by one or more internal or external signals. It can record four analog channels and up to eight user selectable switch channels, with adjustable sampling rate. Non volatile storage can store up to 100 event codes with time stamps, setting values, waveform data, waveform data of the last five events with time stamps, automatic reclosing times, and protection start/trip times.
I/O Configuration (REF610 Basic Type)
Analog input: 4 precise current inputs (rated 1A/5A, software optional), supporting 3 voltage inputs (63/110V optional).
Digital input: 2 electrically isolated switch inputs (expandable to 5), with a current consumption of 2-18mA.
Digital output: 8 programmable normally open NO trip relays+1 self-monitoring output relay, a total of 9 outlet relays. The output contact function can be freely configured as needed, with a minimum pulse length of 40 or 80 ms, and the power output contact can be configured as locked.
All channels are provided with electrical isolation, which can effectively suppress common mode spike interference of the frequency converter.
The CT ratio (M80/M83) only affects the measurement value and waveform data, and the protection function operates independently without being affected by CT ratio parameters.
[Communication Interface]
Dual Ethernet ports: RJ45+optional fiber optic, supporting redundant ring topology, providing IEC 61850-8-1 GOOSE peer-to-peer tripping and MMS SCADA integration.
Supported protocols: IEC 61850 2nd edition, Modbus TCP/RTU (RTU and ASCII modes), DNP 3.0, SPA bus protocol, LON bus protocol IEC 60870-5-103。
RS-485 serial port: Rear panel, supports Modbus RTU.
IRIG-B time synchronization interface ensures precise alignment of all station events.
Front panel communication: USB-B (mini)+infrared wireless+128 × 64 pixel LCD display with backlight+8 programmable LEDs+navigation buttons.
[Physical Specifications]
Dimensions: 144 mm x 160 mm x 205 mm (height x width x depth), net weight approximately 2.5 kg.
Installation method: 35mm DIN rail, panel installation, plug-in design, compatible with standard switchgear openings. The plug-in design facilitates the debugging of switchgear and allows for quick and safe insertion and removal of relay plugs.
Front panel protection level: IP54 (rear panel IP20), suitable for flushing environment.
Working temperature range: -25 ° C to+70 ° C, storage temperature -40 ° C to+85 ° C.
Auxiliary power supply: 24/48/110 VDC (± 20% adaptive), typical power consumption ≤ 5W.
Fanless design, no electrolytic capacitors, no moving parts, normal coating coated board, maintenance free long-term operation.
[Human Computer Interface]
Fixed graphic LCD display screen, 128 × 64 pixels, with white backlight (adjustable brightness).
Input method: resistive film keyboard+navigation buttons.
Indicator lights: 3 x LEDs (RUN/ERROR/COMM status)+8 programmable alarm LEDs.
Support MIMIC screen, event record query, measurement value viewing, and on-site parameter modification.
Support password grading protection (main setting password+communication password).
Programming and Configuration
Use ABB PCM600 (Protection Configuration Tool) for protection setting, PLC logic editing, and MIMIC screen configuration. Support offline simulation verification, and confirm the correctness of protection settings and logic before powering on. Supports programming in the IEC 61131-3 standard functional block language. Function block naming options: ANSI device number, IEC symbol, or ABB naming.
Self diagnosis and predictive maintenance
The device continuously self monitors internal faults, CT saturation, and configuration drift, and reports its health status directly to the control center. Record contact thermal stress, circuit breaker wear cycle, and VT/CT integrity to provide data support for predictive maintenance. Continuously self check the internal electronic components and software operation of the relay, and automatically lock all protection and output contacts in case of internal faults.
[Typical Application]
Medium voltage feeder protection: feeder overcurrent, grounding, and reclosing protection for 10kV-35kV radial or ring network distribution systems.
Protection and control of capacitor banks: switching control and unbalanced protection of reactive power compensation parallel capacitor banks.
Motor protection: Start monitoring, thermal overload, and locked rotor protection for medium-sized three-phase asynchronous motors.
Substation automation: Integration of compartment protection, measurement, control, and communication, replacing multiple independent devices.
Marine and nearshore environment: Certified by DNV, suitable for offshore platforms, ships, and other scenarios.
Industrial scenarios such as refineries, water supply companies, and mines: To prevent the spread of faults, issue IEC 61850 GOOSE messages to the 800xA operation station.
Comparison with the same series
REF610C11LCLR: 60Hz feeder protection relay, basic level (Basic), 4-channel current input+3-channel voltage input, 8 outlet relays, suitable for incoming and outgoing cabinets (this product).
REF615C11LCLR: feeder protection measurement and control device, developed based on the IEC 61850 platform, supports GOOSE horizontal communication, and has stronger functions.
REF620C11LCLR: High end feeder protection with added distance protection (21) and differential protection (87L) functions.
REF630C11LCLR: The highest end feeder protection, complete distance+differential+direction protection.
REM610C11LCLR: Pure motor protection relay, omitting VT input, focusing on motor protection.
REX610C11LLR: Universal platform, same hardware, all functions unlocked through code authorization.
REU610C11LCLR: Voltage protection relay, together with REF610/REM610, forms a complete distribution automation protection product line.
The four have the same electrical core, compatible software, and can be selected as needed. Hardware versions 115/118/127/129/133 are electrically compatible and firmware can be upgraded.
Certification and Standards
Compliant with IEC 60255, IEC 61000 series electromagnetic compatibility standards, IEC 61850, CE, cULus, UL 508, DNV marine certification. Complete KEMA type testing. HS code 853701190. Origin Switzerland.
