ABB PP845A 3BSE042235R2 | Panel 800 Touch Screen Operator Panel
Product Introduction
When a main operator terminal on a power plant boiler control skid or chemical processing skid suffers a backlight failure or touchscreen lockup, operators lose critical process visibility instantly. The ABB PP845A (3BSE042235R2) is not a generic commercial display terminal; it is a high-performance Panel 800 operator interface engineered specifically for native integration into ABB System 800xA and Compact Control Builder environments. Attempting to substitute consumer-grade screens or uncertified third-party panels into industrial DCS networks causes severe communication driver mismatches and lost alarm logging—making this exact panel model vital for process safety and continuity.
Operating inside harsh industrial control rooms and field cabinets requires hardware designed for high thermal endurance and immunity to electrical noise. The PP845A features a high-brightness 7-inch TFT color display paired with a rugged IP66-rated front membrane that resists oil, chemical splatter, and washdown spray. Dual onboard Ethernet ports enable redundant network architectures, keeping process graphics updating smoothly—though you must always ensure correct 24VDC supply voltage polarity and shield grounding to prevent signal corruption on long serial communication runs.

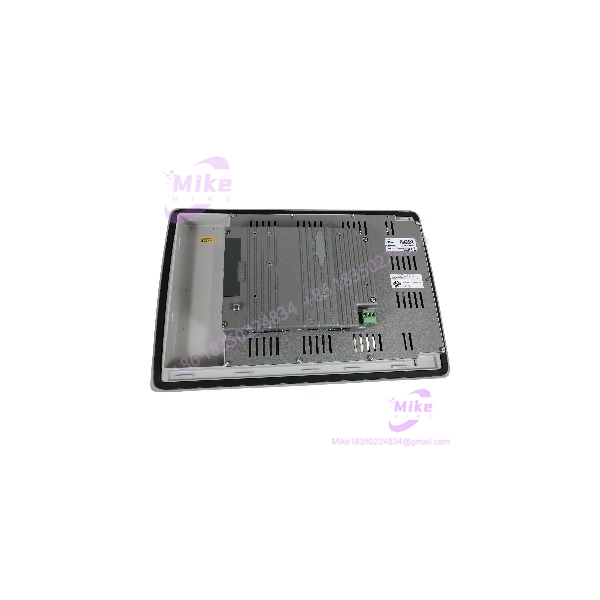

PP845A 3BSE042235R2
Key Technical Specifications
- Model Identifier: PP845A (ABB Order Code: 3BSE042235R2)
- Product Line: ABB Panel 800 Series
- Display Specifications: 7.0-inch TFT color LCD display, 800 x 480 pixel resolution (16:9 widescreen), LED backlight
- Touchscreen Technology: Analog resistive touch membrane
- Processor & Memory: High-performance ARM processor, 128 MB application memory / flash storage
- Operating Supply Voltage: 24 V DC (18 to 32 V DC operating range)
- Power Consumption: Approx. 12 W (0.5 A at 24 V DC)
- Onboard Communication Interfaces: 2 x Ethernet 10/100 Mbit/s (RJ45), 1 x RS232 (DB9), 1 x RS422/RS485 (DB9), 2 x USB 2.0 host ports
- Front Panel Protection Rating: IP66 / NEMA 4X / NEMA 12 (when flush-mounted with rubber sealing gasket)
- Operating Temperature Envelope: 0°C to +50°C (32°F to 122°F)
- Storage Temperature Envelope: -20°C to +70°C (-4°F to +158°F)
- Relative Humidity Range: 5% to 85% non-condensing operating environment
Application Scenarios & Pain Points
A municipal wastewater treatment facility in Pennsylvania experienced recurring operator terminal lockups whenever high ambient temperatures inside an outdoor pump panel caused thermal drift on an aging display card. Replacing the failing unit with a tested ABB PP845A 3BSE042235R2 restored stable graphic rendering and responsive touch controls, recovering 24/7 remote monitoring of critical lift pumps.
With vs. Without Dedicated ABB Panel 800 Terminals:
- Without the PP845A 3BSE042235R2: Generic third-party HMIs require complex custom Modbus mapping, lack native ABB alarm handling, and introduce latency when loading dense process graphic displays.
- With the PP845A 3BSE042235R2: Direct tag integration with AC 800M controllers simplifies engineering in Compact Control Builder, allowing fast faceplate loading and seamless trend logging.
Petrochemical Processing & Power Generation Skids:
- Condition: Continuous 24/7 multi-shift operations in electrically noisy, high-vibration control environments.
- Impact: Voltage spikes and screen degradation cause uncoordinated operator input and lost historical trend data.
- Solution: Deploying the rugged PP845A 3BSE042235R2 guarantees fast boot times, clear process visualization, and reliable alarm event recording.
QA & Live Testing SOP (Trust Signal)
Every ABB PP845A 3BSE042235R2 operator panel entering our shop goes through an unyielding, multi-point inspection protocol. We start with a full microscopic evaluation of the front touch membrane, screen matrix, rear terminal blocks, housing clips, and Ethernet ports to confirm zero physical cracking, seal breakdown, or contact pin oxidation. Next, the unit is mounted on a test rig and powered with a regulated 24VDC supply—we measure internal voltage rail stability using a calibrated Fluke digital multimeter.
During live functional testing, we load sample project files using Panel Builder 800 software, checking touch-grid calibration, LED backlight uniformity, USB file transfers, and dual Ethernet communication throughput connected to an AC 800M controller. We execute a 24-hour thermal burn-in run under continuous display cycling to confirm zero screen flicker, memory leaks, or runtime lockups. Once cleared, the module is wiped clean, fitted with a protective screen overlay film, and vacuum-sealed in ESD protective packaging with custom foam cushioning.
Field Engineer’s Pitfall Guide
❗ GOTCHA #1: Sealing Gasket Placement & Cutout Tolerances Do not reuse an old, compressed foam gasket when installing a replacement PP845A panel into an existing cabinet cutout. Always install a fresh rubber sealing ring and tighten rear mounting brackets evenly to avoid twisting the aluminum chassis, which can cause touch membrane dead zones or compromise the IP66 water seal.
❗ GOTCHA #2: USB Project Firmware Matching When transferring panel projects via a USB flash drive, ensure the project runtime version compiled in Panel Builder 800 matches the installed image version on the PP845A bootloader. Downloading mismatched runtime builds can cause the panel to loop continuously on boot or disable touch response.
❗ GOTCHA #3: Isolated Power Supply Wiring Avoid powering the PP845A from the same unconditioned 24VDC circuit that feeds heavy inductive relays, contactor coils, or solenoid valves. Inductive switching spikes can propagate into the panel’s internal power supply board, triggering sudden reboots and corrupting historical log files.
Intent-Driven FAQ
What is the primary function of the ABB PP845A 3BSE042235R2?
The PP845A (3BSE042235R2) is a 7-inch touch-screen operator panel from ABB’s Panel 800 family designed for process visualization, operator control, alarm management, and trending in ABB automation system environments.
Which programming software is used to configure the PP845A?
Configuration, screen graphic design, and tag mapping for the PP845A are performed using ABB Panel Builder 800 engineering software.
What is the difference between part numbers PP845 and PP845A?
The “A” revision (PP845A / 3BSE042235R2) represents an updated hardware platform featuring an upgraded processor, enhanced display backlighting, and updated memory components compared to the original legacy PP845 model, while maintaining functional backwards compatibility.
Can I run dual Ethernet ports on different IP subnets?
Yes. The two onboard RJ45 Ethernet ports can be configured with separate IP addresses to bridge control network traffic between an isolated AC 800M controller subnet and an upper-level plant management network.
