Description

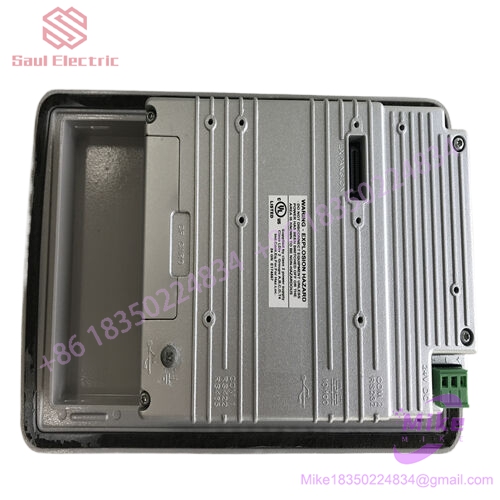

ABB PP836A 3BSE042237R2 HMI Touch Screen
ABB PP836A 3BSE042237R2 HMI Touch Screen Operator Panel
[Product Positioning]
PP836A 3BSE042237R2 is a 6.5-inch color touch screen operator panel in the ABB Panel 800 series, belonging to the human-machine interface (HMI) terminal device of ABB 800xA automation system. It is an upgraded version (StepUp/Exchange) of PP836 (3BSE042237R1), used for real-time interaction between operators and control systems such as AC800M and SD series, realizing process monitoring, parameter setting, alarm management, and control operations.
ABB PP836A 3BSE042237R2 HMI Touch Screen
Display and Interaction
The screen size is 6.5-inch TFT color LCD display screen, with a resolution of 640 × 480 pixels, supporting 16 bit true color display, and can present graphics, animations, trend charts, and text information. Adopting resistive touch screen technology, it supports finger and glove operation, and can be clearly identified under various lighting conditions. High brightness and high contrast design, suitable for industrial field environments.
[Communication Interface]
Equipped with Ethernet (RJ45) interface and serial port (RS-232/RS-485), supporting mainstream industrial communication protocols such as Modbus TCP and Modbus RTU. It can communicate data with AC800M series controllers (such as PM860, PM891, PM902F, etc.), SD series controllers (SPC800 series), and other field devices, and supports OPC interconnection with third-party SCADA software.
[Physical Specifications]
Dimensions: Width approximately 200 mm x height approximately 150 mm x depth approximately 80 mm, net weight approximately 1.88 kg. Hole size approximately 128.2 mm x 86 mm x 38.7 mm. Protection level IP65 (when correctly installed on the control cabinet), can be directly installed inside the control cabinet without the need for an additional casing. The working temperature range is -10 ° C to+60 ° C, and the storage temperature range is -40 ° C to+85 ° C. It is installed using DIN rail.
Power Supply and Certification
The working power supply is 24 V DC, and it also supports 12 V DC/24 V AC power supply options. HS code 84714100. Compliant with IEC 61131 standards and ABB 800xA system specifications, certified by CE, cULus, etc. Compliant with RoHS directive.
[Functional Features]
Support functions such as alarm management, real-time trend charts, recipe management, and user permission grading. Up to 50 four line alarm messages can be provided, with a maximum of 32 characters per line. Supports 10 menu languages and related character sets. Built in visualization function, capable of displaying Ticker text, bar charts, I/O status switching, and more. Equipped with 6 standard function keys and 4 additional function input buttons, supporting direct input into program code. Screen configuration and program download can be performed through ABB 800xA system software (Control Builder M/Compact Control Builder).
Typical application areas
Widely used in industrial automation scenarios that require local human-machine interaction, such as manufacturing line monitoring, petrochemical process control, power generation and distribution, water/wastewater treatment, pulp and paper, cement building materials, metallurgy, and district heating. It is usually used in conjunction with AC800M series controllers (PM860, PM891, PM902F, etc.) and SD series controllers.
