ABB PP835A 3BSE042234R2 Operator Panel
[Product Positioning]
PP835A 3BSE042234R2 is a 6.5-inch color touch screen operator panel in the ABB Panel 800 series. It is a human-machine interface (HMI) terminal device of the ABB 800xA automation system, used for real-time interaction between operators and control systems, achieving process monitoring, parameter setting, alarm management, and control operations.

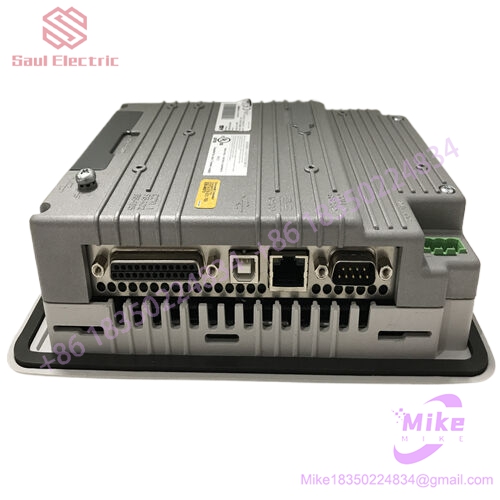

ABB PP835A Operator Panel 3BSE042234R2
Display and Interaction
The screen size is 6.5-inch TFT color LCD display screen, with a resolution of 640 × 480 pixels, supporting 16 bit true color display, and can present rich graphics, animations, and text information. Adopting multi touch technology, it supports finger and glove operation, and can be clearly recognized under various lighting conditions. High brightness and high contrast design, suitable for industrial field environments.
[Communication Interface]
Equipped with RS-232 serial port, RS-485 serial port, and Ethernet (RJ45) interface, it can communicate data with AC800M controllers (such as PM860, PM891, etc.), PLCs, and other field devices. Supports mainstream industrial protocols such as Modbus RTU/TCP for easy system integration.
[Physical Specifications]
Dimensions: Width 180 mm, height 270 mm, depth 76.5 mm, net weight approximately 1.48 kg. Protection level IP20, can be directly installed inside the control cabinet without the need for an additional casing. The working temperature range is 0 ° C to+50 ° C. It adopts DIN rail installation method, and the front panel can be equipped with RX835 touch protection cover (exchange part number EXC3BSE042234R2) to prevent accidental contact and dust intrusion.
Power Supply and Certification
The working power supply is 24V DC. HS code 84714100 (automatic data processing machine and its components). Compliant with IEC 61131 standards and ABB 800xA system specifications. Certified by CE, cULus, etc.
[Functional Features]
Support functions such as alarm management, real-time trend charts, recipe management, and user permission grading. Screen configuration and program download can be performed through ABB 800xA system software (Control Builder M/Compact Control Builder). As an open HMI platform, it supports interconnection with third-party SCADA software through OPC and other methods.
Typical application areas
Widely used in industrial automation scenarios that require local human-machine interaction, such as manufacturing line monitoring, petrochemical process control, power generation and distribution, water/wastewater treatment, pulp and paper, cement building materials, building automation, etc., it is usually used in conjunction with AC800M series controllers (PM860, PM891, PM902F, etc.).
