ABB PFEA112-65 | 3BSE050092R65 Pressductor Controller Replacement
Architect’s Product Breakdown

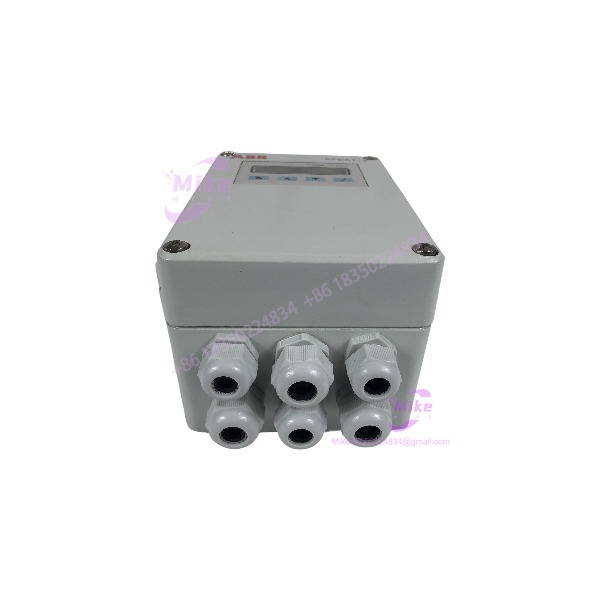

The ABB PFEA112-65 (3BSE050092R65) functions as a specialized, high-precision web tension electronics unit within the ABB Millmate Pressductor product portfolio. Designed specifically for demanding processing environments—such as paper mills, steel processing plants, plastic film lines, and high-speed converting machinery—this signal processing model interfaces directly with ABB magneto-elastic Pressductor load cells. By processing two independent load cell channels, the unit calculates total web tension, differential web tension, and individual side forces in real time.
Enclosed in a ruggedized IP65-rated housing, this specific model is engineered for direct field installation near process machinery without requiring an auxiliary protective electrical cabinet. It features a built-in display screen and tactile keypad for localized calibration, gain adjustment, zero-setting, and fault diagnostics. The unit converts raw force sensor signals into noise-immune analog outputs (0–10 V or 4–20 mA) or digital network data, providing continuous closed-loop feedback to primary line speed PLCs and tension control drives.
PFEA112-65
Key Technical Specifications
- Manufacturer: ABB Process Automation
- Product Category: Web Tension Signal Electronics / Load Cell Controller
- Part Number / Ordering No.: PFEA112-65 (3BSE050092R65)
- Compatible Load Cells: ABB Pressductor Radial / Pillow Block Load Cells (PFTL, PFCL series)
- Degree of Protection: IP65 (NEMA 4 equivalent), dust-tight and water-jet protected
- Supply Voltage: 24 VDC nominal (18 to 36 VDC allowable range)
- Power Consumption: Approximately 8 W
- Signal Inputs: 2 independent Pressductor load cell input channels
- Outputs: Multi-range configurable analog outputs (0 to 10 V, \pm 10 V, 0 to 20 mA, 4 to 20 mA)
- Operator Interface: Built-in display screen and membrane keypad for field calibration
- Operating Temperature Range: -10°C to +55°C
- Weight: Approximately 1.8 kg (3.97 lbs)
Field Engineer’s Pitfall Guide (Unique Value)
- Incorrect Load Cell Cable Shield Grounding: Connecting Pressductor load cell excitation and signal leads using unshielded or improperly grounded cabling introduces extreme electromagnetic interference from surrounding variable frequency drives (VFDs). Always use dedicated ABB shielded cables and bond the shield at a single defined ground point to avoid tension display jumpiness.
- Mismatched Wrap Angle and Roll Mass Calibration: Failing to accurately program the roll dead weight, wrap angles (\alpha, \beta), and load cell force direction angles during commissioning will lead to erroneous tension calculations, resulting in web breaks or loose winding during speed acceleration.
- Opening Field Cover Under Active Power in Wet Areas: While the unit maintains an IP65 sealing rating when closed, opening the front enclosure cover in high-humidity or washdown environments risks introducing condensation directly onto the high-impedance signal amplifier board, degrading measurement accuracy.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo detailed inspection to confirm clean terminal blocks, intact IP65 door gaskets, undamaged LCD display glass, unblemished membrane keypad keys, and authentic ABB serial labels.
- Live Bench Power & Signal Calibration Test: Modules are mounted on a dedicated bench rig supplied with 24 VDC power. Technicians verify boot sequences, LCD backlight operation, and navigate menu calibration parameter structures.
- Load Cell Simulator & Analog Loop Diagnostics: Using precision signal generators simulating Pressductor sensor bridge outputs, technicians verify output linearity across 0–10 V and 4–20 mA ranges, confirming channel zeroing, gain response, and relay alarm actuation.
- Anti-Static Packaging: Post-testing units are sealed in multi-layer ESD shielding bags, wrapped in shock-absorbing protective foam, and boxed securely for transit.
Technical FAQ
What is the difference between the ABB PFEA111, PFEA112, and PFEA113 variants?
The PFEA111 is a basic single/dual load cell processing unit. The PFEA112 offers expanded functionality, including individual side force display, differential tension calculations, and fieldbus options. The PFEA113 is a high-end panel-mount controller with enhanced fieldbus communication capabilities.
What does the “-65” suffix designate on this model?
The “-65” suffix specifically denotes the IP65-rated environmental enclosure, designed for harsh field environments requiring protection against dust ingress and low-pressure water jets.
Can I calibrate this unit directly on the plant floor without a computer?
Yes. This model includes an integrated front panel display and tactile keypad that allow field engineers to set load cell parameters, wrap angles, zero points, and full-scale engineering units directly on site.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed web tension control modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard operating conditions.
