ABB PP885 3BSE069276R1 Panel 800 Version 6 High Performance Operation Panel HMI Touch Screen
[Product Positioning]
PP885 3BSE069276R1 is a high-performance 15.4-inch color touch screen operation panel in the ABB Panel 800 Version 6 series. It is a flagship HMI terminal device in this series and is ranked alongside PP882 as the two most powerful panels in the V6 version. Targeting industrial automation applications that require extremely high display area, processing speed, and communication capabilities for large-scale complex process control, SCADA monitoring, and multi system integration.
Display and Interaction
The screen size is a 15.4-inch TFT-LCD color LCD display with a resolution of 1280 × 800 (WXGA), supporting 262000 colors (64K colors) display, and can present delicate graphics, animations, trend charts, and text information. Adopting resistive touch screen technology, supporting finger and glove operation. High brightness LED edge backlight array with a backlight lifespan of 50000 hours. Support multi language switching (English, German, French, Spanish, Italian, Simplified Chinese, Traditional Chinese, etc.) to meet the needs of operators in different regions.

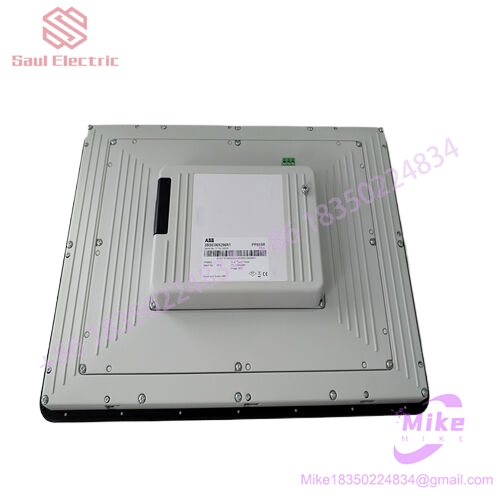

ABB Panel 800 PP885 3BSE069276R1
Processor and Performance
Equipped with Intel Atom E640 processor, with a clock speed of 1.0GHz and a fanless design. The memory configuration is 1GB DDR2 RAM+4GB SLC flash memory, with an onboard SDHC card slot (supporting ≤ 2GB memory cards) for application and data backup. The system startup time is less than 8 seconds. It can handle up to 3000 communication tags and more than 10 driver interfaces, supporting up to 50 four line alarm messages (up to 32 characters per line), suitable for complex scenarios such as centralized control of large chemical plants.
[Communication Interface]
Equipped with 2 10/100/1000BASE-T Ethernet RJ45 ports (supporting dual network redundancy configuration, can connect control network and management network separately), 1 RS-232 serial port, 1 RS-422/485 serial port, and 3 USB 2.0 ports (supporting USB loading projects, peripheral connections, etc.). Supports mainstream industrial communication protocols such as Modbus TCP/RTU, Profibus DP, EtherNet/IP, OPC UA/DA/HDA/AE, and can seamlessly integrate with AC800M series controllers (PM860, PM891, PM902F, etc.), SD series controllers (SPC800 series), and third-party PLCs. It also supports interconnection with third-party SCADA software as an OPC client.
[Physical Specifications]
Front panel dimensions: width 410 mm x height 286 mm x depth 83 mm, installation opening dimensions 410 mm x 286 mm, installation depth 76 mm (including 100 mm cable bending radius). Net weight is about 4.5 kg. The front panel has a protection level of IP66 (the rear panel has an IP20 rating, reaching NEMA 4X), which can effectively prevent dust and water, and adapt to high-pressure flushing environments. Adopting aluminum magnesium alloy front panel frame and fanless design. The working temperature range is -30 ° C to+70 ° C (UL certified range is -30 ° C to+65 ° C), and the storage temperature is -40 ° C to+85 ° C. It is installed using DIN rail.
Power Supply and Certification
The working power supply is 24V DC (10-32V DC), with a maximum power consumption of about 28W, equipped with a 5A slow burning fuse (cold start impulse power can reach 32W, lasting 200ms). Passed certifications such as CE, cULus, UL 61010-2-201, DNV, IEC 61131-2, RoHS, etc. HS code 84714100. Compliant with the IEC 61000 series electromagnetic compatibility standards.
Programming and Configuration
Use ABB Panel Builder 800 software for screen configuration and program download, seamlessly integrated with ABB 800xA system (Control Builder M/Compact Control Builder), supporting unified project management. Built in web server, supports remote monitoring. Support alarm management, real-time trend charts, recipe management, user permission grading, Excel based report functions, etc. Support offline simulation, allowing applications to run before use. The panel has built-in visualization functions that can display Ticker text, bar charts, I/O status switches, and more.
Typical application areas
Widely used in industrial automation scenarios such as oil and gas, thermal power generation and new energy, chemical process control, water/wastewater treatment, pulp and paper, cement building materials, metallurgy, mining, ships, etc. that require large screen high reliability HMI, especially suitable for large-scale process control systems that require simultaneous display of split screen alarm and trend views, multi system integration, and high-performance data processing. It is usually used in conjunction with AC800M series controllers and SD series controllers, and can also be deployed as the main HMI or slave HMI.
