Description
NGPS-12C (material number 3BHL000764P0001) is a dedicated power board in the ABB ACS 600/ACS 6×7 series inverter MultiDrive system. Its full name is Gate Driver Power Supply Board, and its core function is to provide stable low-voltage DC power for the IGBT gate drive circuit of the inverter, while also serving as the execution hardware for the “Prevention of Unexpected Start” safety function.
core positioning
The module itself does not execute control algorithms, nor does it directly drive the motor. It converts external AC power (100-240V AC) into stable 12V DC, specifically for use in IGBT gate driver boards, ensuring reliable switching signals for power modules. At the same time, it is a key execution node of the safety circuit – when the operator activates the “prevent accidental start” function, the power supply of the board is cut off by the hardware level, forcing the frequency converter to stop outputting, meeting the safety level requirements of SIL3/PLE and other functions.

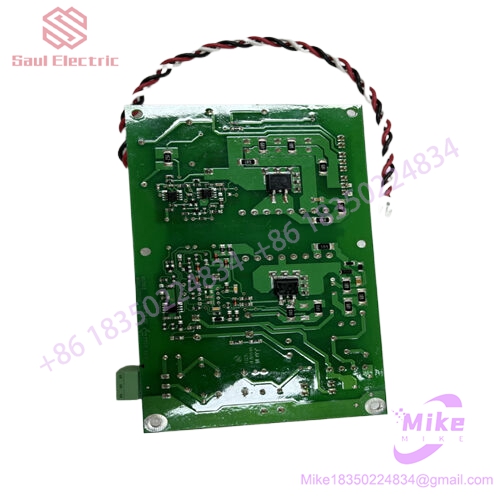

ABB NGPS-12C Power Supply Board
Electrical parameters
Input voltage: 100-240V AC (50/60Hz), also supports equivalent DC input range
Output voltage: 12V DC
Output current: approximately 2-5A (depending on specific application configuration)
Frequency range: 50/60Hz
Conversion efficiency: High efficiency design, reducing energy loss
Protection mechanism: overload protection, short circuit protection, overvoltage protection, triple protection to ensure safe operation
Cooling method: natural convection heat dissipation, fanless design
Working temperature: 0 ° C to+55 ° C
Storage temperature: -40 ° C to+85 ° C
Protection level: IP20
Installation method: DIN rail or panel installation
Physical dimensions: 135mm × 186mm × 119mm
Weight: Approximately 0.46kg
The working logic of preventing accidental activation function
This is the core security value of the module. The workflow is as follows: the operator presses the “prevent accidental start” switch on the console → the NINT board detects the safety input signal → the 230/115V AC power supply circuit of NGPS-12C is cut off by hardware → the IGBT gate drive loses power → the inverter immediately stops PWM output → the motor enters a coasting state → the system simultaneously triggers the “START INHIBIT” alarm signal. The entire process is executed at the hardware level and does not rely on software logic. Even if the controller crashes, it can ensure that the motor will not restart unexpectedly.
Interaction with the system
In the ACS 600 firmware, the status of the board is fed back to the controller through signal 8.02 AUX STATION: bit B8 is the STARTINNHIBITION bit, a value of 1 indicates that the 230/115V AC circuit of NGPS xx has been disconnected (safe active state), and a value of 0 indicates that the circuit is closed normally. Parameter 10.08 START INHIB DI is used to set the shielding mask for this signal, in order to avoid frequent actions of the safety circuit causing the alarm log to be filled. Parameter 31.02 START INHIBITION is used to configure the relevant fault recording behavior.
Diagnosis and maintenance
The onboard LED indicator lights display real-time power status, fault status, and safety circuit status, making it easy to quickly locate problems on site. Supports hot swapping and can be replaced while the inverter rack is powered on, without interrupting system operation. Automatically detect the electrical ID of the module when powered on, and refuse to enter the running state when it does not match the system configuration, to prevent safety function failure caused by mismatching.
Typical application scenarios
Mainly used for the safety shutdown circuit of ACS 600/ACS 6×7 series frequency converters (power range from several hundred watts to several megawatts). This module is an irreplaceable hardware node in the functional safety circuit for fans and pumps in the power industry, compressors and mixers in the petrochemical industry, rolling mills and cranes in the metallurgical industry, and any occasion where maintenance personnel need to ensure that the motor will never start accidentally during on-site operations. It is also compatible with the same safety architecture of ACS 800 series frequency converters (corresponding model AGPS-21C).
