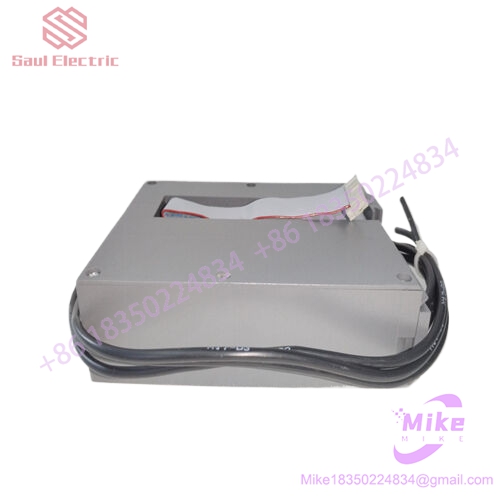

ABB MCU2A02V24
ABB MCU2A02V24 Product Introduction
One sentence positioning: This is a compact programmable logic controller (PLC) under the ABB System 800xA platform, which has motor control capabilities, integrates digital and analog I/O, and is suitable for logic control and motor drive scenarios in industrial automation.
Product type: Compact PLC/Motor Control Unit
Series: ABB Ability System 800xA/AC500 Eco
Main model: MCU2A02V24
ABB MCU2A02V24
Core hardware:
Processor: 32-bit RISC CPU
Program memory: 512 KB Flash
Data memory: 128 KB RAM
I/O configuration: 24 digital input/output points+8 analog input/output channels
Communication interface:
RS-232 serial port
RS-485 serial port
Ethernet port
Supports industrial standard communication protocols such as Modbus
Motor control function:
Accurate motor control is achieved through a control board (with DSP/FPGA as the main control chip) and driver board architecture
Support parameter settings such as direction, speed, angle, response time, etc
Inverter drives IGBT power module to convert DC power into three-phase AC power to drive motor
Built in core components of the control board such as rotary converter circuit, sampling circuit, CAN network, etc
Support high-precision speed control without speed sensors (synchronous motor with no slip characteristic)
Electrical and physical parameters:
Working temperature: -20 ° C to+60 ° C
Protection level: IP65
Size: 80mm × 80mm × 40mm
Weight: Approximately 0.3kg
Installation method: Compact embedded installation
Typical application scenarios:
Integrated solution of logic control and motor drive in industrial automation production line
Scenarios such as electric vehicles and robots that require precise motor control
Multi loop I/O acquisition and execution control in process control
Small and medium-sized automation systems that require simultaneous processing of logical operations and motor drives
Current status: This model belongs to the ABB System 800xA/AC500 series spare parts and is currently circulating in inventory on the market. If necessary, it is recommended to confirm compatibility with existing 800xA or AC500 systems and refer to the physical nameplate data of the module.
