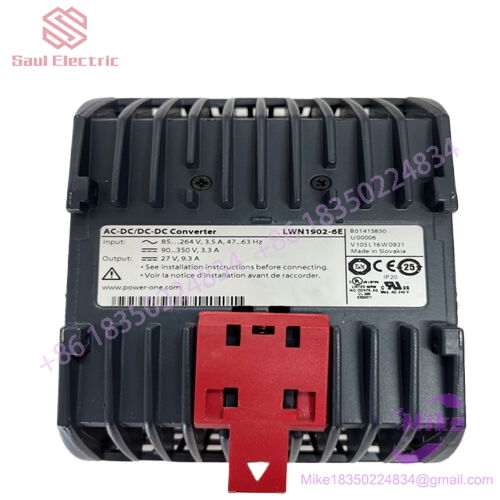

Product Name: ABB LWN1902-6E 3BHL000986P7001 Power Module/Programming Logic Module
Brand: ABB
Series: ABB LWN/LXN series industrial power module, compatible with AC 800M/S800/S600/S100 DCS control system and UNITROL excitation system
Product type: Industrial grade DC power module, with both power supply and logic control functions
ABB LWN1902-6E 3BHL000986P7001 power supply
Core function: As the on-site power supply and logic control node in ABB distributed control system, it provides stable 24V DC working power supply for on-site I/O modules, controllers, communication interfaces and other equipment. On the other hand, it has built-in programmable logic function, which can independently perform simple control logic, signal acquisition and processing tasks, reducing the burden on the main control station. Undertake control circuit power supply and state logic management in the excitation system.
Key Features:
Wide voltage input: 100-240V AC, suitable for different on-site power environments
Overcurrent protection: Built in overcurrent protection circuit to prevent damage to power supply and load
Adjustable output voltage: supports adjusting output according to load requirements, with strong flexibility
DIN rail installation: 35mm standard rail installation for easy layout inside the cabinet
Communication interface: supports communication with the upper controller to achieve remote monitoring
Onboard LED indicator lights: power status, communication status, and fault status are clear at a glance
Electrical parameters:
Input voltage: 100-240V AC (wide range)
Output voltage: 24V DC (adjustable)
Power consumption: less than 5W
Protection functions: overcurrent protection, short circuit protection
Communication: Supports Module Bus fiber/bus communication
Physical parameters:
Size: Approximately 142mm x 71mm x 145.5mm (width x height x depth)
Weight: Approximately 0.84kg
Installation method: 35mm DIN rail installation
Protection level: IP20 (module level)
Working temperature: -25 ° C to+70 ° C
Storage temperature: -40 ° C to+85 ° C
Related models in the same series:
3BHL000986P7000 (LXN1604-6): Same series standard version, 160W output
3BHL000986P7002 (LWN2660-6E): Same series high-power version, 266W output
3BHE013299R0002 (LTC743CE02): Same system 24V power supply/fiber optic communication module
3BHE014185R0001 (UUD148AE01): The same system programmable controller can be used in conjunction with this power module
3BHE024747R0101 (GDC801A): Crowbar protection board, installed in the same cabinet as this module
3BHE051592R0101 (GDC801B101): Digital I/O module, installed in the same cabinet as this module
Typical application scenarios:
ABB AC 800M/S800 DCS system: on-site I/O node power supply and logic control
ABB UNITOL 5000/6000 Static Excitation System: Control Circuit Power Supply
Industrial automation production line: decentralized nodes requiring independent power supply and simple logic control
Power plant DCS control: on-site power supply for turbine and boiler auxiliary systems
