ABB GDC801B102 3BHE051592R0102
Introduction to ABB GDC801B102 3BHE051592R0102 Static Excitation/Pry Rod Module
ABB GDC801B102 3BHE051592R0102 is a static excitation controller and pry bar protection module in ABB’s power automation product line. Its core function is to prevent small and medium-sized generators and synchronous motors from losing synchronization in the event of grid faults. It is not only the “nerve center” of the excitation system, but also the “last line of defense against loss of step” of the unit, which cannot be replaced in isolated power systems.
core positioning
The module itself is not directly connected to the main circuit of the generator, but receives signals from the voltage transformer (PT) and current transformer (CT). After internal algorithm calculation, it drives the IGBT H-bridge to supply power to the excitation machine magnetic field, while monitoring the rotor angle in real time. Once the risk of stepping out is detected, it immediately triggers the pry bar protection. Unlike traditional analog AVR, it is a fully digital controller that does not require annual calibration. Parameters are stored on a removable SD card, and spare units can be cloned upon insertion. The downtime can be compressed to less than one minute.

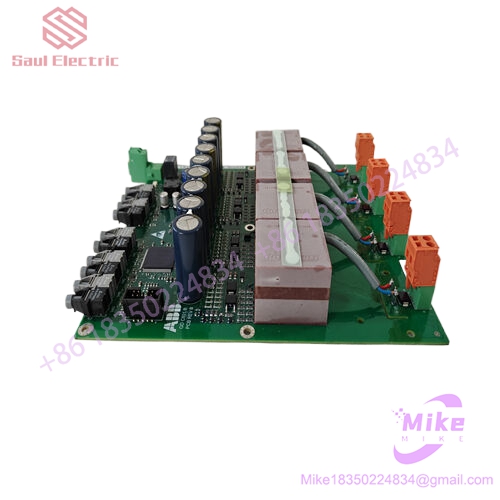

ABB GDC801B102 3BHE051592R0102
Basic Parameters
Material Number: GDC801B102/3BHE051592R0102
Model: GDC801B102
Type: Static excitation controller/pry bar protection module
Input voltage: 90-260V AC/DC (universal power supply, can work with 110Vdc or 230Vac)
Processor: 32-bit DSP, calculates PID, under excitation limit, and volt/hertz curve every 250 µ s
Power output: 15A IGBT H-bridge driven excitation machine magnetic field
Analog input: 2 channels (reading PT voltage and CT current signals)
Digital I/O: 16 o’clock (handling startup interlock, on-site circuit breaker status, pry bar fire pulse, etc.)
Communication interface: Dual RS-485+Ethernet, supporting Modbus RTU/TCP, IEC 61850, CAN, DNP3
Display: Onboard 160 × 128 pixel TFT color screen, supports English/Spanish/Chinese, real-time display of If, Vt, P bar charts
Working temperature: -25 ° C to+70 ° C (supports cold start)
Protection level: IP20, installed inside the control cabinet
Installation method: DIN rail (7.5mm), compatible with AC 800PEC or Symphony Plus rack
Dimensions: 142mm × 71mm × 145.5mm
Weight: 0.84kg
Compliant with standards: CE, RoHS, IEC 60947-2
Main functional features
Fast excitation injection: After detecting a voltage dip or phase shift, inject precise shaped current pulses into the exciter within 6 milliseconds to maintain rotor synchronization before the mechanical governor responds and avoid unit tripping. This is the essential difference from analog AVR – analog AVR usually gives up directly when facing a voltage drop of more than 20%, resulting in shutdown.
Built in pry bar logic: Real time monitoring of rotor angle, triggering controlled resistance dumping (pry bar) when the generator begins to slip magnetic poles, releasing rotor kinetic energy in the form of thermal energy, protecting the shaft system from torsional damage and the gearbox from reverse impact. In scenarios such as waste to energy plants and offshore platforms, the fine for an unplanned shutdown of a natural gas torch can reach five figures, and this feature directly avoids such losses.
High precision digital control: 0.1% voltage accuracy, drift regulation of 100ppm per ° C, which is actually zero in most computer room environments. No annual calibration is required, maintenance only requires dragging and testing the plug-in connector online every year and browsing the TFT status screen.
Wide voltage universal power supply: 90-260V AC/DC adaptive, whether the factory battery is 110Vdc or the mains power is 230Vac, the same SKU can work directly, reducing spare parts inventory.
Multi protocol native communication: Built in IEC 61850 stack, can directly connect to existing SCADA or DCS without the need for protocol converters or custom code. Simultaneously compatible with Modbus RTU/TCP and DNP3, suitable for system architectures of different owners.
Parameter cloning and quick replacement: The digital set points are stored on a removable micro SD card, and the backup unit for exchanging cards can complete parameter cloning in less than a minute, greatly reducing downtime during turbine overhaul.
Marine environmental adaptability: Optional marine approved conformal coating to prevent salt spray erosion of power electronic equipment, suitable for harsh environments such as offshore platforms.
Comparison with products in the same series
GDC801B101 (3BHE051592R0101): The previous generation product has fully compatible pins, but lacks IEC 61850 communication capability, making it suitable for retrofitting old projects that do not require IEC 61850.
GDC802B102-30: Targeting 10-15MW units with higher power levels, GDC801B102 is suitable for small and medium-sized units (usually below 5MW).
UNITROL 1020: ABB fully dual channel redundant excitation system, 100% hot spare disk, suitable for large power plants that require zero interruption, with much higher cost and volume than GDC801B102.
REx610: ABB protection relay, used in conjunction with GDC801B102, shares the same panel circuit breaker and is responsible for unit protection rather than excitation regulation.
3BHE032293R0001: Analog I/O regulator with redundant PT/CT inputs, suitable for scenarios that require analog redundancy.
GDC801B102 is irreplaceable in scenarios where “digital excitation+pry bar protection+IEC 61850 communication” is required and the unit capacity is moderate. It is the preferred solution for upgrading old analog AVRs and building new islanded power stations.
Typical application scenarios
Offshore oil platform: Operating on an isolated island with frequent fluctuations in the power grid, the pry bar function prevents the generator from losing step and causing a power outage across the entire platform.
Garbage power plant: frequent start stop and large load fluctuations, fast excitation injection to maintain synchronization, avoiding tripping every time the voltage drops.
Self owned power plant of steel plant: voltage surge caused by large motor start-up, GDC801B102 responds within 6 milliseconds to protect the generator from disconnection from the grid.
Mine owned units: In remote areas, the power grid is weak, and under excitation limits and volt/hertz curves prevent reactive power from exceeding limits.
Wastewater treatment plant/biogas power generation: excitation management for small synchronous generators, with SD card cloning function for minimal maintenance.
