Description
ABB GDC801B101 3BHE051592R0101
3BHE051592R0101 GDC801B101
Product Name: ABB GDC801B101 3BHE051592R0101 Digital I/O Module
Brand: ABB
Series: ABB ACS800/ACS6000 frequency converter and UNITOL static excitation system matching control board
Product type: 8-channel digital input/8-channel digital output module (8DI/8DO)
Core function: As the on-site signal acquisition and control execution module in ABB medium and high voltage frequency converters and excitation systems, it is responsible for collecting switch signals from external devices (such as buttons, relay contacts, limit switches, sensor status, etc.) to the main control system, and driving external actuators (such as contactors, solenoid valves, indicator lights, etc.) in the form of relay outputs based on control instructions from the main control system. This module is a pure digital I/O version in the GDC801 series, used in conjunction with the same series GDC801A (Crowbar Crowbar Protection Board) to form a complete inverter/excitation system protection and control link.

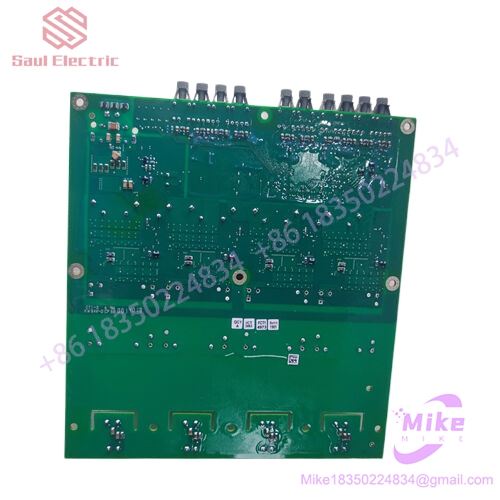

ABB GDC801B101 3BHE051592R0101
Key Features:
8-way digital input (DI), supporting dry/wet contact signal acquisition
8-way digital output (DO), relay output type, can directly drive loads
24V DC power supply, compatible with frequency converter control power supply
Onboard input signal status indicator light, convenient for on-site diagnosis
Modular DIN rail installation, supporting hot swappable replacement
Communicate with the ACS800 series inverter main control board through an internal bus without the need for additional configuration
Key electrical parameters:
Power supply voltage: 24V DC (allowable range 18V-30V DC)
Digital input: 8 channels, optional input type of dry contact/wet contact, input current ≤ 5mA
Digital output: 8 channels, relay output, contact capacity 2A/250V AC or 2A/30V DC
Response time: Input filtering delay ≤ 5ms, output relay action time ≤ 10ms
Power consumption: less than 3W
Physical parameters:
Size: Approximately 142mm x 71mm x 145.5mm (width x height x depth)
Weight: Approximately 0.84kg
Installation method: 35mm DIN rail installation
Protection level: IP20 (module level)
Working temperature: -25 ° C to+70 ° C (some data indicate -40 ° C to+85 ° C)
Storage temperature: -40 ° C to+85 ° C
Communication and Interface:
Connected to the main control board via ACS800 internal Module Bus bus, non independent communication module
Wiring terminals: 8-way DI input terminal, 8-way DO output terminal, 24V DC power terminal
Onboard LED indicator lights: power indicator, input status indicator, output status indicator
Typical application scenarios:
ABB ACS800 series medium voltage frequency converter: on/off control and status acquisition for mining crushers, steel rolling main drives, and large fan and water pumps
ABB ACS6000 series high-voltage frequency converter: on-site signal interface for boiler fans and ship propulsion systems in power plants
ABB UNITOL 5000/6000 Static Excitation System: Start stop Control, De excitation Interlocking, and Status Feedback of Generator Excitation Circuit
Industrial automation production line: requiring decentralized control of 8 DI/8 DO channels
Related models in the same series:
3BHE024747R0101 GDC801A101 (Crowbar Crowbar protection board, used in conjunction with GDC801B101)
3BHE051592R0102 GDC801B102 (GDC801B upgraded version, supports Modbus RTU/TCP and IEC 61850 protocols, with TFT display)
3BHE032293R0101 PCD235B101 (ABB PCD230 series controller, GDC801B101 can be used as its I/O expansion)
3BHB045647R0003 (excitation thyristor module, one of the power execution devices driven by GDC801B101)
3BHE037864R0107 UFC911B107 (door trigger board, installed in the same cabinet as GDC801B101)
NTAM-01/NCLM-01/NKLS11-3 (ACS800 system with I/O module, complementary to GDC801B101 function)
