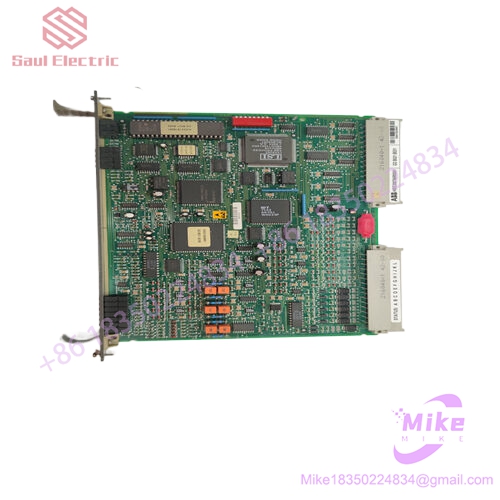

ABB GDB021BE05 HIEE300766R0005
Introduction to ABB GDB021BE05 HIEE300766R0005 Relay Output Control Module
ABB GDB021BE05 HIEE300766R0005 is a multifunctional relay output control module in ABB’s power automation product line, belonging to the GDB021BE series. Its core function is to convert digital control signals into electrical drive signals, while also taking into account synchronous control, gate management, and power distribution functions. It is a key execution unit for power plant grid connection operation, excitation system control, and industrial process equipment drive, widely used in scenarios requiring high reliability signal conversion and equipment control.
core positioning
ABB GDB021BE05 HIEE300766R0005
The module itself does not collect on-site primary side signals, nor does it directly drive high-power loads. Instead, it exists as a “signal conversion and control execution center” – receiving digital instructions from DCS controllers, synchronizers, or excitation regulators, converting them into isolated electrical output signals through internal relay groups, and driving external contactors, solenoid valves, alarm devices, and other execution mechanisms. Unlike pure digital I/O modules, the core advantage of GDB021BE05 lies in its “relay isolated output”, where each output is electrically isolated and can directly switch between AC or DC loads without the need for additional intermediate relays.
Basic Parameters
Material Number: GDB021BE05/HIEE300766R0005
Model: GDB021BE05
Series: GDB021BE Relay Output Control Module
System: ABB AC800M/Advant Master DCS, ABB excitation system, ABB synchronous grid connected system
Channel configuration: 4 independent relay output channels (the specific number of channels depends on the configuration)
Output signal type: relay dry contact output (capable of driving AC/DC loads)
Input signal type: 24V DC digital switch signal (dry contact/wet contact optional)
Communication interface: Modulus Bus, compatible with Profibus DP
Working voltage: 24V DC (supporting a wide range of 21.6V to 31.2V)
Voltage range: 33V DC
Output range: 120V DC
Input range: 12mA
Overvoltage protection: 3.65V DC
Electrical isolation: Isolation between input and output channels ≥ 1500V, isolation between channels ≥ 1500V
Protection level: IP20, suitable for installation inside control cabinets
Working temperature: -20 ° C to+70 ° C
Storage temperature: -40 ° C to+85 ° C
Size: Approximately 20mm x 50mm x 50mm
Weight: Approximately 2.5kg (transportation weight approximately 3.5kg)
System memory: 11MB
Number of interfaces: 4
Installation method: DIN rail installation, to be used in conjunction with the terminal unit
Main functional features
Relay isolation output: 4 independent relay outputs, each achieving ≥ 1500V electrical isolation, can directly switch AC or DC loads (such as contactor coils, solenoid valves, indicator lights, alarms), which is the core difference from transistor output modules – relay output can drive inductive loads without additional intermediate relays, suitable for high current scenarios such as frequency converters and motor starters.
Synchronization control function: Built in synchronization logic, can monitor the voltage, frequency, and phase difference between the standby side and the system side in real time. When the three meet the synchronization conditions, it will automatically issue a closing command. When the risk of asynchronous closing is detected, it will immediately lock and close to prevent the generator from being damaged by impact due to asynchronous grid connection.
Gate control function: In scenarios such as hydropower stations and chemical industries, it can manage the start stop logic of gates or valves, receive open/close instructions issued by DCS or PLC, drive the gate actuator through relay output, and feedback the gate status back to the controller.
Excitation control support: When used as an excitation high-voltage control module, it can receive control instructions from the excitation regulator, output relay signals to drive excitation transformers, rectifier cabinets, and other equipment, and achieve precise adjustment of generator voltage.
Multi protocol communication: Supports Modbus protocol, remote communication and device inquiry through RS485, supports fault record query, remote parameter modification, status monitoring, suitable for unmanned or few person operation mode.
Circuit monitoring and fault diagnosis: supports the detection of communication interruptions, power outages, relay faults, output short circuits, and other abnormalities. Fault information is reported by the basic unit to the main controller, and diagnostic data can be viewed through system software to quickly locate whether it is a controller side problem or a module side problem.
Status indication: Equipped with operation indicator lights, channel status indicator lights, and power indicator lights, it can quickly determine the working status of modules and channels on site without the need for additional diagnostic tools.
Parameterized configuration: Supports online configuration of output parameters through ABB dedicated industrial control software, including channel filtering time, output type, etc. The configuration takes effect in real time, reducing downtime for debugging.
Start self check: Automatically check the electrical ID of the module when powered on, and do not enter the running state when it does not match the configuration, to prevent control abnormalities caused by mismatches.
Hot swappable support: supports online replacement, maintenance can be completed without cutting off system power supply, reducing downtime risk.
Comparison with products in the same series
GDB021BE01 (HIEE300766R0001) is a synchronizer/gate control module that focuses on automatic synchronization and gate management. It has stronger communication capabilities and supports redundant configurations. The core positioning of GDB021BE05 is “relay output+synchronization/excitation control”, and the output channel configuration focuses more on driving external devices, suitable for scenarios that require a large number of relay isolated outputs and simultaneous synchronization or excitation control. The GDB022BE series is a higher channel version with doubled channel count, suitable for driving large-scale devices. The GDB020BE series is a pure relay output module without synchronization function, with a simpler structure and suitable for scenarios that only require signal conversion. GDB021BE05 is irreplaceable in scenarios that require relay isolation output and synchronous or excitation control.
Typical application scenarios
Power industry: synchronous control of generator sets and grid connection, high-voltage relay drive of excitation system, equipment start stop control of plant power system.
Hydroelectric power station: Gate start stop control, coordinated with DCS system to achieve reservoir scheduling automation.
Chemical industry: Relay drive for reactor valves, actuator control for safety interlock systems.
Metallurgical industry: Relay output control and excitation system matching for auxiliary equipment of rolling mills and continuous casting machines.
Petrochemical industry: Relay isolation output for large motor drive systems, frequency converter start stop control.
