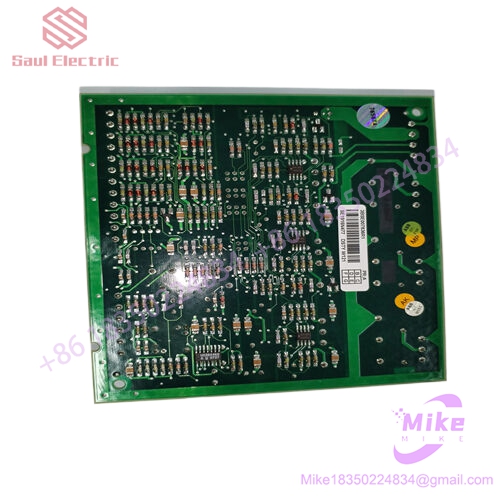

ABB DSTYW121 3BSE007836R1 Voltage Transformer Input Module
Introduction to ABB DSTYW121 3BSE007836R1 Voltage Transformer Input Module
ABB DSTYW121 3BSE007836R1 is a voltage transformer dedicated input module (Voltage Transformer Input Module) in the ABB AC800M distributed control system S800 I/O architecture. It is specifically responsible for the acquisition and conversion of AC voltage signals in remote I/O stations and is a dedicated signal access unit designed for voltage measurement scenarios in the same series.
ABB DSTYW121 3BSE007836R1 Voltage Transformer Input Module
core positioning
This module itself does not have independent communication capabilities and must be installed on basic units (such as DSDP140B, DSDP160, etc.) or expansion racks to work, with communication and scheduling managed by the basic unit. Unlike the DSTS series digital fixture module and DSTD series digital connection unit, the core function of DSTYW121 is “voltage signal conversion” – converting the high voltage signals (such as 110V, 220V, 380V, etc.) output by the on-site voltage transformer (PT/VT) into standardized low voltage signals (usually 0-10V DC or 4-20mA DC) recognizable by DCS in proportion, while achieving electrical isolation between the high voltage side and the low voltage control system. It is suitable for scenarios that require voltage monitoring of key nodes such as power supply busbars, generator outlets, and transformer sides.
Basic Parameters
Material Number: 3BSE007836R1
Model: DSTYW121
Series: S800 I/O Voltage Transformer Input Module
System: ABB AC800M DCS
Channel configuration: Multiple AC voltage input channels (the specific number of channels depends on the actual configuration, usually 4-8 PT secondary voltage signals)
Input signal type: AC voltage signal, typical range 0-110V AC/0-220V AC/0-380V AC (configurable)
Output signal type: After internal conversion, output standardized signals of 0-10V DC or 4-20mA DC to DCS
Communication interface: Modulus Bus, compatible with Profibus DP
Working voltage: 24V DC (supporting a wide range of 21.6V to 31.2V)
Electrical isolation: Isolation between input channel (high voltage side) and bus ≥ 1500V, isolation between channels ≥ 1500V
Protection level: IP20, suitable for installation inside control cabinets
Working temperature: -20 ° C to+60 ° C
Storage temperature: -40 ° C to+85 ° C
Installation method: DIN rail installation, to be used in conjunction with TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850 and other terminal units
Size: Approximately 102mm × 119mm × 45mm (S800 series standard size)
Weight: Approximately 0.25kg
Main functional features
Specialized signal processing for voltage transformers: Equipped with high-precision A/D conversion and signal scaling conversion circuits, it can directly receive AC voltage signals (such as 100V, 110V) output from the secondary side of the voltage transformer. After isolation, rectification, and filtering, they are converted into DCS standard analog signals without the need for external transmitters, reducing on-site wiring and intermediate links.
High level electrical isolation: An electrical isolation of ≥ 1500V is achieved between the input channel (connected to the PT secondary side on site) and the controller side bus, effectively blocking the electromagnetic interference and transient overvoltage of the high-voltage system on site from impacting the DCS controller. This is the core difference from ordinary analog input modules – ordinary modules cannot withstand the voltage level of the PT secondary side.
Channel level monitoring: supports open circuit detection, short circuit detection, and signal over limit detection for each voltage input. Fault information is reported from the basic unit to the main controller, and diagnostic data can be viewed through system software to quickly locate whether it is a PT circuit problem or a module side problem.
Status indication: Equipped with operation indicator lights, channel status indicator lights, and power indicator lights, it can quickly determine the working status of modules and channels on site without the need for additional diagnostic tools.
Parameterized configuration: Supports online configuration of the range, transformation ratio, filtering time, alarm threshold, etc. of each voltage channel through ABB’s dedicated industrial control software. The configuration takes effect in real time and reduces downtime for debugging. For example, when the PT ratio is 10kV/100V, the engineering value of the primary side voltage can be directly set in the software, and the DCS screen will directly display the actual voltage of the primary side.
Hot plug support: Supports online hot plug replacement, maintenance can be completed without cutting off the power supply of the I/O station system, reducing the risk of downtime.
Start self check: Automatically check the electrical ID of the module when powered on, and do not enter the running state when it does not match the configuration, to prevent measurement abnormalities or safety hazards caused by mismatches.
Comparison with products in the same series
DSTA180 is an analog connection unit that focuses on 4-20mA/0-10V universal analog signals, with no dedicated isolation design for voltage transformers. DSTD108 (16 DI+16 DO) is a digital connection unit that processes switch signals and is independent of voltage acquisition. DSTS104/105/106 is a digital fixture module with pure switch I/O. DSTXW110 is a dedicated input board for DC speed regulation, designed for optimizing the speed regulation circuit of DC motors. The core positioning of DSTYW121 is a “voltage transformer dedicated input module”, which cannot be replaced in scenarios where PT secondary voltage signals need to be safely connected to DCS and achieve primary voltage display. It is a standard configuration module for power system bus monitoring, generator voltage monitoring, and transformer voltage monitoring.
Typical application scenarios
Power industry: generator outlet voltage monitoring, collection of plant power bus voltage, connection of voltage signals on all sides of the main transformer, safety isolation interface between PT secondary circuit and DCS.
Chemical industry: Monitoring the supply voltage of large motor drive systems to ensure stable voltage of key equipment.
Metallurgical industry: voltage monitoring of the main power supply circuit for rolling mills and continuous casting machines.
Water treatment: Centralized collection and display of voltage signals from pump stations and booster stations.
