Description

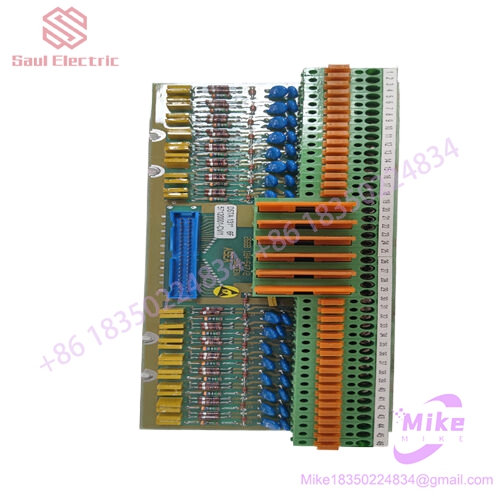

ABB DSTA131 57120001-CV-1 CONNECTION UNIT
Introduction to ABB DSTA131 57120001-CV-1 Interface Unit (Connection Board)
ABB DSTA131 57120001-CV-1 is a digital signal connection unit (Interface/Couple Unit) in the ABB ADVANT-800XA/System 800xA DCS control system S800 I/O series. It serves as a communication interface and signal conversion bridge between the controller and I/O modules in the S800 I/O architecture, and is the core hub component for data exchange between the main controller and on-site I/O stations.
core positioning
ABB DSTA131 57120001-CV-1 CONNECTION UNIT
The module itself does not collect on-site signals, nor does it directly drive the actuator. Instead, it exists as a “communication translator” – converting control instructions issued by the main controller (such as PM802F, PM866A, etc.) into a format recognizable by the I/O module, and transmitting the on-site data collected by the I/O module back to the main controller. It is an essential interface layer between the S800 I/O station communication bus and physical I/O modules.
Basic Parameters
Material Number: 57120001-CV-1
Model: DSTA131
Series: S800 I/O Connection Unit
Communication interface: Modulus Bus, compatible with Profibus DP
Working voltage: 24V DC
Electrical isolation: ≥ 1500V isolation between the controller side and the I/O module side
Protection level: IP20, suitable for installation inside control cabinets
Working temperature: -30 ° C to+60 ° C
Storage temperature: -40 ° C to+85 ° C
Installation method: Standard DIN rail installation, to be used in conjunction with TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850 and other terminal units to ensure electrical isolation performance
Size: Approximately 102mm × 119mm × 45mm (S800 series standard size)
Weight: Approximately 0.25kg
Main functional features
Signal Conversion and Distribution: Responsible for converting the controller output signal into a format recognizable by the I/O module, while transmitting the on-site input signal to the controller to achieve bidirectional data exchange.
High speed data transmission: Ensure timely and accurate signal transmission between the controller and the I/O module, improve the overall response speed of the system, and meet the real-time requirements of process control.
Electrical isolation: ≥ 1500V electrical isolation is achieved between the controller side and the I/O module side, effectively suppressing the impact of on-site electromagnetic interference on the control system and improving system safety.
Status indicator: Equipped with operation indicator light, communication status indicator light, and fault indicator light, it can quickly determine the working status of the module on site without the need for additional diagnostic tools.
Modular expansion: supports combination with multiple connection units, flexibly expands the scale of I/O stations, and adapts to control requirements of different scales.
Loop monitoring: supports the detection of communication interruptions, power outages, and other abnormalities. Fault information can be reported to the main controller through Modulus Bus for quick fault location.
Parameterized configuration: supports parameter configuration through system tools, with real-time configuration taking effect, reducing downtime for debugging.
Hot plug support: Supports online hot plug replacement, maintenance can be completed without cutting off the power supply of the I/O station system, reducing the risk of downtime.
Start self check: Automatically check the electrical ID of the module when powered on, and do not enter the running state when it does not match the configuration, to prevent communication abnormalities caused by mismatches.
Comparison with products in the same series
DSTA180 (57120001-ET) is another connection unit with different channel density and functional focus. DSTA131 is positioned as a standard interface conversion between controllers and I/O modules, and is one of the most commonly used connection units in S800 I/O stations. Compared to pure I/O modules such as DSAI146 analog input and DSAO1302 analog output, DSTA131 does not directly process field signals, but focuses on establishing and maintaining communication links. Compared to remote I/O basic units and controllers such as DSDP140B/DSDP160, DSTA131 belongs to the internal interface layer component, and the three work together to form a complete S800 I/O station.
Typical application scenarios
Power industry: DCS control circuit for auxiliary systems of generator sets, achieving reliable communication between controllers and on-site I/O modules.
In the chemical industry, it serves as a communication bridge between controllers and temperature and pressure transmitter interface modules in process control systems such as reactors and pipelines.
Metallurgical industry: Internal communication connection of DCS control stations for equipment such as blast furnaces and rolling mills.
Water treatment: I/O station communication interface for process control circuits such as boiler feedwater and steam systems.
