Description
Introduction to ABB DSDX452 5716075-P BASIC I/O UNIT Remote I/O Basic Unit
ABB DSDX452 5716075-P is a remote digital I/O basic unit in the ABB Advant Master/S400 distributed control system. It belongs to the station level basic module in the remote I/O architecture and is responsible for collecting and outputting digital signals in the field area far from the main control cabinet. It is the core component of the entire remote I/O station.

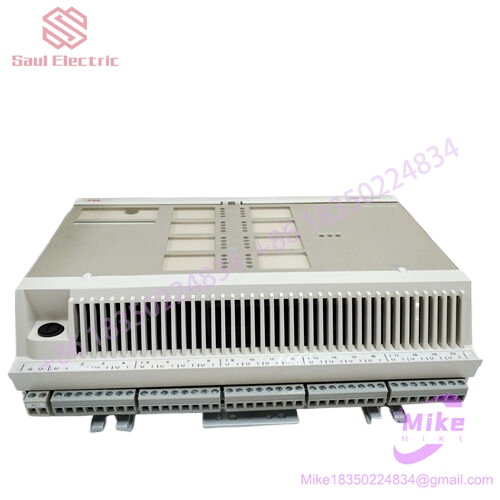

ABB DSDX452 BASIC I/O UNIT
core positioning
This module is the “basic unit” of a remote I/O station and does not have independent expansion capabilities. It must be used in conjunction with expansion units (such as DSDX451, DSDI451) to form a complete remote I/O station. It provides a digital input channel to collect on-site switch signals, while also providing a relay output channel to drive on-site actuators, communicating with the main controller through a fieldbus.
Basic Parameters
Material Number: 5716075-P
Model: DSDX452 BASIC I/O UNIT
Digital input channel: 20 channels, 24V DC
Digital output channel: 12 channels, relay output (dry contact)
Communication protocol: MasterFieldbus SDB
Working voltage: 24V DC
Protection level: IP20, suitable for installation inside control cabinets
Working temperature: -20 ° C to+60 ° C
Installation method: Standard DIN rail installation
Main functional features
Loop monitoring: Supports monitoring of abnormalities such as power outages, communication interruptions, and startup self checks. Fault information can be reported to the main controller through the fieldbus for quick fault location.
Channel status indicator: equipped with running indicator lights, channel indicator lights, power indicator lights, and sensor power indicator lights, it can quickly determine the working status of modules and channels on site without the need for additional diagnostic tools.
Electrical isolation: Electrical isolation is achieved between input channels, output channels, and communication ports, effectively suppressing the impact of on-site electromagnetic interference on the control system.
Scalability: Supports use with DSDX451 (24 DI+24 DO relay output expansion unit) or DSDI451 (32 DI pure digital input expansion unit) to flexibly expand I/O capacity, with a maximum scalability of 384 points.
Hot plug support: Supports online hot plug replacement, maintenance can be completed without cutting off the power supply of the I/O station system, reducing the risk of downtime.
Parameterized configuration: supports parameter configuration through system tools, including channel filtering, etc., and the configuration takes effect in real time.
Comparison with products in the same series
DSDX451 is a 24 DI+24 DO remote I/O expansion unit with a larger number of channels but does not have basic unit functions, and must be attached to basic units such as DSDX452 to work. DSDI452 is a 32 DI+0 DO pure digital input basic unit with no output channel. DSDX452L is a low-level signal output variant. The core positioning of the DSDX452 is the “basic unit for 20 DI+12 DO relay output”, which takes into account both input and output, making it suitable for most remote scenarios that require simultaneous acquisition of switch values and driving of relay loads. The DSDP140B is another remote I/O basic unit (16 DI+8 DO), and the channel density of the DSDX452 is higher.
Typical application scenarios
Power industry: Remote switch quantity acquisition and relay drive for auxiliary equipment of generator sets, such as start stop control of feedwater pumps and fans.
Chemical industry: signal acquisition of reactor valve switches, driving of safety interlock relays, reducing the length of wiring from the site to the control room.
Metallurgical industry: remote I/O distributed deployment of equipment such as continuous casting machines and rolling mills.
Water treatment: monitoring and control of pump station valve status, driving of dosing system actuators.
Manufacturing industry: production line equipment status monitoring, conveyor line sorting control.
