Description
ABB CS513 3BSE000435R1 | Advant OCS Communications Module
Dynamic Product Introduction
Complex industrial manufacturing, power generation, and process control networks demand reliable communication couplers to ensure seamless data exchanges across distributed controllers. When legacy ABB Advant OCS network nodes experience communication bottlenecks or hardware failure, installing a verified ABB CS513 (3BSE000435R1) communications module reestablishes absolute data integrity and network throughput.
Engineered specifically for heavy-duty industrial process environments, this MasterBus 300E interface card handles demanding protocol routing without packet loss. Deploying a fresh CS513 unit ensures dependable backplane handshakes, stable plant-wide connectivity, and prolonged uptime across critical control loops.

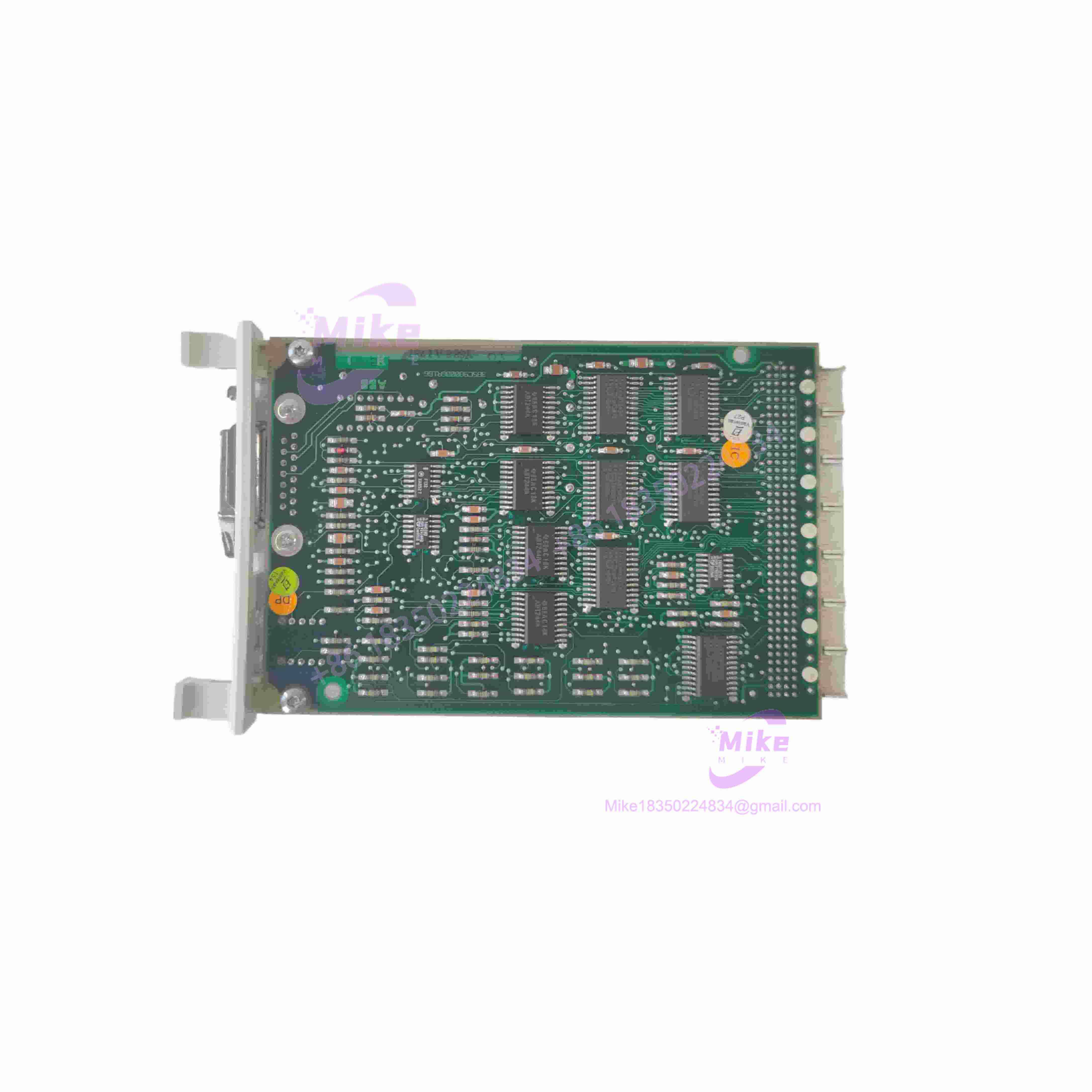

CS513 3BSE000435R1
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Model | CS513 (Part Number: 3BSE000435R1) |
| Manufacturer | ABB |
| System Compatibility | ABB Advant OCS, Advant Controller 410, and Advant Controller 450 platforms |
| Module Classification | MasterBus 300E Communications Module / Coupler |
| Network Standard | IEEE 802.3 LAN Module |
| Physical Dimensions | Compact profile (~108 mm width × 18 mm height × 234 mm depth) |
| Module Weight | Approx. 0.2 kg |
| Operating Environment | Standard industrial cabinet thresholds |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring legacy or discontinued distributed control system (DCS) hardware through secondary markets requires an exhaustive verification workflow to safeguard live plant operations.
- Inbound Verification: Incoming CS513 batches undergo high-magnification optical inspection of backplane connector pins, edge-card solder integrity, and holographic traceability markings against official ABB production logs.
- Live Simulation: Technicians seat the communication module into an active Advant Controller test rack energized by stable power supply rails to verify bus initialization and transceiver handshakes.
- Diagnostics: Engineers execute full-scale network traffic sweeps, validating IEEE 802.3 frame transmission accuracy, error-handling routines, and running a 24-hour thermal soak chamber test.
- Final Prep: Hardware units receive comprehensive firmware revision logging, static-dissipative wrapping, and custom vacuum sealing inside heavy-gauge moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Node Address and Configuration Mismatches: Failing to verify hardware switch configurations or network identifiers on the replacement card prior to rack insertion will trigger communication dropouts across the MasterBus loop. Always mirror the exact profile of the legacy unit.
❗ Backplane Insertion Stress: Forcing the module into an unaligned rack slot can bend delicate gold-plated backplane pins. Always ease the housing smoothly along the guide rails before engaging any locking mechanisms.
❗ Hot-Swap Power Hazards: Inserting or extracting communication cards while the rack is energized risks backplane bus corruption or electrical shock. Always power down the system rack completely before servicing.
Intent-Driven FAQ
Will swapping this CS513 3BSE000435R1 module erase my system control logic?
Core control logic and station configurations are typically managed at the system level or stored on separate controller memory media. However, network parameters and firmware revisions must match your system architecture for seamless integration.
Are these units original factory sealed or surplus stock?
Sourced inventory pools span both original factory-sealed packaging and fully certified, tested surplus hardware. Every single unit undergoes rigorous bench validation prior to dispatch.
What controllers are natively compatible with this module?
The is designed primarily to integrate smoothly within ABB Advant Controller 410 and Advant Controller 450 system architectures.
What tools are required to secure this module into the rack?
Installation requires standard precision hand tools (such as a screwdriver) to securely fasten the module’s anchoring elements against vibration.
What kind of warranty accompanies a replacement communication module?
All supplied units carry a comprehensive 1-year operational warranty covering internal component health, communication port stability, and processing reliability.
Are you installing this module into an active Advant OCS control rack or keeping it on hand as a critical hot-spare for your facility?
