ABB CI541V1 3BSE014666R1 | Advant Controller 31 Communication Unit Core Category
Dynamic Product Introduction
Industrial communication networks demand rigid determinism to prevent process jitter across large distributed setups. The CI541V1 (part number 3BSE014666R1) answers this requirement by handling high-speed Profibus-DP traffic without loading down the central processor. By offloading cyclic data exchanges between the controller and remote peripherals, this CI541V1 unit keeps scan cycles predictable even in harsh plant environments.
Maintaining older Advant networks often forces engineering teams to hunt down obsolete parts that match existing backplane protocols. Installing a verified CI541V1 module provides a direct, drop-in pathway to restore lost node communication without forcing an expensive, disruptive control system migration.

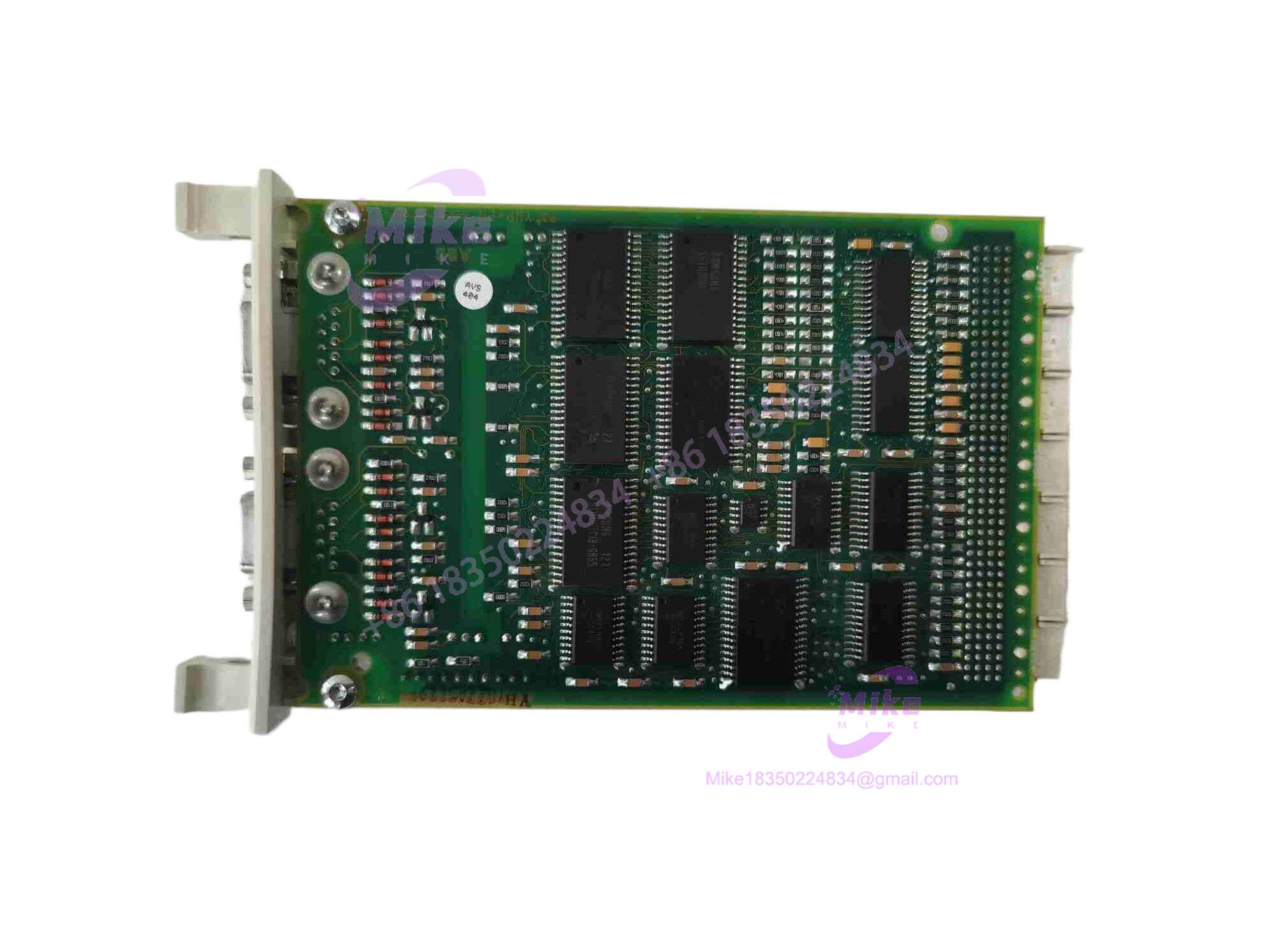

CI541V1 3BSE014666R1
Key Technical Specifications
| Core Parameter | Technical Specification |
| Part Number | 3BSE014666R1 |
| Module Type | Profibus-DP Master / Communication Interface |
| Supported Protocols | Profibus-DP (EN 50170) |
| Transmission Speed | Up to 1.5 MBaud (auto-baud detection) |
| Physical Interface | 9-pin D-SUB female connector (RS-485) |
| Internal Power Consumption | Approx. 150 mA from 24 VDC system supply |
| LED Diagnostics | Status indicators for power, run, error, and bus fault |
| Operating Temperature | 0 °C to 55 °C |
| Enclosure Protection | IP20 |
| Dimensions / Weight | Standard AC31 rack format, approx. 350 g |
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing legacy automation assets like the CI541V1 requires rigorous screening to ensure field reliability. Every secondary-market 3BSE014666R1 unit passes through a strict verification protocol:
- Inbound Verification: Inspectors trace manufacturing stamps, cross-reference laser-etched serial numbers against ABB production databases, and check terminal pins for oxidation or stress cracking.
- Live Simulation: The CI541V1 is plugged into an authentic AC31 test rack powered by an isolated 24 VDC supply to verify backplane bus handshaking.
- Diagnostics: Technicians connect a Profibus analyzer to validate frame generation speeds, packet integrity, and baud-rate auto-detection across the 9-pin D-SUB port. Units then undergo a 24-hour thermal soak test under continuous communication load.
- Final Prep: Internal registers are cleared, a serialized QC sticker is attached, and the hardware is vacuum-sealed in an antistatic ESD bag.
The Field Engineer’s Pitfall Guide
- ❗ Profibus Termination Neglect: Forgetting to enable the physical termination resistors on the first and last physical nodes of a network segment leads to sporadic packet reflections. (—though the diagnostic LEDs will often flash an intermittent bus fault.) I’ve seen plant technicians chase phantom communication timeouts for hours before discovering a single missing termination switch on the line.
- ❗ Baud Rate Mismatching: Forcing a static baud rate configuration in software while downstream slaves are set to auto-baud can cause the to drop off the network entirely during power-up sequences.
- ❗ Backplane Insertion Force: Rushing the installation of the 3BSE014666R1 onto a live rack without aligning the rear multi-pin connector can bend internal pins. Always guide the module straight and secure the retention clips firmly.
Intent-Driven FAQ
Will swapping out a faulty module erase my network configuration data?
No. The communication configuration parameters and node address mappings are stored in the master controller or non-volatile memory of the system, meaning a physical swap of the does not require re-programming the hardware configuration.
How do I verify that the is successfully communicating with slave devices?
Monitor the onboard LED status indicators on the front face of the . A solid green run light paired with inactive error LEDs confirms proper cyclic data exchange across the Profibus network.
Can I use a standard off-the-shelf serial cable to connect to the 9-pin port?
No. Profibus-DP networks require specialized shielded twisted-pair cable with characteristic impedance matching (150 ohms) and proper D-SUB connector pinouts with integrated biasing resistors.
What is the advantage of sourcing a surplus 3BSE014666R1 unit?
Deploying a verified surplus allows plant managers to bypass long OEM factory lead times and avoid the exorbitant costs associated with upgrading an entire legacy control architecture.
What kind of warranty covers a pre-owned ABB communication module?
Reputable industrial suppliers typically back secondary-market units with a comprehensive 1-year operational warranty covering both internal logic components and communication transceiver chips.
What baud rate are you currently running across the Profibus segments connected to your nodes?
