ABB BCU-12 3AUA0000110430 Control Unit Overview

Brand Background

ABB is a global leader in electrification, industrial automation, motion, and robotics. Within industrial drive technology, ABB’s ACS880 series variable frequency drives (VFDs) and high-power drive modules set the industry benchmark for precise motor speed control, energy efficiency, and operational safety across heavy processing industries.

Model Overview: BCU-12 (Part Number: 3AUA0000110430)

The ABB BCU-12 (Part Number: 3AUA0000110430) is an intelligent Drive Control Unit designed specifically for high-power ABB ACS880 industrial VFD drive modules, inverter units, and supply units.

Serving as the central processing brain of the drive assembly, the BCU-12 executes Direct Torque Control (DTC) software algorithms, manages fieldbus communications, processes safety system signals, and communicates with power units via high-speed fiber-optic links.

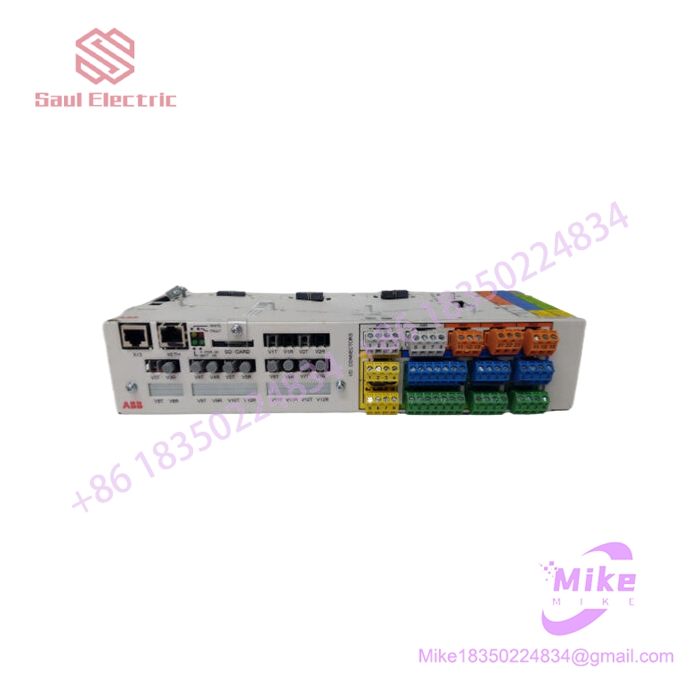

ABB BCU-12 3AUA0000110430 CONTROL UNIT

Key Technical Specifications and Parameters

• Manufacturer: ABB

• Model Designation: BCU-12

• Part / Ordering Number: 3AUA0000110430

• Product Type: Central Drive Control Unit

• Nominal Input Voltage: 24 VDC (±10%)

• Typical Power Consumption: < 8 W

• Fiber Optic Interfaces: Multiple fiber-optic channels for direct communication with inverter/rectifier power modules

• Digital & Analog I/O: Integrated configurable digital inputs, relay outputs, and analog control terminals

• Diagnostic Display: Integrated 7-segment status display and diagnostic LEDs

• Mounting Type: Standard DIN rail or mounting plate mounting inside drive cubicles

• Operating Temperature Range: -20°C to +60°C

Operating Industries

The BCU-12 control unit is utilized in large-scale industrial motor drive applications where continuous operation and high torque precision are required:

• Mining & Minerals: Large conveyors, crushers, grinders, and mine hoists.

• Oil & Gas: Offshore drilling rigs, heavy-duty gas compressors, crude pumps, and pipeline transport stations.

• Pulp & Paper: Paper machine drives, winders, refiners, and continuous pulping equipment.

• Metals & Heavy Manufacturing: Rolling mills, continuous casting lines, blast furnace blowers, and overhead cranes.

• Marine & Offshore: Electric propulsion systems, thrusters, winches, and dynamic positioning units.

• Water & Wastewater: Large municipal pumping stations, aeration blowers, and desalination facilities.

Common Usage Scenarios

1. High-Power ACS880 Drive Module Control

   Executing motor control algorithms and coordinating multiple parallel power modules in high-power AC drive cabinets.

2. Real-Time Fiber-Optic Communication

   Sending pulse-width modulation (PWM) switching commands to power semiconductors (IGBTs) over noise-immune fiber-optic cables.

3. Integrated Safety & Interlocking

   Interfacing with Safe Torque Off (STO) modules and safety PLCs to provide automated emergency shutdowns and overspeed protection.

4. PLC and SCADA Integration

   Housing optional fieldbus adapter modules (such as PROFIBUS, PROFINET, or Modbus) to exchange real-time speed, torque, fault code, and energy consumption data with centralized control systems.
