ABB Bailey INSEM01 Product Introduction
One sentence positioning: This is the SOE (Sequence of Events) main module in the ABB Bailey Symphony/INFI 90 DCS control system, responsible for millisecond level precise acquisition, timing, and management of switch events throughout the system. It is the core component of DCS fault tracing and accident analysis.
Product type: SOE Sequence of Events Master module
System: ABB Bailey Symphony, INFI 90, Bailey Harmony control system
Main model: INSEM01 (also written as INSEMO1)

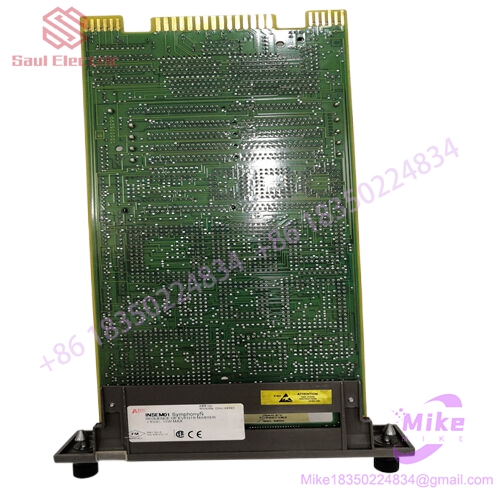

ABB Bailey | INSEM01
Core functions:
Sequence of Events (SOE): Accurately capture all switch displacement events on site and stamp them with high-precision timestamps
Measurement point management: Supports up to 1500 SOE measurement points
Unit connection: up to 1000 HCUs (Harmony control units) can be connected
Trigger configuration: Supports 256 complex triggers+3000 simple triggers to meet the needs of complex logic diagnosis
Event resolution: microsecond level, ensuring absolute accuracy in fault recall and analysis
Clock synchronization: works in conjunction with the INTKM01 clock master module to achieve high-precision clock synchronization throughout the system
Network access: Connect to Cnet control network through INNIS11 network interface module
Electrical and physical parameters:
Power supply method: Backboard 5V/± 15V DC power supply, no external power supply required
Working temperature: -20 ° C to+70 ° C (industrial grade wide temperature design)
Installation method: Standard single slot size, plug-in installation
Hot swappable support: supports online replacement, maintenance does not affect system operation
Anti interference: Built in photoelectric isolation, suitable for strong electromagnetic industrial environments
Certification: Compliant with industrial safety and electromagnetic compatibility standards such as CE and UL
System architecture description:
As the main control module of the SOE system, INSEM01 communicates with various HCU control units through the Cnet network to continuously collect changes in on-site switch status. When an event occurs, the module records the event content, source measurement points, and precise timestamps. The data can be used for post event fault analysis, accident recall, safety auditing, etc. The system also supports INNIS11 (network interface), INTKM01 (clock synchronization) and other collaborative modules to form a complete SOE solution.
Typical application scenarios:
DCS control systems for industries such as power plants, steel mills, oil and gas, petrochemicals, papermaking, cement, and ships are key modules for ensuring safe and stable operation of industrial processes, including equipment start stop recording, fault alarm timing analysis, parameter change tracking, and accident cause localization.
Current status: This model belongs to the ABB Bailey INFI 90/Symphony series spare parts and is currently circulating in the market in the form of inventory spare parts. If necessary, it is recommended to confirm compatibility with the existing Bailey DCS system and related supporting modules (INTKM01, INNIS11, etc.), and refer to the physical nameplate data of the modules for accuracy.
