Description
3BHL000391P0101 5SHX1445H0001 3BHB003230R0101
These three models constitute a complete ABB integrated gate commutated thyristor (IGCT) power conversion system, consisting of IGCT power modules, their internal material codes, and dedicated radiator components, which are used in combination.
5SHX1445H0001/3BHL000391P0101- IGCT power module
Product Name: ABB 5SHX1445H0001 3BHL000391P0101 Integrated Gate Converter Thyristor (IGCT) Power Semiconductor Module
Brand: ABB
Series: 5SHX series HPT IGCT (high-power technology type)

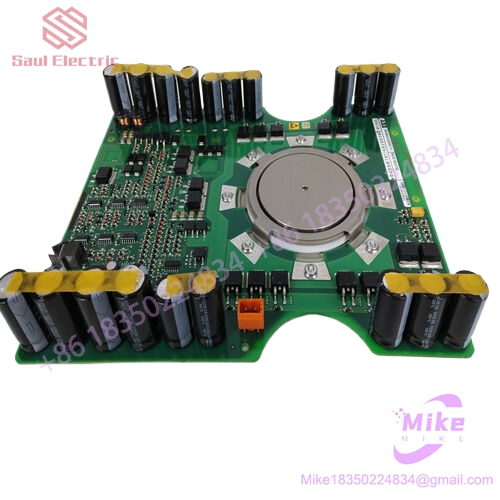

ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 IGCT MODULE
Product type: High power thyristor/IGBT power semiconductor module, pressure pack packaging
Core function: As the core power switching device of medium to high voltage high-power power electronic systems, it is responsible for converting DC bus voltage into controllable high-voltage AC output. IGCT combines the high voltage resistance and low conduction loss characteristics of thyristors with the fast turn off capability of MOSFETs, replacing traditional GTOs in medium to high voltage applications ranging from several MVA to several hundred MVA. It is currently one of ABB’s main power modules at 1200V/1700V levels.
Key electrical parameters:
Rated voltage: 1200V/1700V (dual voltage level)
Controllable shutdown current: 1445A (ITGQM, VD=1200V/1700V, Tj=125 ° C)
On state voltage drop: less than 1.8V (@ 1445A)
Opening delay time (td (on)): approximately 3.5 μ s
Turn off delay time (td (off)): approximately 7 μ s
Opening energy (Eon): approximately 1.5J/pulse
Turn off energy (Eoff): approximately 22J/pulse
Critical current rise rate (diT/dt): 1000A/μ s
Maximum junction temperature: 140 ° C
Technical features:
Integrated reverse conducting diode, multi cathode unit structure, simplified parallel design, no need for voltage equalization circuit
Gate hard drive technology, completes current transfer within 1 μ s, reduces turn off loss by about 40% compared to traditional GTO
Integrated gate drive technology ensures precise and reliable switch operation
Low on state voltage drop, minimizing power loss and improving efficiency to the greatest extent possible
IP65 protection level, dustproof and waterproof, suitable for harsh industrial environments
Water cooling and heat dissipation design ensures stability under long-term high load operation
Modular design for easy installation and maintenance
Physical parameters:
Size: Approximately 170mm x 100mm x 50mm (width x height x depth, estimated value)
Weight: Approximately 2kg
Installation method: crimping installation, compatible with ABB ACS6000/ACS800 cabinet
Working temperature: -20 ° C to+55 ° C
Storage temperature: -40 ° C to+125 ° C
Typical application scenarios:
Coal mine main shaft belt drive system (with clear application cases)
ABB ACS6000 series high-voltage frequency converter: power plant boiler fan, water pump, mine crusher, steel rolling main drive
ABB ACS800 series medium voltage frequency converter
High Voltage Direct Current Transmission (HVDC) Converter Station
Wind power full power converter
Large synchronous motor drive: metallurgical arc furnace, rail transit traction inverter
Pumped storage power station
Related models in the same series:
3BHL000392P0101/5SHX1060H0001: 1060A/1200V version, with lower current level
5SHY3545L0014 (3BHE023784R0001): 3500A/4500V, HPT+series, chip diameter 91mm
5SHY4045L0006（3BHB040969R0001）：4000A/4500V
3BHB003230R0101: Special heat sink for this module
3BHE039203R0101 (GVC736CE101): This IGCT module dedicated gate drive board
3BHE024747R0101 (GDC801A): Crowbar protection board, combined with IGCT module to achieve overvoltage protection
3BHE051592R0101 (GDC801B101): Digital I/O module, installed in the same cabinet as IGCT module
3BHB003230R0101- IGCT Heat Sink Component
Product Name: ABB 3BHB003230R0101 IGCT Module Dedicated Heat Sink/Thermal Management Component
Brand: ABB
Series: 5SHX series IGCT matching heat dissipation components
Product type: Dedicated radiator/cooling component
Core function: As a supporting heat dissipation component for the 5SHX1445H0001 IGCT module, it is responsible for quickly exporting the large amount of heat generated by the IGCT module during operation, ensuring that the module junction temperature is maintained within a safe range, and guaranteeing long-term stable operation. This component, together with the IGCT module and driver board, forms a complete thermal management chain.
Key Features:
Efficient heat dissipation design, compatible with water cooling system
Corresponding one-to-one with 5SHX1445H0001 IGCT module, do not mix other models of radiators
Durable structure, capable of withstanding vibration, dust, and extreme temperatures
Ensure optimal thermal management and extend the service life of IGCT modules
Physical parameters:
Size: Approximately 200mm x 150mm x 60mm (estimated value, compatible with IGCT module installation)
Weight: Approximately 0.8kg
Installation method: Installed together with IGCT module in the frequency converter cabinet
Protection level: IP20 (module level)
Working temperature: -40 ° C to+85 ° C
Summary of the Three Piece Relationship:
5SHX1445H0001 (3BHL0003391P0101) is a power actuator, and 3BHB003230R0101 is its dedicated heat dissipation component, forming a complete IGCT power switch unit. In the ABB ACS6000/ACS800 system, multiple sets of this combination are used in parallel to drive high-power motors or perform rectification/inversion functions. 3BHE039203R0101 (GVC736CE101 driver board) is used in conjunction with the gate control board, and 3BHE024717R0101 (GDC801A Crowbar board) is used in conjunction with the system level protection board to form a complete power conversion and protection link.
