Description
ABB 07DC92 GJR525220R3101 is a configurable digital I/O module in the ABB Advant Controller 31 series, which is a component of the ABB Advant OCS process control system.
This module provides 32 configurable digital input/output channels, with a working voltage of 24V DC and a driving capacity of 0.5A for each channel. Users can freely configure each channel as input or output according to their actual application needs, with high flexibility.

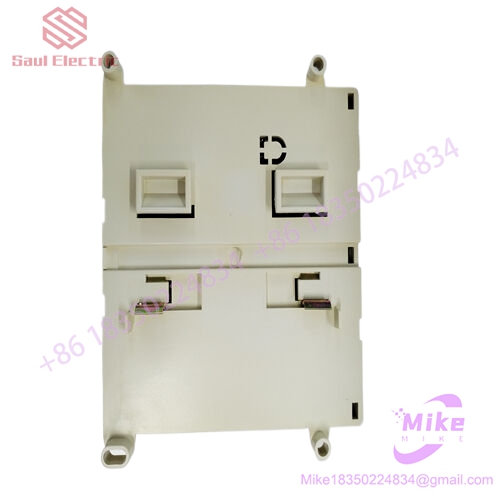

ABB 07DC92 GJR5252200R3101 Advant Controller
In the system architecture, 07DC92 is used as an I/O module and needs to work together with Advant Controller 31 series central processing units (such as 07KT97). It communicates with the central unit through the CS 31 bus and can connect up to multiple I/O modules. A single station can accommodate up to 192 binary signals and 96 analog signals, or any combination of the two. Through additional module bus expansion, the entire system can handle thousands of I/O signals.
This module adopts a modular design, installed on a DIN rail, and uses screw terminals for wiring, making wiring and maintenance relatively convenient. It can be used as an independent processing station or as a component in the Advant OCS process control system.
In terms of communication, the Advant Controller 31 series supports multiple protocols, including OPC standard, Modbus TCP, EtherNet/IP, PROFIBUS DP, etc., and can communicate with monitoring stations or other third-party systems running under Windows.
The programming tool uses Advant Control Builder (AC31GRAF), which complies with the IEC 61131-3 standard and supports functions such as logic, PID control, and alarm processing.
