Description
ABB 70PR05B-ES HESG332204R0001 is a switching power module in the ABB Freelance 2000 (70 series) DCS distributed control system. It is the basic power supply unit of the system and provides stable DC working power for the control station and I/O modules.
The input voltage range of this module is 90 to 264VAC, compatible with mainstream industrial AC power supply standards worldwide, and does not require additional adjustments for different regional power grids. The output is 24VDC, the rated output current is 8A, the output power is about 192W, the conversion efficiency is over 90%, and the heat generation during operation is relatively low. The insulation level between input and output is 1500VAC, which has good electrical isolation performance and can effectively suppress surges and interference from the grid side to the control side. The working temperature range is from minus 10 degrees Celsius to plus 70 degrees Celsius, with a protection level of IP20, suitable for installation inside standard control cabinets.

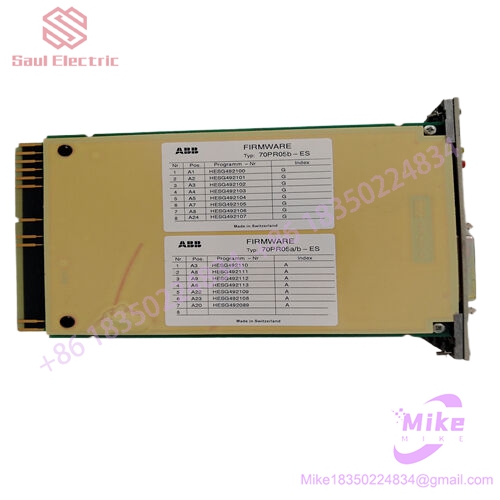

70PR05b-ES module HESG332204R0001
In the system architecture, 70PR05B-ES serves as the core power supply component of the Freelance 2000 control station, usually installed on the power slot of the cabinet backplane, and works in conjunction with the controller and I/O module through the bus. This power module supports redundant configuration and can form a 1+1 redundant power supply with another power supply of the same model. When the main power supply fails, it automatically switches seamlessly to ensure uninterrupted operation of the control system. The module has built-in overload protection and short circuit protection functions. When the output power exceeds 105% to 150% of the rated value, it enters current limiting mode. After the fault is eliminated, it can automatically recover without manual intervention.
This product has been officially marked as discontinued by ABB and replaced by new generation DCS platforms such as AC 800M. However, the Freelance 2000 system still has a large number of equipment in use in industrial fields such as power, petrochemicals, metallurgy, papermaking, and water supply worldwide. The demand for this power module as a key spare part is still strong and can be obtained through third-party channels.
