Yokogawa PW502 | CENTUM VP / CS3000 Power Supply Module
Dynamic Product Introduction
Power sags or harmonic noise spikes on primary utility feeds can introduce subtle voltage ripple across DCS node backplanes, leading to unexpected communication timeouts and controller resets. Finding a reliable power supply module that maintains tight voltage regulation under heavy electrical loads is vital for preventing unscheduled plant downtime. The Yokogawa PW502 power supply module functions as an energy distribution core engineered specifically for CENTUM VP and CS 3000 node subracks.
Designed to accept standard industrial power inputs, the PW502 steps down and regulates voltage to deliver stable, isolated DC power across the node backplane. (Honestly, ensuring clean auxiliary power distribution prevents random bus communication errors between central processors and remote I/O modules during major plant motor starts.) Featuring support for dual-redundant power configurations and hot-swappable replacement, the PW502 ensures continuous uptime for continuous process control loops—though long-term reliability depends heavily on maintaining uninhibited panel cooling airflow.

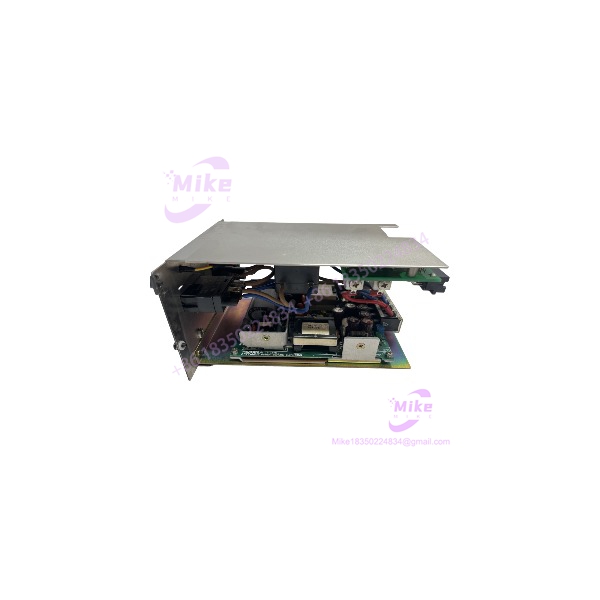

PW502
Key Technical Specifications
- Manufacturer & System Platform: Yokogawa CENTUM VP / CS 3000 / ProSafe-RS Architecture
- Module Part Number Variations: PW502 / PW502-10 / -20
- Primary Input Voltage: Standard industrial AC or DC supply ratings depending on suffix configuration
- Regulated Output Rails: Primary 5 VDC logic backplane rail and auxiliary 24 VDC loop power supply
- Redundancy & Load Sharing: Parallel N+1 dual-module operation support for active redundant power schemes
- Diagnostic Features: Front-panel status LEDs for Power OK, Input Error, and Overload conditions
- Backplane Interface: Heavy-duty edge connector designed for secure rack slot mounting
- Operating Ambient Temperature: 0°C to +50°C (32°F to 122°F) continuous operational envelope
- Enclosure Protection Rating: IP20 modular industrial rack chassis
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing secondary-market or surplus DCS power supplies requires rigorous electrical validation before installing components into active control loops. Every Yokogawa PW502 unit passing through our inventory undergoes a strict five-stage bench test protocol:
- Inbound Verification: Serial numbers, model suffixes (e.g., -10 or -20), and PCB revision tags are matched against Yokogawa manufacturing records. We inspect terminal blocks for mechanical wear, check backplane connector pins for gold plating integrity, and scan internal electrolytic capacitors for thermal aging.
- Live Simulation: The PW502 module is racked into an authentic CENTUM node test bench powered by a variable line supply to verify operation across the rated input window.
- Diagnostics & Load Regulation: Electronic dummy loads are applied simultaneously across all output rails. Using a Fluke 87V digital multimeter and an oscilloscope, we confirm that output voltage regulation stays within strict ±1% tolerances and peak-to-peak AC ripple remains under factory millivolt limits at 100% full load.
- Redundancy Switchover Test: In dual-rack setups, primary power is cut to verify that a redundant partner module assumes total load sharing instantaneously without dipping backplane logic voltages.
- Final Prep: Terminal screws are secured, calibration test data sheets are attached, and the PW502 is sealed inside anti-static moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Exceeding Backplane Current Budgets with High-Density I/O Cards: While the PW502 provides ample power for standard node configurations, packing a rack with high-density digital and analog I/O cards or HART-enabled field transmitters can push the supply near its thermal limit. Exceeding rated capacity causes foldback current limiting, leading to mysterious CPU brownouts.
❗ Hot-Swapping Without Verifying Redundant Partner Status: Although the PW502 supports hot-swapping in redundant chassis arrangements, pulling a failed supply without verifying that the adjacent partner module reads “ONLINE / READY” on your CENTUM engineering station will instantly drop the node backplane and trip process loops.
❗ Neglecting Periodic Dust Clearance on Ventilation Grills: Mounting the PW502 in tightly sealed enclosures without checking cabinet filter cleanliness traps internal heat. Over time, elevated operating temperatures dry out internal electrolytic smoothing capacitors, resulting in sudden output voltage sags.
Intent-Driven FAQ
Q: Can the PW502 module operate as a standalone single power supply, or must it be used in pairs? It can operate entirely as a standalone single power supply in non-redundant node chassis. However, matching it with a second PW502 module in adjacent slots establishes an active N+1 redundant power configuration for high-availability loops.
Q: What do the front-panel status LEDs indicate on the PW502? The LED indicators provide immediate visual health diagnostics: a green Power OK light indicates normal voltage output across all rails, while unlit or red indicators point to an input line failure, internal fuse blowout, or thermal overload trip.
Q: Is the PW502 compatible across both CENTUM CS3000 and CENTUM VP systems? Yes. The PW502 power supply series is engineered for seamless cross-generation compatibility within Yokogawa node chassis families, though you should always verify exact suffix codes (e.g., -10 vs -20) against your hardware manual.
Q: Does the PW502 require software configuration or programming? No. The PW502 is a pure hardware power conversion and distribution module. It operates independently of the control software, requiring no firmware downloads or software address assignments.
Q: What should I check first if a newly installed PW502 fails to output backplane power? First, measure the incoming primary voltage at the terminal connections to ensure it falls within operational tolerances. Next, verify that the module is firmly pushed home into the backplane edge connector and that the module’s internal input fuse has not blown due to an upstream transient surge.
