Woodward easYgen-3200 | Genset Controller

Description

Woodward easYgen-3200 | Genset Controller

Product Introduction

When a standby generator has to synchronize with a live bus instead of simply starting and taking load, the controller becomes the difference between a controlled transfer and an ugly breaker trip. The Woodward easYgen-3200 was built for exactly that class of genset application—synchronization, generator protection, load sharing, breaker control, and power-management logic in one dedicated controller.

The unit belongs to Woodward’s easYgen-3000 family and uses a front-panel configuration with an integrated graphical display. Depending on the exact package and part number, the platform supports generator-to-generator and generator-to-mains synchronization, mains-parallel operation, load sharing, automatic start/stop, import/export control, and engine/ECU monitoring. It can coordinate systems containing up to 32 generator sets—a substantial difference from a basic single-generator AMF controller.

The display is a 320 × 240 pixel, 5.7-inch LCD, while the controller architecture provides CAN interfaces plus serial communications for external equipment. The exact electrical configuration still matters; do not order a replacement solely because the front label says “3200” (the 1 A and 5 A CT versions are not interchangeable by assumption).

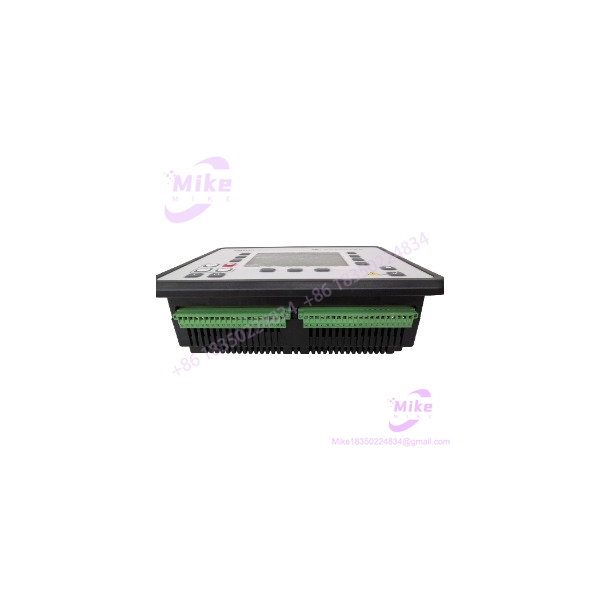

easYgen-3200

Key Technical Specifications

The published easYgen-3100/3200 documentation confirms the CAN, RS-232, and RS-485 interfaces and identifies the 3200 as the front-panel display variant.

Application Scenarios & Engineering Pain Points

With vs. Without

Without a dedicated synchronizing controller:
A conventional generator controller may start the engine and monitor basic parameters, but complex paralleling requires additional synchronization, breaker-management, load-sharing, and protection functions.

With the easYgen-3200:
Those functions are consolidated into the genset controller architecture. Generator voltage, frequency, phase relationship, breaker status, engine information, and power-management logic can be coordinated from the same control platform.

High-Demand Parallel Generation

A facility operating several diesel or gas generators may need the machines to share load rather than allowing one unit to carry the majority of the plant demand. The easYgen-3200 supports load-sharing functions across systems of up to 32 generator sets.

Peak-Shaving Applications

For a plant facing expensive demand peaks, the controller can participate in peak shaving and mains-parallel operation, allowing generator capacity to supplement the utility supply when the configured operating conditions are reached.

Cogeneration / CHP

Cogeneration systems introduce a different control problem: the generator is not simply emergency equipment sitting idle. It may operate in parallel with the utility and require controlled loading, unloading, synchronization, and engine protection. The easYgen-3200 platform supports these operating modes.

Legacy Generator Replacement

This is where engineers need to slow down.

The word “3200” alone is not enough to establish interchangeability. Woodward documentation identifies different CT configurations and package versions, while later replacement documentation provides migration paths for legacy easYgen controllers. Verify the complete ordering code, CT rating, firmware/application configuration, and wiring before treating a replacement as plug-compatible.

QA & Live Testing SOP

For a verified easYgen-3200, the sensible QC process is more than checking whether the LCD illuminates.

1. Identity Verification

• Confirm manufacturer marking and complete part number.
• Record serial/production information where available.
• Check housing, terminal blocks, display, connectors, and mounting hardware.
• Match the electrical variant against the customer’s existing controller.

2. Visual Inspection

• Inspect PCB and terminal areas for corrosion, contamination, heat damage, cracked components, or modified wiring.
• Examine the LCD and keypad/soft-key interface.
• Check enclosure and mounting points.

3. Powered Functional Test

• Power the controller using a controlled DC supply within the applicable specification.
• Confirm startup behavior and display operation.
• Verify configuration access and operator-interface response.
• Check digital and analog I/O where the test fixture supports it.

4. Communications Test

• Test the applicable CAN / RS-232 / RS-485 interfaces.
• Where the hardware and test rack permit it, verify the communication handshake with the corresponding test device or simulator.
• Validate Modbus communication on applicable configurations.

5. ESD-Safe Packaging

• Protect the controller in an antistatic bag.
• Prevent connector and terminal damage during transit.
• Use shock-resistant packaging with adequate immobilization.

A controller that merely powers up is not automatically a field-ready controller. Communication, measurement, I/O, and configuration behavior deserve testing too.

Field Engineer’s Pitfall Guide

❗ Do Not Match by “3200” Alone

The easYgen-3200 exists in different electrical configurations. Documented versions include 1 A and 5 A CT configurations, and package variants can change available functionality and I/O.

Match the complete part number.

For example, an easYgen-3200-1-P1 and an easYgen-3200-5-P1 are not something you should casually substitute because both carry the 3200 designation.

❗ Firmware and Parameter Compatibility Matter

The controller is configurable, and generator protection, breaker logic, synchronization settings, CT ratios, voltage configuration, engine parameters, and communication settings all affect commissioning.

A physically identical controller can still behave incorrectly if the application configuration is wrong.

Back up the existing parameter file before replacement whenever the old controller remains accessible.

❗ Do Not Assume Hot-Swap Capability

This is generator-control equipment, not a conventional plug-in PLC I/O card.

Before removing the controller, isolate the relevant DC supply and follow the generator manufacturer’s shutdown and electrical isolation procedure. Confirm breaker status and stored energy conditions first—especially on mains-parallel installations.

Intent-Driven FAQ

Can I replace an easYgen-3200 with any other easYgen-3200?

No. The complete ordering code matters. CT input rating, package version, electrical configuration, I/O arrangement, firmware/application configuration, and mounting details must be checked. The 3200 designation identifies the controller family, not every electrical variant.

Is the easYgen-3200 suitable for multiple generator synchronization?

Yes. The platform is designed for generator-to-generator, generator-to-mains, and multiple-unit mains-parallel applications, with published documentation specifying synchronization capability for up to 32 generator sets.

Does the easYgen-3200 have a built-in display?

Yes. The 3200 is the front-panel version of the easYgen-3000 family and incorporates a 5.7-inch, 320 × 240 graphical LCD with programmable soft keys.
