Woodward easYgen-3200-5/P1 | Genset Controller
Product Introduction
A generator controller can look perfectly healthy on a workbench and still fail the first synchronization attempt in the field. The Woodward easYgen-3200-5/P1 sits in that critical control layer, handling generator measurements, synchronization, breaker control, protection, and load-management functions for industrial gensets.
The easYgen-3200-5/P1 is specifically the 5 A CT / P1 configuration of the easYgen-3200 family. The documented hardware provides a front-panel color display, configurable I/O, two CAN interfaces, and RS-232/RS-485 communications. It is intended for applications ranging from isolated generator operation to multi-unit parallel operation and mains-parallel systems.
The part-number distinction is important. Woodward documentation currently maps 8440-2050 to easYgen-3200-5/P1, while older documentation and legacy inventories may show 8440-1992 for the same model designation. Do not approve a substitution from the model name alone—verify the complete part number, hardware revision, wiring, and existing parameter set first.

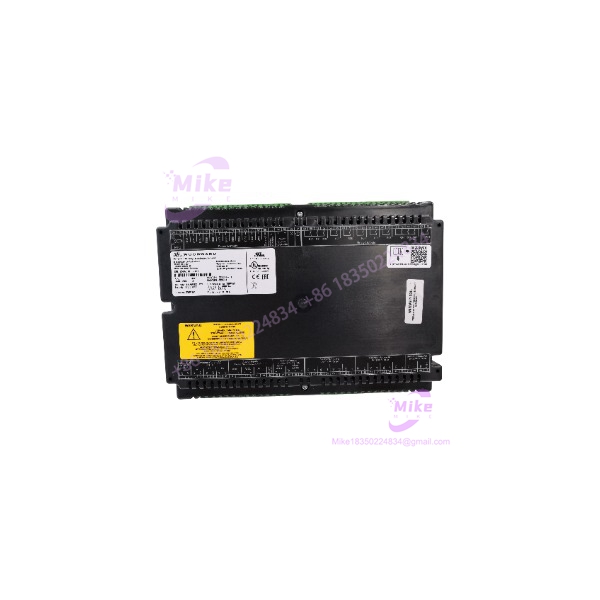

easYgen-3200-5/P1
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model | easYgen-3200-5/P1 |
| Current Configuration | 5 A CT |
| Typical Current P/N | 8440-2050 |
| Earlier P/N | 8440-1992 |
| Product Family | easYgen-3000 |
| Controller Type | Generator-set management / synchronization |
| Display | 5.7-inch color LCD |
| Display Resolution | 320 × 240 pixels |
| Control Supply | 12/24 VDC class |
| CAN Interfaces | 2 |
| Serial Interfaces | RS-232 / RS-485 |
| Configurable Inputs | Up to 12 alarm inputs |
| Configurable Outputs | Up to 12 outputs |
| CT Input | 5 A nominal |
| Installation | Front-panel mounting |
| Main Functions | Synchronization, breaker control, protection, load sharing, genset management |
Woodward’s own product catalog lists 8440-2050 as easYgen-3200-5/P1, alongside the 1 A version and P2 variants.
Application Scenarios & Pain Points
Multi-Generator Parallel Operation
When several diesel or gas generators feed one bus, simply starting the engines is the easy part.
The difficult part is coordinating voltage, frequency, phase angle, breaker status, load sharing, and protection without creating nuisance trips. The easYgen-3200-5/P1 is designed for this type of generator synchronization and parallel-operation architecture.
5 A CT Switchgear
Specific condition: existing switchgear uses 5 A CT secondaries.
This is where the “-5” designation becomes an engineering requirement rather than a catalog detail.
A 5 A CT installation should not be casually converted to a 1 A controller. Current scaling affects generator power measurement, protection thresholds, load sharing, and potentially breaker-control logic.
Match the CT secondary rating before energizing the replacement.
Legacy Generator Control Retrofit
A common field problem looks like this:
Existing controller fails → replacement arrives → unit powers up → generator starts → synchronization fails.
The controller itself may be fine.
The problem can be an incorrect CT ratio, voltage-sensing configuration, breaker feedback polarity, CAN engine configuration, or a missing parameter file. This is why the easYgen-3200-5/P1 should be treated as a configured control system rather than a simple plug-in electronic component.
Mains-Parallel Applications
For peak shaving, cogeneration, or other grid-parallel applications, the controller must coordinate the generator with the utility rather than simply operate an isolated engine.
That requires controlled synchronization and breaker management, followed by appropriate load or power-control behavior.
Replacement of Older 8440-1992 Hardware
This deserves special attention.
Woodward documentation identifies 8440-1992 as an earlier easYgen-3200-5/P1 number and 8440-2050 as the later listed P1 number. The distinction matters when preparing a legacy-rack migration because hardware revision, firmware, I/O configuration, and parameter compatibility should all be checked.
QA & Live Testing SOP
A serious procurement inspection should go beyond “LCD turns on.”
Origin & Identity Verification
- Verify Woodward manufacturer markings.
- Record the complete part number.
- Record hardware/production revision.
- Check label quality and serial information.
- Inspect seals, enclosure, connectors, and terminal blocks.
Electrical Inspection
We inspect the controller for:
- Corrosion
- Contamination
- Heat damage
- PCB modification
- Damaged terminals
- Cracked housing
- Connector deformation
The 5 A CT configuration receives particular attention.
Live Functional Test
On a controlled test rack:
- Apply the specified DC control supply.
- Verify startup and display initialization.
- Exercise the local HMI.
- Simulate generator voltage/current signals.
- Verify measurement response.
- Test digital input/output behavior where supported.
- Verify CAN communications.
- Test RS-485/Modbus communication where applicable.
- Confirm breaker-control and synchronization logic through the appropriate simulator.
We would rather find a communication-handshake problem on the bench than discover it after a generator is carrying plant load.
Packaging
After testing:
- Place the controller in an ESD-safe antistatic bag.
- Protect terminal blocks and connectors.
- Immobilize the unit inside shock-resistant packaging.
- Keep test records associated with the serial number.
Field Engineer’s Pitfall Guide
❗ Do Not Confuse P1 and P2
Woodward lists separate P1 and P2 configurations within the easYgen-3200 family. The fact that two controllers share the 3200-5 designation does not establish electrical or application-level interchangeability.
If the existing unit is specifically easYgen-3200-5/P1, match that package unless the replacement has been formally engineered for the application.
❗ 8440-1992 and 8440-2050 Need Careful Verification
The legacy 8440-1992 is documented as easYgen-3200-5/P1, while Woodward’s current catalog lists 8440-2050 for easYgen-3200-5/P1. That does not mean you should assume an automatic drop-in replacement without checking the actual application.
Compare:
- Firmware
- Hardware revision
- I/O configuration
- Parameter file
- Terminal assignment
- Communication setup
- Generator voltage configuration
- CT scaling
❗ Never Forget the CT Circuit
A 5 A CT circuit can carry dangerous energy when improperly opened under load.
Before working on CT wiring, follow the site’s electrical safety procedure and use the appropriate CT shorting/isolation arrangement. Do not treat CT terminals like ordinary low-voltage digital inputs.
Intent-Driven FAQ
What is the Woodward easYgen-3200-5/P1?
It is a 5 A CT generator-set controller in Woodward’s easYgen-3000 family, designed for generator measurement, synchronization, breaker control, protection, load sharing, and parallel-power applications.
What is the part number for easYgen-3200-5/P1?
Woodward’s current catalog identifies 8440-2050 as easYgen-3200-5/P1. An earlier part number, 8440-1992, is also documented for the easYgen-3200-5/P1 configuration. Verify the exact revision and application before purchasing.
Is easYgen-3200-5/P1 a 5 A or 1 A controller?
5 A. The “-5” designation identifies the 5 A CT configuration. Woodward separately lists easYgen-3200-1/P1 as the 1 A version.
Does easYgen-3200-5/P1 support Modbus?
The documented hardware provides RS-232 and RS-485 serial interfaces, in addition to two CAN interfaces. Modbus communication can be used where supported by the configured application and interface.
Can I replace 8440-1992 directly with 8440-2050?
Do not assume a blind drop-in replacement. Both are documented in connection with the easYgen-3200-5/P1 designation, but a field replacement should still be checked against hardware revision, firmware, terminal wiring, I/O assignment, and the existing configuration.
