Woodward 9907-205 | Hand-Held Programmer for DSLC/MSLC Core Category
Dynamic Product Introduction
Tuning or troubleshooting a parallel generator bus requires immediate, on-site access to controller registers without dragging a heavy laptop onto the switchgear floor. The Woodward 9907-029 [sic: 9907-205] operates as a purpose-built hand-held programmer engineered specifically to interface with Woodward DSLC and MSLC modules. Unlike fragile commercial laptops prone to serial-adapter dropouts and screen glare under harsh plant lighting, this dedicated utility tool provides reliable RS-422 command handshakes and a high-contrast physical interface built to survive harsh industrial environments.
Stepping past cumbersome legacy calibration methods, this portable diagnostic unit streamlines PID adjustments, deadband tweaks, and alarm clearing directly at the panel face. Field service history proves that having a dedicated programming node eliminates communication protocol friction during emergency commissioning and routine maintenance turnarounds.

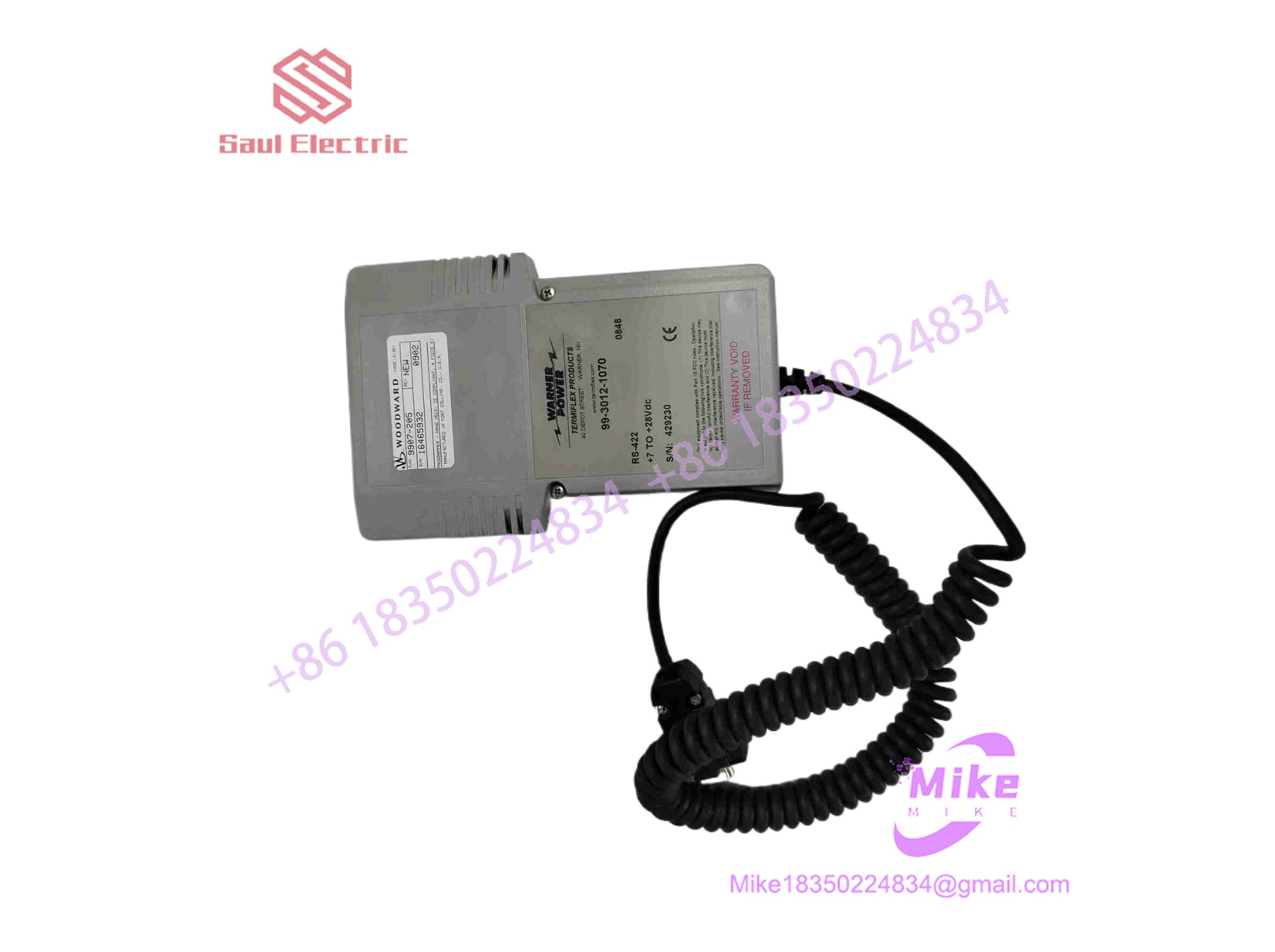

9907-205
Key Technical Specifications
- Communication Interface: RS-422 serial protocol link
- Power Supply Requirements: 7 to 28 VDC operating range (sourced via controller port or external battery pack)
- Compatible Controller Series: Woodward DSLC, MSLC, and related digital load-sharing platforms
- Display Type: Integrated alphanumeric LCD screen with high-visibility backlight
- Keypad: Tactile multi-button membrane layout optimized for gloved industrial use
- Operating Temperature Range: 0^\circC to +55^\circC (+32^\circF to +131^\circF)
- Enclosure Type: Rugged high-impact ABS plastic field case with protective boot
- Connection Cable: Heavy-duty coiled data cable with multi-pin circular connector
- Weight: ~0.91 kg (2 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying legacy service tools and portable programmers requires thorough validation to ensure data packet integrity and interface reliability.
- Inbound Verification: Incoming units are cross-referenced against official OEM manufacturing lots. The physical casing, keypad tactility, and coiled umbilical cord are inspected under magnification for micro-cracks or cable strain fatigue.
- Live Simulation: Technicians connect the programmer to an active, bench-mounted Woodward DSLC/MSLC test rack running authentic controller firmware.
- Diagnostics: Communication handshakes are tested across full baud rate spectrums. Menu navigation, screen contrast, key matrix response, and parameter write/read cycles are verified through multiple iterative script passes.
- Final Prep: Once data transmission logs confirm zero packet loss, the unit is sanitized, interface pins are treated with anti-corrosive protectant, and the tool is secured in a foam-lined transit case.
The Field Engineer’s Pitfall Guide
❗ Hot-Plugging the Umbilical Cable During Active Communication: Forgetting to isolate power or abruptly pulling the RS-422 connector while a data write operation is underway can corrupt controller memory registers or lock the serial port interface. (I’ve seen technicians brick a configuration bus loop simply by yanking the service cable mid-save.) Always exit configuration menus properly before disconnecting.
❗ Using Incorrect Auxiliary Power Voltages: Powering the hand-held unit from an unregulated or misconfigured external DC source exceeding 28 VDC will fry the internal power regulation board. Always verify auxiliary voltage levels with a digital multimeter prior to hookup.
❗ Ignoring Ground Potential Differences: Connecting the programmer to a control panel operating on a floating or severely offset earth ground relative to the service technician can induce ground loops, injecting noise into the RS-422 transceiver chips. Always ensure proper cabinet bonding before linking.
Intent-Driven FAQ
Will using this programmer alter my running controller logic automatically?
No. The 9907-205 hand-held programmer is an active interrogation and configuration tool. It only writes data or changes tuning parameters when explicitly commanded by the user through the menu navigation interface.
Is this programmer compatible with modern Windows-based PC software tools?
No. The 9907-205 is a standalone hardware terminal engineered specifically for direct, text-menu communication with legacy DSLC and MSLC hardware blocks. It does not act as a pass-through adapter for modern PC configuration software suites.
What causes the programmer display to show blank or garbled characters?
A blank or garbled screen typically points to incorrect baud rate synchronization, a failing internal contrast potentiometer, or a damaged data cable pin causing dropped RS-422 packets. Reseating the multi-pin connector usually resolves transient transmission faults.
Can the 9907-205 be used on Woodward 505 or MicroNet systems?
No. This specific programmer model is tailored explicitly for the communication protocols used by the DSLC and MSLC generator control and load-sharing product lines. Attempting to use it on MicroNet or 505 ports will yield incompatible communication responses.
What kind of warranty accompanies surplus 9907-205 units?
Reputable industrial suppliers typically back tested surplus or refurbished service tools with a standard 1-to-2 year replacement warranty, supported by a bench-test verification sheet confirming RS-422 port health and menu navigation functionality.
