Woodward 8406-121 | EGCP-2 Engine Generator Control Package
Architect’s Product Breakdown
The Woodward 8406-121 operates as a core model within the EGCP-2 controller family, engineered specifically for standby and prime power generator sets. It combines engine monitoring, protection logic, synchronizing check functions, and kW/kVAR load sharing into a single door- or panel-mounted hardware package. By integrating these discrete control loops into a single microprocessor unit, it reduces external relay wiring and simplifies switchgear architecture.
Configuration and diagnostic data are accessed directly through the front-panel tactile keypad and dual LCD screens, or remotely via serial communication links using Woodward’s service tool software. Plant engineers must ensure proper isolation of potential transformer (PT) inputs—rated for 50–150 VAC—to prevent signal distortion or front-end measurement errors during live bus synchronization.
Replacing an older EGCP-2 unit with the 8406-121 maintains form-factor and terminal compatibility, minimizing downtime during retrofits or emergency maintenance cycles.

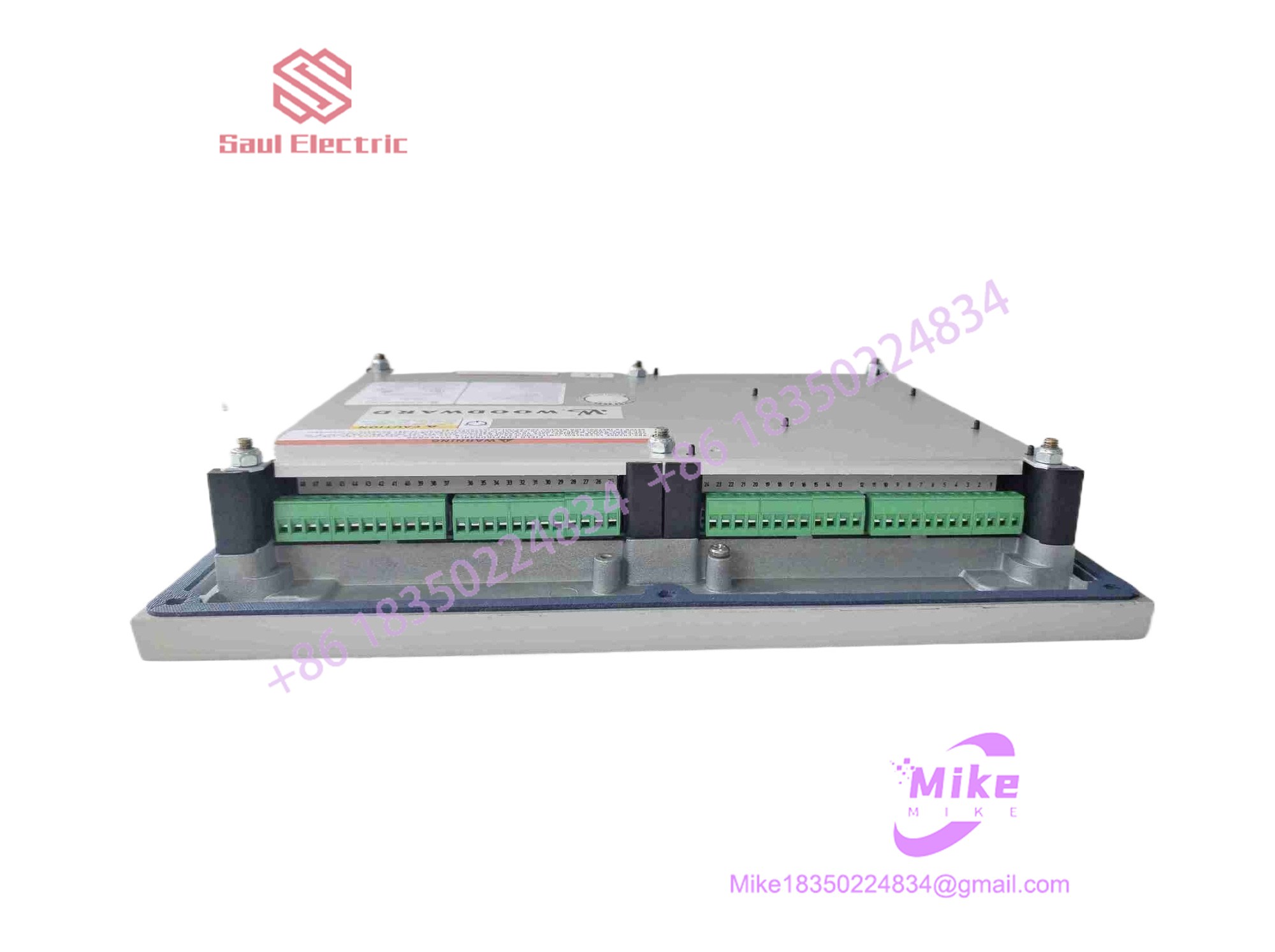

8406-121
Key Technical Specifications
| Parameter | Technical Specification |
| Operating Voltage (DC) | 9 to 32 VDC (SELV, 24V Nominal) |
| Potential Transformer (PT) Input | 50 to 150 VAC sensing |
| Display Type | Dual Backlit LCD Screens with Keypad |
| Physical Dimensions | 282 mm x 358 mm x 69 mm (11.1 in x 14.1 in x 2.7 in) |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -40°C to +105°C (-40°F to +221°F) |
| Humidity Tolerance | Up to 95% at 20°C to 55°C (non-condensing) |
| Shipping Weight | ~2.9 kg (6.4 lbs) |
Field Engineer’s Pitfall Guide
- WARNING: PT Voltage Scaling Errors. Mismatching the potential transformer (PT) voltage ratio settings in the software configuration versus the physical transformer output will cause severe synchronization blockades and incorrect metering displays. Verify primary and secondary PT multipliers before closing breakers.
- WARNING: Battery Supply Droop. Dropping below the 9 VDC minimum threshold during heavy engine cranking cycles will cause the controller to experience a brownout reset, clearing active alarm states and aborting start sequences. Ensure auxiliary control power UPS systems are stable.
- WARNING: Communication Port Grounding. Tying communication cable shields at both ends can induce ground currents across the serial line, resulting in intermittent packet drops during remote SCADA polling.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspection of OEM branding, membrane switch integrity, display screen backlighting, and rear terminal block connector pins.
- Bench Power & Boot Test: The controller is mounted to an isolated test bench, powered via a regulated 24 VDC source, and verified for clean processor boot behavior and error-free screen initialization.
- I/O & Protection Simulation: Technicians inject simulated AC voltage/frequency inputs and check discrete alarm/shutdown parameters for oil pressure, coolant temperature, and battery voltage logic.
- Final Packaging: Units are sealed in anti-static moisture barrier bags and packed with high-density foam cushioning to prevent vibration damage during transit.
Technical FAQ
Can I hot-swap the 8406-121 controller while the generator is running?
No. Extracting or replacing the EGCP-2 module while the engine is online disrupts critical speed bias, protection monitoring, and breaker control lines, leading to an immediate plant trip. Perform swaps during planned outages.
Do I need specialized software to program a replacement unit?
Yes. While basic parameter tweaks can be performed via the front keypad, uploading complete configuration profiles or updating firmware requires Woodward’s service tool software and a serial communication cable.
Are configuration settings lost during complete battery disconnection?
No. All site-specific parameters, calibration curves, and protection setpoints are saved in non-volatile internal memory, persisting safely through power interruptions and total battery removal.
What causes an “Sync Check Error” on the dual LCD display?
This typically occurs when generator voltage, phase angle, or frequency drift outside of the tight permissive windows defined in the synchronization setup menu, or due to incorrect PT wiring phase rotation.
