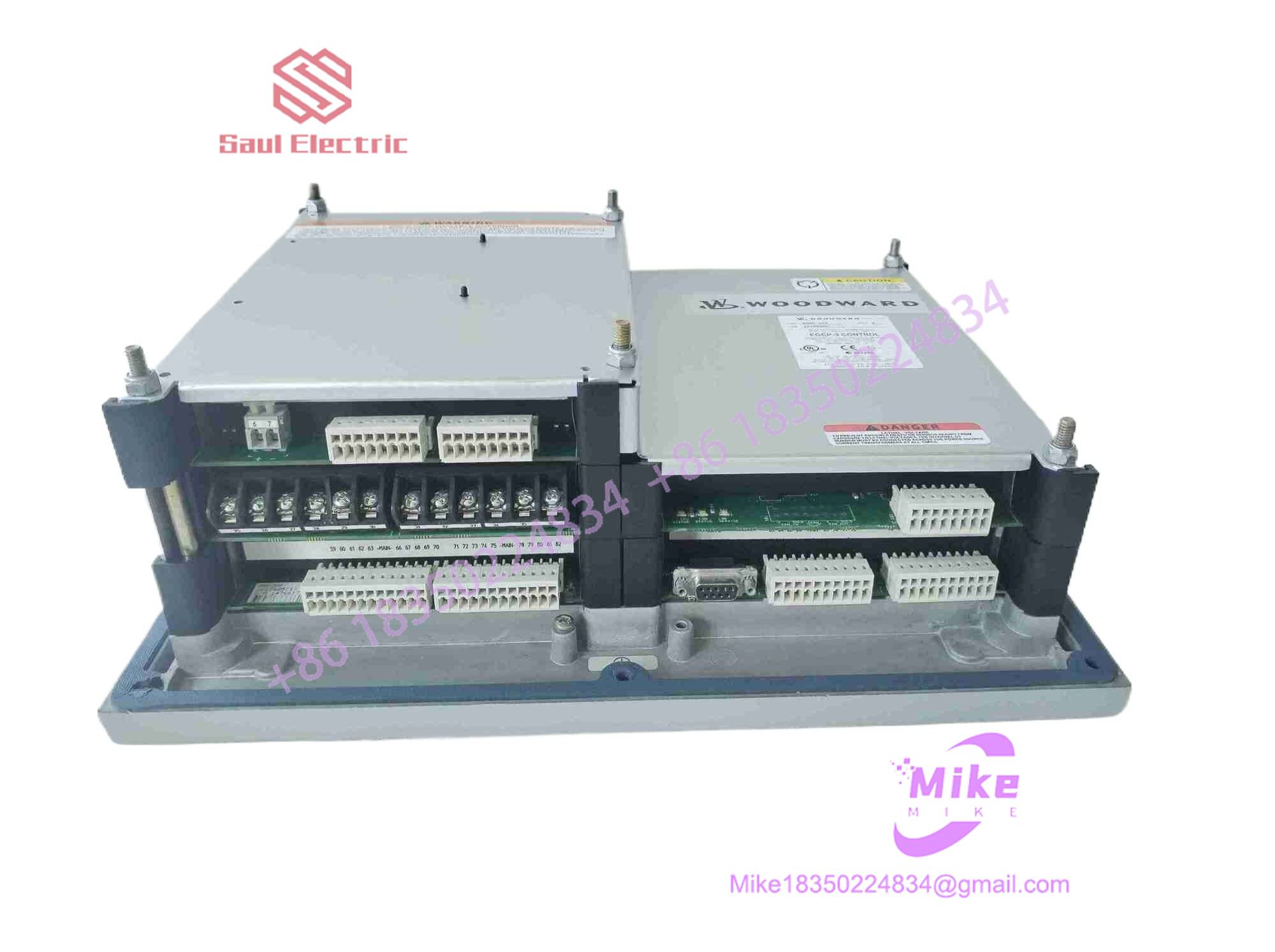

Woodward 8406-113 | EGCP-3 Operator Control Panel
Architect’s Product Breakdown
The Woodward 8406-113 serves as the operator interface terminal (HMI) for the EGCP-3 (Engine Generator Control Package) system architecture. Positioned on the front swing-door of switchgear cabinets or control panels, it gives operators real-time visibility into vital engine and generator parameters—including voltage, frequency, bus synchronization status, and active load sharing metrics. Rather than handling heavy-duty internal logic execution directly, this unit acts as the primary visual display and command entry bridge, communicating directly with the core EGCP-3 processor module.
Replacing or upgrading this interface requires verifying firmware and software version compatibility with the main controller backplane. Because it manages local operator inputs and alarm acknowledgments, any physical damage to the keypad membrane or display backlight compromises local visibility during a plant black-start or emergency manual intervention.
Panel integration demands careful cutout sizing and proper gasketing to maintain the cabinet’s environmental rating against dust and moisture ingress. Deploying a genuine 8406-113 ensures seamless communication handshakes without forcing modifications to existing door layouts or wiring harnesses.
8406-113
Key Technical Specifications
| Parameter | Technical Specification |
| System Compatibility | Woodward EGCP-3 Control Architecture |
| Interface Type | Digital Display and Tactile Keypad Operator Panel |
| Communication Links | Dedicated internal network/serial connection to main controller |
| Physical Dimensions | 14.3 in x 11.3 in x 5.3 in (36.2 cm x 28.6 cm x 13.3 cm) |
| Mounting Style | Panel-mount / Door-mount configuration |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Enclosure Protection | Front panel gasket sealed (NEMA 4X / IP54 equivalent when mounted) |
| Physical Weight | 4.2 kg (9 lbs 5.3 oz) |
Field Engineer’s Pitfall Guide
- WARNING: Communication Baud Rate Mismatches. Replacing an older panel version with a newer revision without checking the internal network address or communication baud settings will result in a permanent “Comm Error” fault on the screen. Verify node dip-switches and software configurations before closing the panel door.
- WARNING: Gasket Compression Failures. Over-tightening the mounting studs during installation distorts the plastic bezel and breaks the environmental seal, allowing moisture and corrosive plant atmospheres to seep behind the display. Use a torque-limiting driver.
- WARNING: Live Ribbon Cable Seating. Never plug or unplug the internal display ribbon cables or communication harnesses while the control panel power supply is energized. This can latch logic errors or fry onboard communication transceiver chips.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspection of OEM branding, membrane switch tactile response, LCD/VFD display clarity, and rear connector pin integrity.
- Bench Power & Communication Handshake: The interface is connected to a live EGCP-3 test rig powered by an isolated DC source to verify proper boot sequences, backlight stability, and error-free data polling.
- Keypad Matrix Testing: Every individual tactile button on the front membrane is exercised to ensure proper contact closure and register recognition on the display processor.
- Final Packaging: Units are sealed in anti-static moisture barrier bags and packed inside custom shock-absorbing foam containers to protect the display screen from transit impacts.
Technical FAQ
Can I hot-swap the 8406-113 operator panel while the generator is running?
Yes, data communication links allow live connection, but it is not recommended. Disconnecting the panel drops local monitoring and HMI oversight. The core engine controller will keep running, but local manual trip/start commands from this panel will be lost until reconnected.
Does this operator panel store system configuration files?
No. The primary configuration files, PID tuning parameters, and site-specific engine logic reside in the main EGCP-3 processor module, not on the 8406-113 display interface.
What causes a blank screen or missing characters on the display?
A blank screen is typically caused by a failed internal DC power feed from the backplane, a loose communication ribbon cable, or a degraded display contrast/backlight module resulting from prolonged high-ambient cabinet temperatures.
Is the front keypad membrane replaceable separately?
No. The unit is serviced as an integrated sub-assembly. Field replacement requires swapping the complete 8406-113 module to maintain structural integrity and panel sealing ratings.
