Woodward 5501-365 New Surplus | High-Density Combo I/O FTM
Product Introduction
In heavy industrial turbomachinery and power generation control architectures, clean field wiring interface termination is critical for maintaining signal accuracy and fault-tolerant operation. The Woodward 5501-365 is an Analog Combo TMR Field Terminal Module (FTM) engineered for Woodward’s MicroNet Simplex, MicroNet Plus, and MicroNet TMR (Triple Modular Redundant) digital control platforms. It serves as the physical intermediate barrier between rugged field instrumentation and high-performance MicroNet I/O rack cards (such as the 5466-253 High-Density Combo module).
Designed for easy DIN-rail mounting inside system control cabinets, the 5501-365 simplifies installation by bringing Magnetic Pickup (MPU) speed sensor wiring, 4-20 mA analog inputs, and proportional actuator driver outputs into organized screw terminal blocks. These signals are consolidated into high-density multi-conductor cables that plug directly into the MicroNet chassis, reducing cabinet wiring clutter, improving noise immunity, and streamlining maintenance during plant turnarounds.

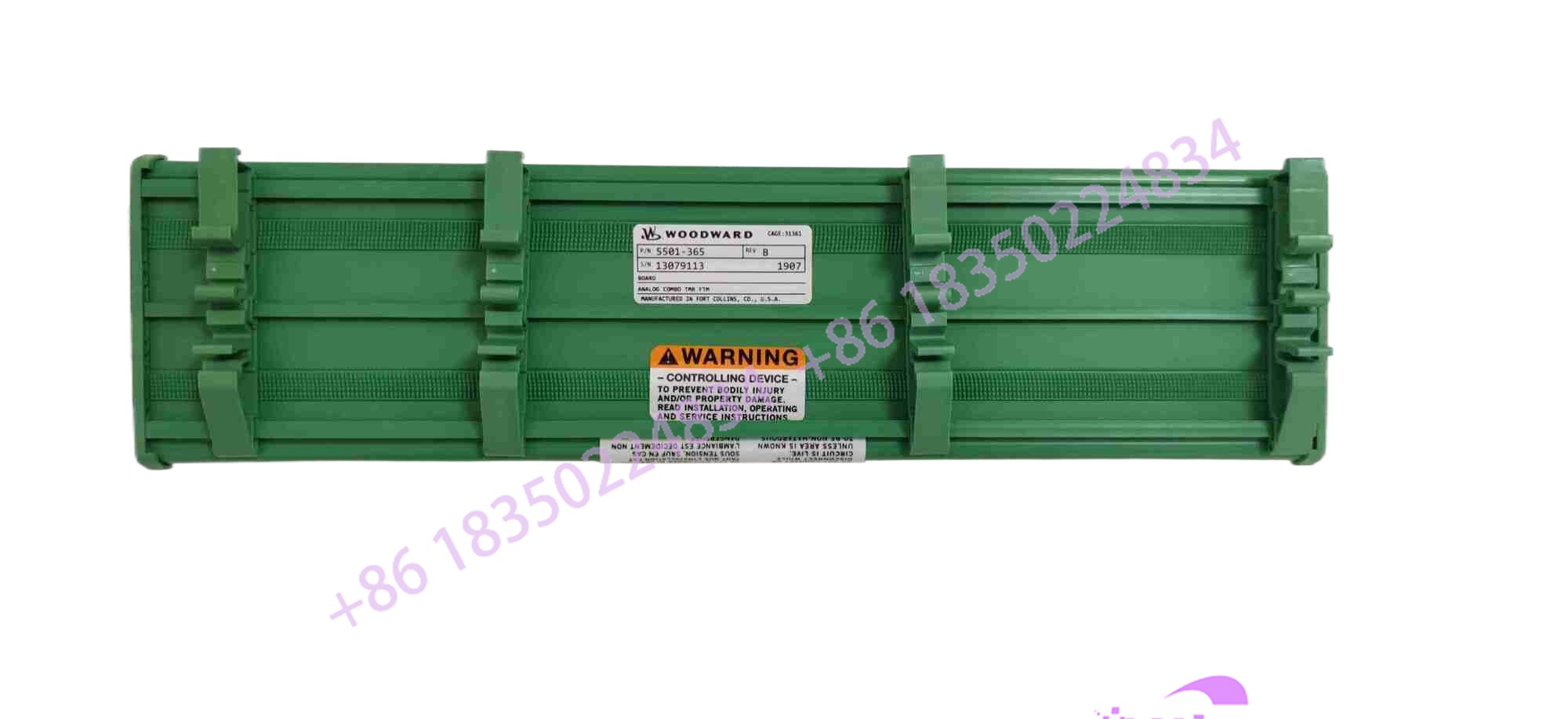

5501-365
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | Analog Combo TMR Field Terminal Module (FTM) |
| System Compatibility | Woodward MicroNet Simplex, MicroNet Plus, MicroNet TMR |
| Matching Rack Cards | Designed for 5466-253 HD Combo and legacy MicroNet I/O cards |
| Supported Signal Types | MPU speed inputs, 4-20 mA / 0-5 V analog inputs, proportional actuator outputs |
| Connector Interface | Heavy-duty screw terminal blocks to high-density multi-pin connectors |
| Mounting Standard | Standard 35 mm DIN-rail panel mount |
| Operating Temperature | -40°C to +70°C standard industrial panel rating |
| Humidity Rating | 5% to 95% non-condensing |
Application Scenarios & Pain Points
- Gas & Steam Turbine Governing: High-speed MPU speed signals and fuel actuator driver lines require isolated, noise-shielded termination before hitting the processor card. The 5501-365 provides dedicated ground and terminal termination points to prevent signal cross-talk.
- Triple Modular Redundant (TMR) Retrofits: In TMR configurations, redundant signals from multiple channels route through structured FTM blocks to ensure voting integrity at the CPU level.
- Outage Cabinet Maintenance & Quick Swaps: Having dedicated DIN-rail FTMs allows field technicians to replace chassis rack cards without rewiring field screw terminals, drastically reducing outage downtime and wiring error risks.
QA & Live Testing SOP (Trust Signal)
To ensure field readiness for critical turbomachinery applications, every 5501-365 FTM undergoes a multi-step quality audit:
- Physical & Terminal Block Inspection: Inspected for terminal block thread health, cold solder joints on backplane headers, mechanical integrity of DIN-rail clips, and freedom from environmental contamination or oxidation.
- Continuity & Trace Verification: High-precision point-to-point resistance testing across all terminal positions to verify low-resistance signal paths through to the multi-pin cable connector.
- Signal Isolation & Noise Audit: Insulation resistance verified between adjacent channels and ground planes to prevent signal bleed on 4-20 mA instrumentation loops and high-frequency MPU lines.
- Protective Packaging: Sealed inside anti-static shielding bags with moisture desiccant, cushioned in custom-cut foam for safe global transit.
Field Engineer’s Pitfall Guide
- ❗ Shielding & Grounding Continuity: MPU speed sensor wiring is highly sensitive to electromagnetic interference (EMI). Always ensure shield drain wires are grounded at the dedicated FTM ground terminal and NOT at both ends to avoid ground loops.
- ❗ Cable Keying & Pin Alignment: Verify that multi-pin connecting cables between the 5501-365 FTM and the MicroNet I/O module are securely latched and properly keyed to avoid bent connector pins.
- ❗ Actuator Current Limits: When wiring proportional actuator outputs, verify loop resistance to ensure the total driving current stays within the rated max specification (up to 25 mA or higher depending on actuator line).
Intent-Driven FAQ
What is the primary function of the Woodward 5501-365?
The 5501-365 is a Field Terminal Module (FTM) that provides screw-terminal connection points for field devices (such as speed pickups, analog sensors, and actuators) and connects them via shielded cables to Woodward MicroNet I/O modules.
Which Woodward I/O modules use the 5501-365 FTM?
It is primarily utilized with Woodward High-Density Combo (HD Combo) I/O cards, such as the legacy 5466-253 TMR module in MicroNet Simplex, Plus, or TMR systems.
Does the 5501-365 require an external power supply to operate?
No. The 5501-365 is a passive/routed terminal board. Power for loop-powered transmitters or field devices is provided either through the MicroNet I/O card or via external field loop power supplies routed through the board.
Can I replace a 5501-365 without rewiring the main MicroNet CPU rack?
Yes. Because field wires land on the 5501-365 screw terminals, you can disconnect the high-density cable from the rack without disconnecting individual field wires, making maintenance safe and straightforward.
What warranty is provided for surplus/refurbished 5501-365 units?
All certified surplus and refurbished units are backed by a standard 12-month replacement warranty supported by full point-to-point bench testing.
