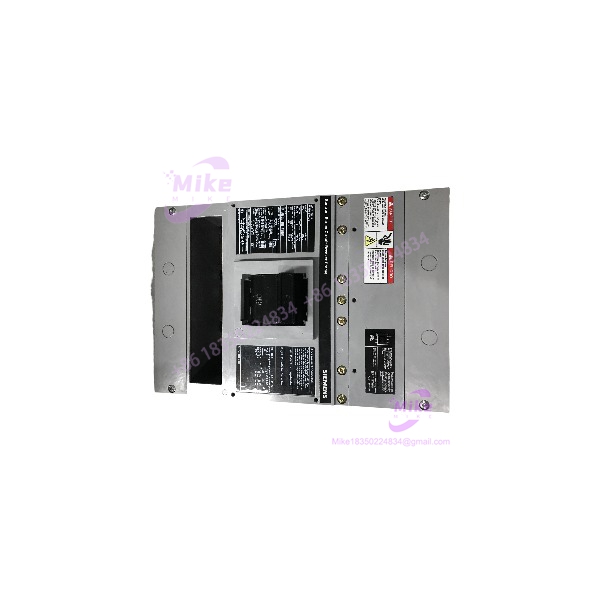

Siemens HJD63F400 | 3-Pole 600V Molded Case Breaker

Description

Siemens HJD63F400 | 3-Pole 600V Molded Case Breaker



Dynamic Product Introduction

The Siemens HJD63F400 is not simply a 400 A fixed-trip breaker. Siemens catalogs it as the 3-pole 400 A JD-frame, designed around an interchangeable trip-unit system. That distinction is significant for replacement work: the same HJD63F400 frame can be configured for continuous current ratings from 200 A through 400 A by selecting the appropriate JD63 trip unit.

The supplied marketplace unit needs additional identification before shipment. Its current eBay title says “Siemens HJD63F400 Circuit Breaker Frame 3P 600V 300A Trip,” while the item-specific fields identify the MPN/model as HJD63F300 and list a 400 A maximum amperage. In other words, the seller’s physical unit appears to combine an HJD63F400 frame with a 300 A trip indication. That is plausible within the Siemens interchangeable-trip architecture, but it should be documented exactly as physically configured rather than simplified to “400 A breaker.”

Key Technical Specifications

• Manufacturer: Siemens
• Model / Frame Catalog Number: HJD63F400
• Product Family: JD 400 A Frame SENTRON Series
• Breaker Type: HJD6-A / HJXD6-A family
• Poles: 3
• AC Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• DC Voltage Rating: 500 VDC for the 3-pole configuration
• Frame Rating: 400 A
• Trip Arrangement: Interchangeable trip
• Available Continuous Current Ratings: 200, 225, 250, 300, 350, and 400 A with corresponding JD63 trip units
• 240 VAC Interrupting Rating: 100 kA RMS symmetrical for the HJD6-A family
• 480 VAC Interrupting Rating: 65 kA RMS symmetrical
• 600 VAC Interrupting Rating: 35 kA RMS symmetrical
• 250 VDC Interrupting Rating: 30 kA for the applicable 2-pole configuration; do not automatically apply this value to the 3-pole unit
• 500 VDC Interrupting Rating: 35 kA for the applicable 3-pole configuration
• Frame Dimensions: Approximately 7.5 in W × 11 in L × 4 in D for the applicable JD/HJD6 family enclosure geometry
• Trip Unit: Must be identified separately when purchasing or replacing the frame
• Mounting: JD-frame industrial breaker mounting; exact mounting arrangement must match the existing switchboard/panel
• Current eBay Condition: Used
• Current eBay Listing Price: US $900 at the time checked
• Current eBay Listing Return Policy: Seller does not accept returns
• Listing Location: Burlington, North Carolina, USA



Frame Versus Complete Breaker — Procurement Detail

For , the letter F is important. Siemens’ catalog separates the complete breaker, frame, and trip unit:

• = 3-pole 400 A frame
• HJD63B200–HJD63B400 = complete breaker configurations with corresponding continuous-current ratings
• JD63T200–JD63T400 = interchangeable trip units
• The same frame therefore does not establish that a 400 A trip is installed.

For a procurement listing, this is the point most likely to cause an expensive mistake. A buyer replacing a 300 A protection device should not receive a frame advertised as a 400 A complete breaker without knowing the actual trip-unit configuration.



Global Sourcing & Live-Test SOP

1. Inbound Verification

• Photograph the front, sides, terminals, mounting surfaces and all labels.
• Record the complete Siemens catalog number visible on the frame.
• Record the trip-unit catalog number separately.
• Verify pole count and terminal arrangement.
• Check the arc-chute area for cracking, carbon tracking or heat damage.
• Inspect line/load terminals for overheating and thread damage.
• Record any auxiliary contacts, shunt-trip devices, undervoltage releases or other accessories.
• Compare the physical unit against the purchase order before acceptance.

For this particular marketplace listing, verify the 300 A trip marking before shipment because the eBay title and item-specific model information do not align cleanly with the frame designation.

2. Mechanical Test

With the breaker completely de-energized:

• Operate the handle through ON/OFF/TRIP positions.
• Verify positive mechanical latching.
• Check the trip indicator.
• Confirm all poles operate together.
• Inspect the trip-unit mounting interface.
• Check terminal hardware for free movement and thread integrity.

Do not force a stiff mechanism. A breaker that appears cosmetically acceptable can still have a damaged latch mechanism from previous fault interruption.

3. Electrical Test

Testing should be performed using equipment and procedures appropriate for the breaker rating.

Recommended checks include:

• Pole-to-pole insulation resistance.
• Pole-to-ground insulation resistance.
• Main-contact resistance.
• Trip-unit functional verification.
• Mechanical trip operation.
• Current injection testing where required by the application.
• Verification of any installed auxiliary or accessory devices.

A Fluke meter is useful for basic continuity and resistance checks, but a multimeter alone does not prove that a 600 V, high-interrupting-capacity MCCB is fit for service.

4. Final Documentation

Record:

• Frame number
• Trip-unit number
• Accessory configuration
• Measured contact resistance
• Insulation test results
• Trip-test results
• Photographs before packaging
• Test date
• Technician identification

Package the breaker with the handle protected against impact. For long-distance shipment, protect the terminal assemblies and prevent the mechanism from being mechanically loaded by packaging material.



Field Engineer’s Pitfall Guide

❗ Do Not Equate With a 400 A Trip

This is the most important distinction. identifies the 400 A frame, while Siemens provides separate JD63 trip units for 200–400 A configurations. A frame number alone does not establish the installed protection setting.

❗ The Supplied eBay Listing Has a Part-Number Mismatch

The supplied listing is titled , but its item specifics show HJD63F300, and the title states 300 A Trip. This may simply reflect a 400 A frame fitted with a 300 A trip unit, but the seller’s photographs/nameplate should be treated as the controlling evidence for the actual unit being sold.

❗ Interrupting Capacity Depends on Voltage

For the HJD6-A family, Siemens documents 100 kA at 240 VAC, 65 kA at 480 VAC, and 35 kA at 600 VAC. Do not copy the 100 kA figure into a listing as a universal short-circuit rating. The system voltage and applicable certification determine which value matters.



Intent-Driven FAQ

What is Siemens ?

is the Siemens 3-pole 400 A JD-frame used with interchangeable trip units in the SENTRON JD-frame molded-case circuit breaker family. It is a frame designation, not by itself proof of a 400 A installed trip.

Is rated for 600 VAC?

Yes. Siemens catalogs the 3-pole HJD6 configuration for 600 VAC, with the corresponding HJD6-A interrupting rating of 35 kA RMS symmetrical at 600 VAC.

Can an use a 300 A trip unit?

Yes. Siemens lists the frame with interchangeable JD63 trip units covering 200, 225, 250, 300, 350 and 400 A continuous-current ratings.

Is the eBay unit actually a 400 A breaker?

The frame is identified as in the listing title, but the listing also states 300 A Trip and its item specifics identify HJD63F300. Therefore, the safest procurement description is a 400 A JD frame with the installed trip configuration to be verified, rather than calling it an assembled 400 A breaker.

Can replace any Siemens JD-frame breaker?

Not automatically. Verify pole count, voltage, interrupting requirement, trip-unit rating, accessory configuration, mounting arrangement and switchboard compatibility. The interchangeable-trip architecture provides flexibility, but it does not eliminate system-level compatibility checks.

Does the frame number determine the protection setting?

No. The installed JD63 trip unit determines the applicable continuous-current configuration. The frame and trip-unit catalog numbers should therefore be recorded separately during procurement and maintenance.

What should I ask the seller before buying this used unit?

Request clear photographs of:

• The complete front nameplate
• The trip-unit catalog number
• The trip-rating indicator
• Line and load terminals
• Any accessory modules
• The rear/mounting interface
• Any evidence of previous thermal or short-circuit damage

For this listing specifically, confirm why the title says while the item specifics identify HJD63F300.



Procurement Description

Siemens JD-Frame molded case circuit breaker frame, 3-pole, 600 VAC, 400 A frame, interchangeable-trip design. Siemens documentation supports 200–400 A JD63 trip-unit configurations. The supplied marketplace unit is advertised with a 300 A trip, so the installed trip-unit catalog number and nameplate must be verified before shipment. Do not represent the physical unit as a complete 400 A breaker until that configuration is confirmed.
