Bosch Rexroth VT-VSPD-1-23V00-0-1 | Digital Valve Control Card In-Stock
Dynamic Product Introduction

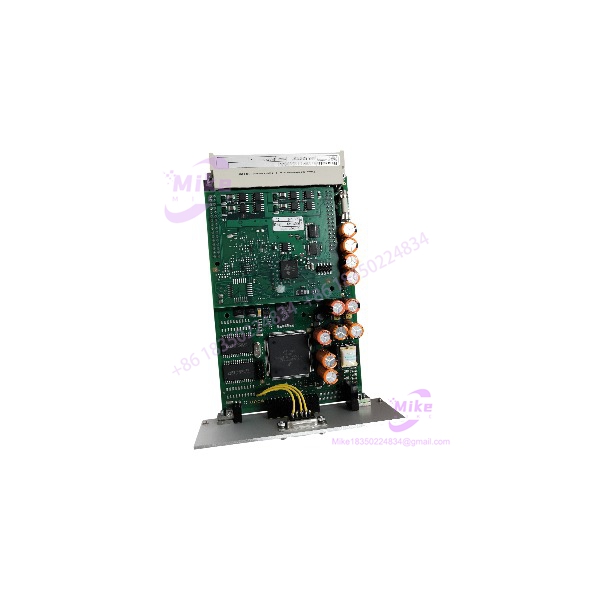

A processor lockup or PWM output stage drift on a primary hydraulic valve control card immediately disables spool positioning, causing severe pressure spikes, mechanical axis misalignment, or total line shutdowns in automated forging presses, injection molding machines, and steel rolling mills. The Bosch Rexroth VT-VSPD-1-23V00-0-1 (P/N: R901083980) is a high-performance digital valve controller engineered for demanding closed-loop hydraulic control applications. Powered by an onboard 32-bit digital signal processor, it converts analog command signals into precise pulse-width modulated (PWM) current outputs to drive proportional valve solenoids while decoding spool position LVDT feedback in real time without control loop lag.
When an operational valve amplifier suffers output transistor degradation, feedback signal processing errors, or serial configuration port failures during continuous production cycles, securing a verified drop-in Bosch Rexroth VT-VSPD-1-23V00-0-1 replacement card keeps your machine operating smoothly. Installing a fully bench-tested replacement module allows hydraulics and control engineers to slot the card directly into existing Eurocard sub-racks without modifying cabinet backplane wiring or altering field valve cabling. Swapping out a compromised amplifier restores immediate closed-loop spool positioning, precise hydraulic flow control, and dependable motion synchronization.
VT-VSPD-1-23V00-0-1
Key Technical Specifications
- Model Designation: VT-VSPD-1-23/V0/0-0-1
- Material Part Number: R901083980
- Manufacturer: Bosch Rexroth AG
- System Series: VT-VSPD Digital Valve Controller Series
- Supply Voltage: 24 VDC nominal (18 to 35 VDC operating window)
- Command Input Options: Configurable differential inputs (0 to ±10 V, 0/4 to 20 mA)
- Valve Output Current: Regulated PWM current output (up to 2.7 A max solenoid drive)
- Feedback Interface: Integrated inductive position transducer (LVDT) evaluation circuit
- Communication & Parameterization: RS-232 serial interface utilizing Rexroth BODAC PC software
- Card Form Factor: Eurocard format (3U height, 100 mm x 160 mm PCB) with 32-pin or 64-pin DIN 41612 edge connector
- Operating Temperature Range: 0°C to +50°C (32°F to 122°F)
- Storage Temperature Range: -20°C to +70°C (-4°F to 158°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market hydraulic control electronics like the Bosch Rexroth VT-VSPD-1-23V00-0-1 requires rigorous bench testing to verify DSP execution, LVDT feedback decoding, and PWM current output linearity. Every incoming control card passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Material numbers (R901083980), model codes (VT-VSPD-1-23/V0/0-0-1), and PCB hardware revision stamps are validated against original Bosch Rexroth engineering databases. Technicians examine edge connector gold plating, filter capacitors, and power transistors under magnification for thermal stress or mechanical wear.
- Live Simulation: The VT-VSPD card is seated in a diagnostic Eurocard rack powered by a regulated 24 VDC supply and interfaced with a Rexroth proportional valve test stand equipped with an LVDT spool feedback transducer.
- Diagnostics: Technicians utilize Rexroth BODAC software via the RS-232 port to upload test configurations, sweep analog command signals (±10 V), and evaluate closed-loop response curves, PWM driver current regulation, and ramp generator performance. The card undergoes a 24-hour thermal soak in an environmental chamber under continuous solenoid current driving to rule out thermal component drift.
- Final Prep: Internal parameter sets are cleared to baseline factory defaults, edge connector contacts are treated with electrical restorer, and the board is sealed in static-shielding ESD packaging before freight dispatch.
The Field Engineer’s Pitfall Guide
- ❗ Verifying LVDT Transducer Phase and Excitation Wiring: —though you might expect standard 4-wire connections, swapping the primary excitation lines with the secondary signal lines of the valve’s LVDT position sensor will cause feedback inversion, driving the valve spool hard against its mechanical stops and triggering immediate position error trips.
- ❗ Missing Parameter Backup via BODAC Software: Installing a replacement VT-VSPD-1-23V00-0-1 without backing up and transferring the original unit’s specific PID parameters, valve curve linearization tables, and ramp times using BODAC software will lead to erratic machine motion and valve spool oscillation.
- ❗ Hot-Swapping Eurocards Under Power: Removing or inserting the VT-VSPD module into the Eurocard rack while 24 VDC system power is live can create inductive voltage spikes across edge contacts, destroying sensitive analog input buffer ICs. Always isolate rack power prior to module exchange.
Intent-Driven FAQ
What is the primary function of the Bosch Rexroth VT-VSPD-1-23V00-0-1 card?
The VT-VSPD-1-23V00-0-1 is a digital secondary valve controller that manages closed-loop position, speed, or pressure loops for proportional and servo solenoid valves using LVDT feedback and DSP algorithms.
How are operating parameters configured on the VT-VSPD-1-23V00-0-1?
Parameters such as controller gains, ramp times, command scaling, and valve zero points are configured digitally using a PC running Bosch Rexroth BODAC software connected to the card’s front-panel RS-232 serial interface.
What causes a red fault LED to illuminate on the VT-VSPD front panel?
A red status LED typically indicates a spool position error (LVDT cable break or position deviation), a solenoid current loop open circuit, an supply voltage drop below 18 VDC, or an internal DSP self-test failure.
Can the VT-VSPD-1-23V00-0-1 be used for open-loop proportional valve driving?
While optimized for closed-loop control with position feedback, the module’s DSP can be parameterized via BODAC software to operate in open-loop mode for standard proportional solenoid driving if required by the application.
What warranty coverage comes with pre-inspected replacement control cards?
All verified Bosch Rexroth VT-VSPD-1-23V00-0-1 control cards come backed by a comprehensive 1-year replacement warranty. If the unit experiences DSP core failure, PWM driver breakdown, or analog feedback sensing drift under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
