Bosch Rexroth MSK050C-0300-NN-M1-UG1-NNNN | MSK Motor Key Spec, New In Stock

Description

Bosch Rexroth MSK050C-0300-NN-M1-UG1-NNNN | MSK Motor Key Spec, New In Stock

Architect’s Product Breakdown

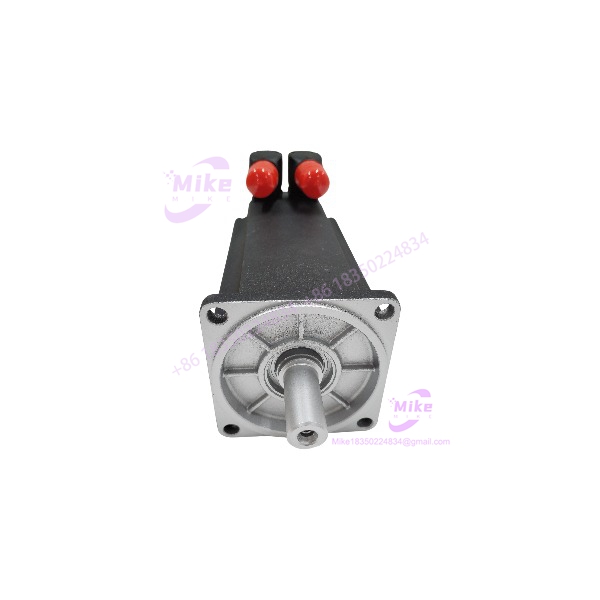

The MSK050C-0300-NN-M1-UG1-NNNN servo motor acts as a high-capacity rotary actuator within multi-axis motion control architectures. Driven by Bosch Rexroth IndraDrive controllers, this larger 50-frame C-stack variant provides substantial continuous torque for heavy-duty axis drives, automated transfer systems, and metal-forming machinery. Its optical multi-turn absolute encoder maintains precise position tracking across power interruptions without requiring manual homing routines.

Integrating this drive-motor combination requires verifying firmware compatibility and re-tuning current and velocity loop parameters to match the thermal and rotational inertia profiles of the 50-series frame. The “UG1” designation specifies an integrated shaft sealing ring, protecting the front bearing assembly against fluid ingress in aggressive machining environments.

Engineering teams must prioritize thermal management and shield grounding. Operating enclosed motors without adequate convective airflow or leaving power cable shields unbonded can cause thermal derating or electromagnetic interference across control channels.

MSK050C-0300-NN-M1-UG1-NNNN

Key Technical Specifications

Field Engineer’s Pitfall Guide

• Feedback Connector Misalignment: Forcing the circular feedback plug without aligning the internal keyway can bend delicate pins, triggering immediate absolute encoder communication faults on the drive.
• Neglecting Lip Seal Maintenance: While the UG1 integrated shaft seal protects against fluid migration, failing to monitor the seal for dry-running wear can cause premature friction breakdown in aggressive lubricant environments.
• Inadequate Power Cable Shield Grounding: Failing to secure the motor power cable shield 360 degrees to the drive chassis clamp introduces high-frequency noise that disrupts nearby low-voltage instrumentation loops.

QA & Testing SOP

• Visual & Origin Inspection: Verify factory seals, inspect housing coatings and shaft seal surfaces for transit damage, and check connector pin alignment against production documentation.
• Live Test Environment: Couple the motor to a calibrated IndraDrive test bench to verify smooth commutation, holding current stability, and velocity tracking under load.
• Diagnostics & Handshake Tests: Execute absolute encoder initialization routines, verify multi-turn position count registers, and perform a megohmmeter insulation resistance test on the windings.
• Preservation & Packaging: Install protective plastic caps over the shaft and connectors, wrap the unit in antistatic shielding material, and secure it inside heavy-duty industrial foam.

Technical FAQ

Does the MSK050C-0300-NN-M1-UG1-NNNN include an integrated holding brake?

No. The “-NN-” designation indicates that this specific part configuration is supplied without an internal holding brake.

What is the difference between a UG0 and a UG1 shaft designation?

The UG0 designation represents a plain shaft without an integrated sealing ring, whereas UG1 includes an integrated shaft sealing ring for enhanced protection against fluid ingress.

Can I operate this motor using a third-party AC servo drive?

No. MSK motors use proprietary digital encoder communication protocols that require a compatible Bosch Rexroth IndraDrive controller for proper commutation and operation.

What software is required to configure the connected drive parameters?

Drive configuration, parameterization, and tuning are performed using the Bosch Rexroth IndraWorks engineering software platform.
