Bosch Rexroth MSK030C-0900-NN-M1-UG1-NNNN | MSK Motor Key Spec, New In Stock
Architect’s Product Breakdown
The MSK030C-0900-NN-M1-UG1-NNNN servo motor acts as an extended-length rotary actuator within multi-axis motion control architectures. Driven by Rexroth IndraDrive controllers, this C-stack variant provides higher continuous torque output compared to shorter B-stack models while maintaining a compact 30-series footprint. Its optical multi-turn absolute encoder tracks position without requiring homing cycles upon power-up, minimizing downtime in automated transfer lines and packaging systems.
Integrating this unit into existing machinery requires verifying drive firmware compatibility and ensuring the control loop gains are re-tuned for the increased thermal and inertial profile of the C-stack rotor. Upgrading aging motor lines with this model increases dynamic performance and improves overall system reliability.
Engineering teams must account for cabinet thermal limits and proper motor grounding. Unshielded feedback cables or failure to maintain adequate convective airflow around the motor housing can lead to premature thermal tripping or electromagnetic interference across control loops.

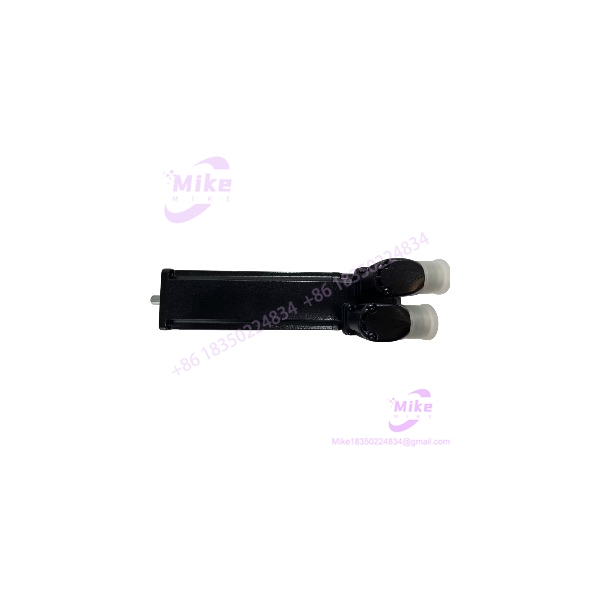

MSK030C-0900-NN-M1-UG1-NNNN
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Bosch Rexroth (Indramat) |
| Model Number | MSK030C-0900-NN-M1-UG1-NNNN |
| Motor Family | MSK Synchronous Servo Motor |
| Size / Length | Frame Size 030, Length C |
| Winding Code | 0900 |
| Cooling Type | Natural convection (Natural cooling) |
| Feedback Type | Optical encoder, multi-turn absolute |
| Shaft Design | Plain shaft with integrated shaft sealing ring (UG1) |
| Holding Brake | Without integrated holding brake |
| Protection Category | IP65 |
Field Engineer’s Pitfall Guide
- Feedback Connector Mismatches: Forcing the circular signal connector without aligning the keyways can bend delicate internal pins, resulting in absolute encoder communication loss and drive faults.
- Ignoring Seal Maintenance: Although the UG1 designation includes an integrated shaft sealing ring for wet or oily environments, failing to check the lip seal for dry-running wear can allow fluids to bypass the barrier over extended operating cycles.
- Unshielded Cable Runs: Failing to ground the motor power cable shield 360 degrees at the drive chassis clamp introduces high-frequency noise that disrupts nearby analog instrumentation loops.
QA & Testing SOP
- Visual & Origin Inspection: Verify OEM factory seals, check the housing and shaft seal assembly for shipping damage, and inspect connector pin integrity against production documents.
- Live Test Environment: Couple the motor to a certified IndraDrive test stand to verify smooth commutation and velocity profile tracking under load.
- Diagnostics & Handshake Tests: Execute feedback calibration routines, verify absolute multi-turn position registers, and check winding insulation resistance with a megohmmeter.
- Preservation & Packaging: Apply protective shaft caps, seal the unit in anti-static moisture-barrier bags, and crate inside heavy-duty industrial foam packaging.
Technical FAQ
Does the MSK030C-0900-NN-M1-UG1-NNNN include an integrated holding brake?
No. The “-NN-” designation in the model string indicates that this specific configuration is supplied without an internal holding brake.
What is the difference between UG0 and UG1 shaft options?
The UG0 designation indicates a plain shaft without a shaft sealing ring, whereas the UG1 designation includes an integrated shaft sealing ring for enhanced protection against fluid ingress.
Can I run this motor with third-party servo drives?
No. MSK motors rely on proprietary digital encoder communication protocols that require a compatible Bosch Rexroth IndraDrive controller for proper commutation and operation.
What programming tool is used to configure the connected drive parameters?
Drive configuration and tuning are performed using the standard Bosch Rexroth engineering software environment, such as IndraWorks DS.
