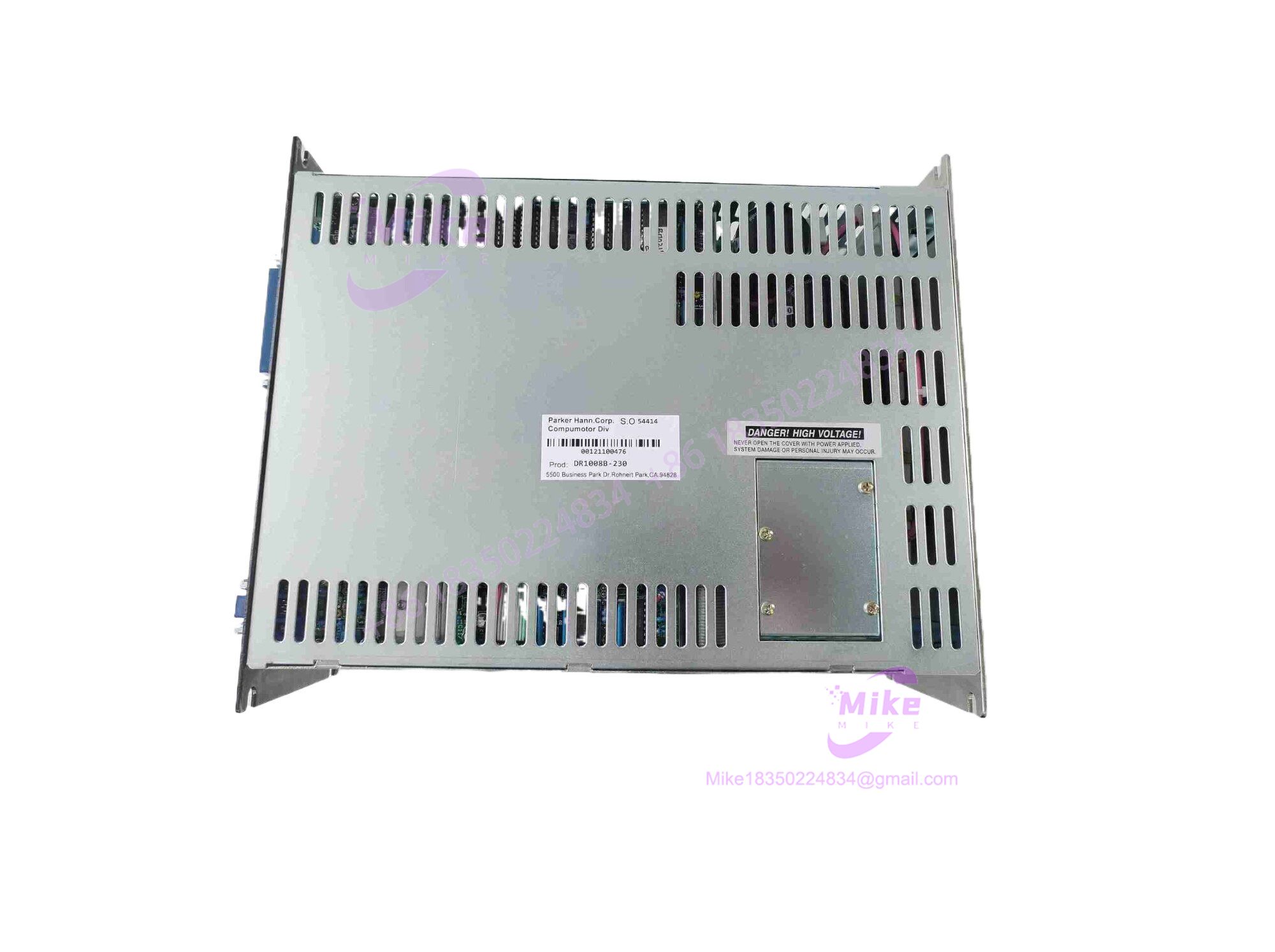

Parker Compumotor DR-1008B-230 | Dynaserv Servo Drive, Surplus
Architect’s Product Breakdown
The Parker Compumotor DR-1008B-230 is a foundational component of the Dynaserv direct-drive servo ecosystem, engineered to run high-precision, gearless rotary tables and indexing axes. By eliminating mechanical gearboxes, belts, and lead screws, the system bypasses backlash and hysteresis entirely, achieving tight arc-second positioning repeatability for high-speed automation and automated inspection machinery.
The unit relies on a sophisticated I-PD digital and analog control algorithm, featuring an internal analog velocity loop for high bandwidth and a digital position loop for optimized accuracy. When integrating this drive into legacy enclosures, panel builders must account for its 230 VAC input requirements and thermal dissipation limits inside unventilated backplanes. Communication relies heavily on step/direction pulse inputs for position control, or standard \pm 10V / \pm 8.5V analog references for velocity and torque modes.
DR1008B-230
Key Technical Specifications
| Parameter | Specification |
| Input Voltage Range | 230 VAC (+10% to -15%), single/three-phase depending on configuration |
| Control Modes | Position (Step/Direction), Velocity (\pm 10V), Torque (\pm 8.5V) |
| Feedback Type | Integral Resolver |
| Algorithm | I-PD Digital and Analog Control Loop |
| Diagnostics HMI | 7-segment LED status and error indicator panel |
| Drive Protection | Overcurrent, overvoltage, overtemperature, open/short circuit |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Enclosure / Mounting | Panel mount chassis (IP20) |
Field Engineer’s Pitfall Guide
- WARNING: Resolver Cable Integrity. The feedback link between the Dynaserv motor and the DR-1008B drive depends heavily on the proprietary 10-foot motor-to-drive cable. Routing this cable parallel to high-voltage variable frequency drive (VFD) lines without proper shielding will inject noise into the resolver loop, resulting in sudden drive faults or positioning jitters.
- WARNING: Step Input Pulse Constraints. When operating in position mode, ensure the controller indexer respects the minimum low-going pulse width requirement (150 nanoseconds). Exceeding command frequency limits without proper smoothing parameters can cause the axis to lose sync.
- WARNING: Direct-Drive Inertia Mismatch. Although Dynaserv systems handle high inertial loads relative to their rotor weight, failing to run the built-in test mode and retune gain parameters after swapping a drive unit can lead to aggressive mechanical oscillation during rapid point-to-point index moves.
QA & Testing SOP (Transparency)
Because legacy Dynaserv components are typically deployed in high-consequence manufacturing cells, verified hardware validation involves:
- Physical Inspection: Verification of terminal block integrity, heatsink condition, and absence of component-level thermal stress on the internal power boards.
- Static Bench Check: Isolation testing of power rails, input bridge rectifier checks, and verification of internal logic power supply rails.
- Dynamic Simulation: Hook-up to an active test-bench Dynaserv motor load to validate resolver signal decoding, command tracking across all three control modes (position, velocity, torque), and fault trip thresholds (overcurrent/overtemperature behavior).
- Burn-In & Packaging: Extended operational run-cycle under load to flush out marginal semiconductor faults, followed by anti-static shielding and static-safe packaging.
Technical FAQ
Can I replace an older drive variant with the DR-1008B-230 directly?
Yes, provided the motor frame and winding compatibility match. However, always cross-reference the exact firmware version and hardware dash numbers (such as -DO designations) to ensure command pinouts and internal scaling parameters align with your motion controller.
Does the drive lose its tune or configuration parameters during a power cycle?
No. Core tuning parameters and configuration options are retained via non-volatile storage, meaning the drive does not rely on a short-lived internal battery backup to remember operational gains.
What do the 7-segment LED codes on the front panel mean?
The front-panel display provides real-time status and error codes (identifying trips like overvoltage, motor stall, or resolver open-circuit). Consult the specific Compumotor Dynaserv hardware manual error table to cross-reference the precise numeric code during troubleshooting.
Is this drive capable of standalone motion profiling?
No. The DR-1008B acts as a slave drive/controller that requires an external pulse source (such as a Compumotor indexer or PLC high-speed output card) for position profiles, or an analog voltage source for velocity and torque regulation.
