ZYGO Corporation 7714 Laser Repair
The Zygo ZMI 7714 (frequently referenced via part numbers such as 8070-0278-xx) is a high-performance, frequency-stabilized Helium-Neon (HeNe) laser source engineered for ultra-precision heterodyne displacement measuring interferometry (DMI) systems.
It represents an advanced iteration in Zygo’s ZMI laser family, purpose-built for applications requiring sub-nanometer positioning resolution and exceptional long-term thermal and frequency stability.

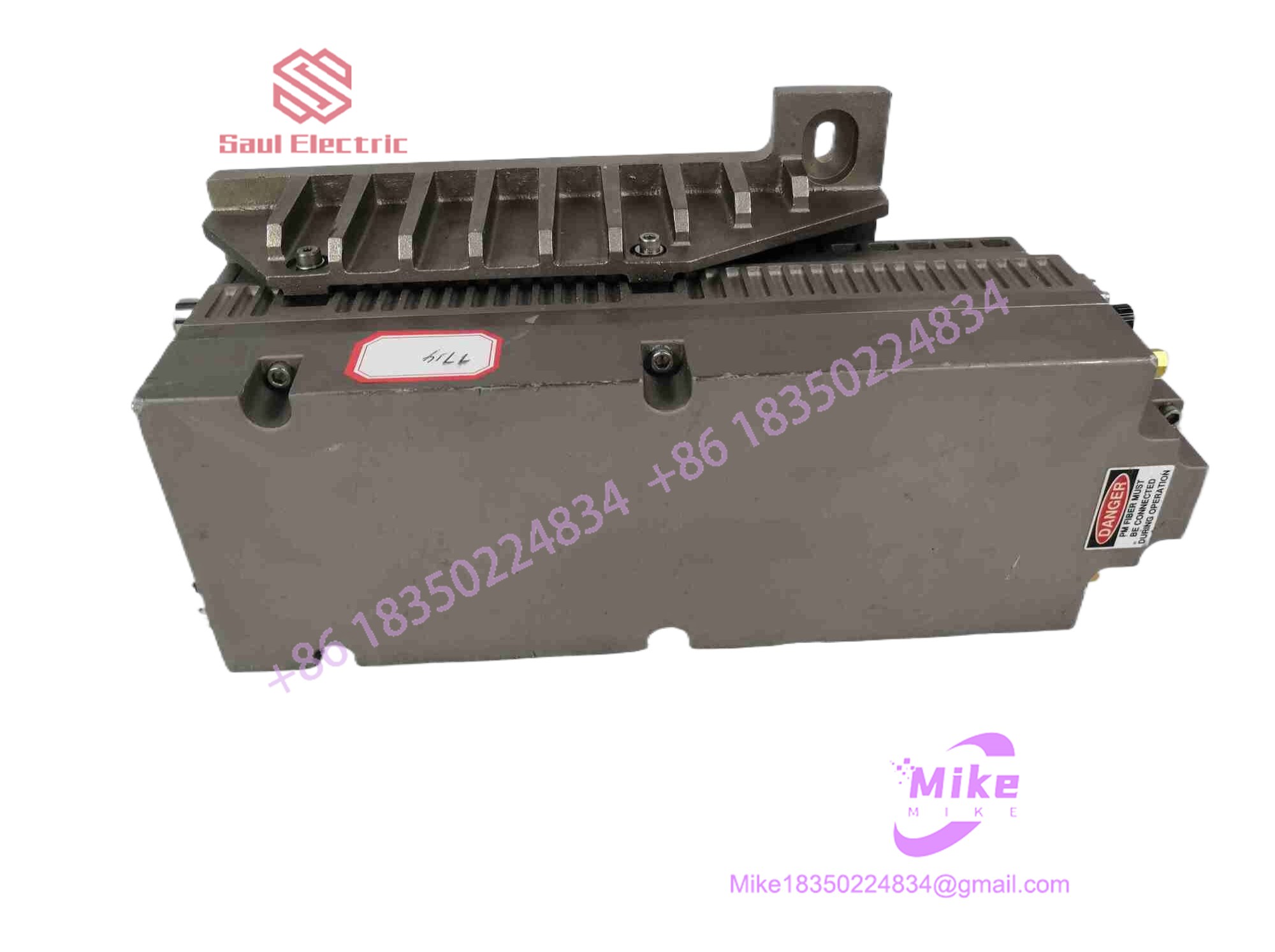

ZYGO 7714
Core Technical Specifications & Architecture
- Laser Type: Continuous Wave (CW) Two-Frequency Helium-Neon (HeNe) gas laser.
- Nominal Wavelength: 632.8 nm (red light).
- Frequency Splitting: Generates two orthogonally polarized optical frequencies offset by a nominal 20 MHz via an internal acousto-optic modulator (AOM) design.
- Output Power: Higher output tier (~1.0 mW to ~2.0 mW total), engineered to provide an optical budget capable of splitting to drive multiple measurement axes simultaneously.
- Frequency Stability: Tight long-term stability typically rated \le \pm 1 ppm down to ultra-high precision thresholds (\le 0.5 ppb over a 1-hour 3σ window depending on exact sub-revision).
- Thermal Management: Utilizes water cooling (standard for the 7714/7724 class) to tightly manage internal cavity expansion and maintain superior frequency stability compared to air-cooled predecessors like the 7702.
- Optical Isolation: Features a built-in optical isolator to prevent destabilizing back-reflections from external interferometer optics and target mirrors.
- System Compatibility: Designed to interface directly with high-speed Zygo VME/PCI processing and measurement boards (such as the ZMI 2400 series for 1–2 axes or the ZMI 4004/4104 series for up to 4 axes per laser).
Key Differences vs. Earlier Models (e.g., 7702)
- Cooling System: While standard units like the 7702 often rely heavily on ambient air or internal convection paths, the 7714 integrates fluid/water-cooling channels to radically suppress thermal drift during high-duty-cycle industrial operations.
- Optical Output & Multi-Axis Capacity: The 7714 delivers higher baseline output power, enabling complex optical splitter layouts to feed multi-axis stage setups without dropping below minimum signal threshold requirements at the receiver cards.
- Refined Isolation: Enhanced internal anti-back-reflection architecture protects the laser cavity more aggressively from environmental noise or optical feedback loops.
Primary Applications
- Semiconductor Lithography: Nanometer-scale position feedback loops for X-Y-theta wafer stages, steppers, and scanners.
- Precision Metrology & Inspection: High-accuracy optical coordinate measuring machines (CMMs) and surface profiling systems.
- Ultra-Precision Machining: Closed-loop feedback positioning for diamond-turning machines and high-precision CNC tool paths.
