Zygo 8070-0279-01 | ZMI Laser Head Stabilization Unit
Architect’s Product Breakdown
The Zygo 8070-0279-01 functions as an optical and thermal core within advanced displacement measuring interferometer (DMI) architectures. Deployed primarily in semiconductor photolithography scanners, precision diamond turning machines, and high-end flat panel inspection setups, this laser head emits the stabilized dual-frequency helium-neon beam necessary to feed downstream axis boards and remote receiver optics. Its primary engineering utility lies in maintaining exceptional frequency stability over extended operating intervals, directly suppressing thermal drift and wavelength creep that would otherwise corrupt sub-nanometer position metrics.
Deploying or replacing this module demands rigorous mechanical alignment and strict thermal management. Because the assembly relies on a precisely tuned laser cavity coupled with specialized power supplies (such as the Voltex E15-Z configuration variants), any mechanical shock or contamination of internal optical ports causes immediate loss of heterodyne beat frequency stability. Field engineers must ensure that purge gas lines (if applicable) and structural mounting interfaces are free of particulate matter before anchoring the head to a granite metrology frame. Grounding integrity and isolation from high-frequency electromagnetic interference are equally vital to prevent phase jitter on the reference photodetector outputs.

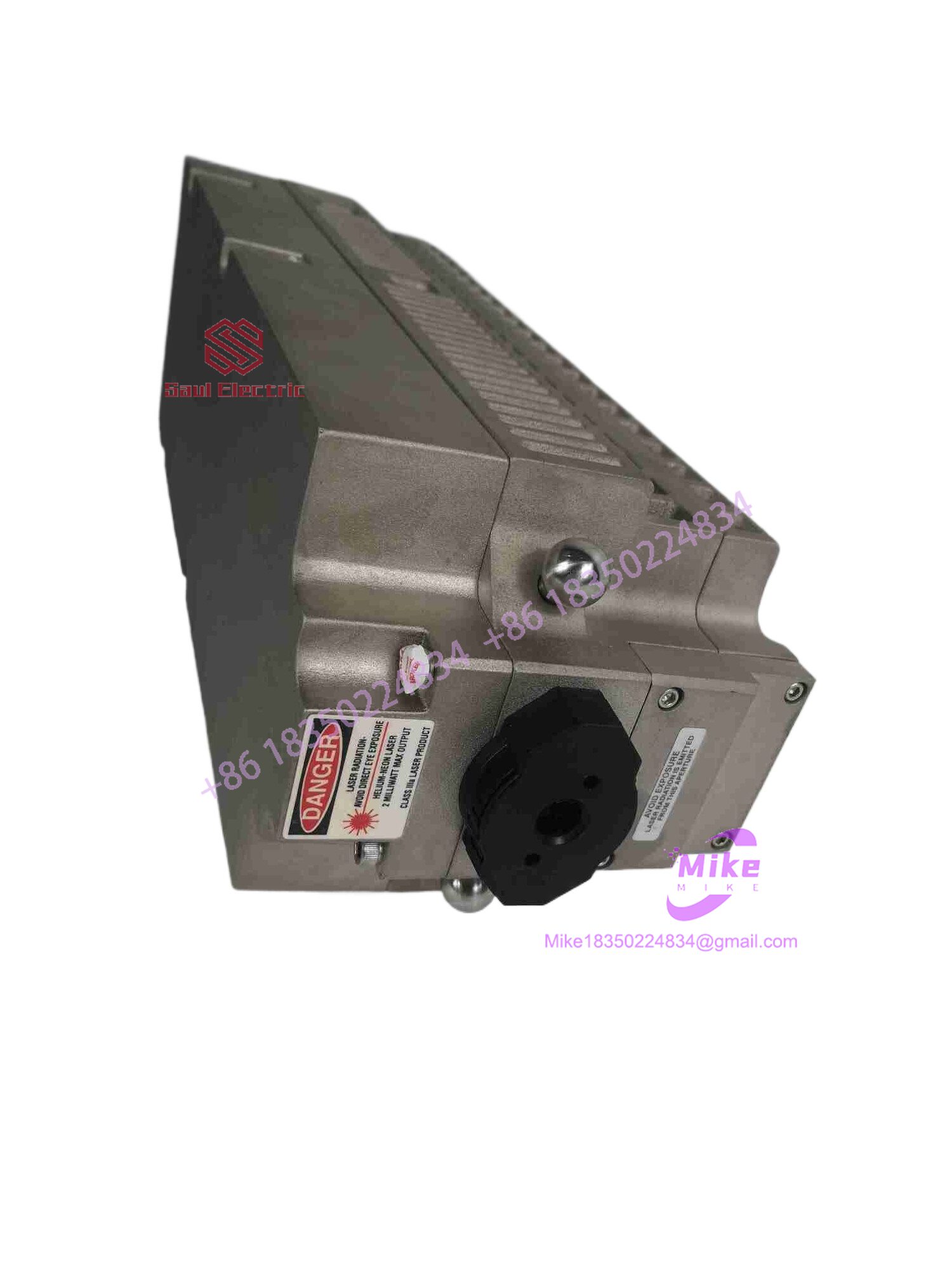

8070-0279-01
Key Technical Specifications
| Core Parameter | Technical Specification |
| Source Type | Stabilized Dual-Frequency Helium-Neon (HeNe) Gas Laser |
| Output Wavelength | 632.8 nm |
| System Compatibility | Zygo ZMI Interferometer Systems (e.g., Series 7700/7714 architectures) |
| Operating Principle | Heterodyne Interferometry for Sub-Nanometer Metrology |
| Input Power Requirements | Specialized DC Supply Integration (e.g., nominal 36VDC / matched laser power supply) |
| Thermal Stability | Internal cavity stabilization loop for minimal drift |
| Cooling Method | Convection / Conduction via precision mounting chassis |
| Operating Temperature | 15°C to 30°C (Strict environmental control required) |
Field Engineer’s Pitfall Guide
- Warning: Catastrophic Cavity Thermal Shock. Never power on the 8070-0279-01 laser head if it has been exposed to extreme ambient temperature swings during transit. I once watched a commissioning team rush a cold-soaked laser head straight to full power, only to crack the internal tube alignment and permanently lose frequency lock before alignment even began.
- Warning: High-Voltage Power Supply Mismatch. Ensure the high-voltage umbilical and DC supply rails (such as matching E15-Z units) are completely discharged and verified before disconnecting. Mismatched or floating grounds will instantly fry internal plasma tube anodes.
- Warning: Optical Back-Reflections. Beware of direct retro-reflections entering the laser output aperture during alignment phases. Uncontrolled back-reflections destabilize the internal Zeeman or stress-induced birefringence splitting mechanism, causing erratic intensity dropouts.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Evaluated for intact OEM security seals, connector pin integrity, and clean laser aperture condition free of optical film or residue.
- Live Test Bench Run: Mounted on a thermal-stabilized optical bench and powered via an approved matching supply to verify plasma ignition and stable optical output.
- Heterodyne Beat Frequency Check: Analyzed using a high-frequency photodetector and spectrum analyzer to validate proper split frequency and loop lock stability.
- Environmental Packaging: Cleansed, capped with optical-grade dust covers, and sealed in anti-static, moisture-barrier packaging to protect internal optics during transit.
Technical FAQ
Can I replace just the internal laser tube without swapping the 8070-0279-01 assembly?
No. While individual sub-components like plasma tubes or specific power supplies occasionally circulate in secondary markets, the 8070-0279-01 is factory-aligned and calibrated as an integrated laser head assembly. Field-replacing components independently breaks thermal and optical alignment tolerances.
Does this unit require a warm-up period to achieve measurement specs?
Yes. The laser cavity requires a dedicated thermal stabilization period (typically 20 to 45 minutes depending on ambient conditions) to reach absolute frequency stability and stop linear drift in high-precision axes.
What causes a sudden loss of light intensity or lock failure on this laser head?
Common culprits include power supply degradation, fiber optic launch misalignment (if fiber-coupled), or optical contamination on the output window. Always check supply voltage stability and clean output optics with approved optical solvents before condemning the laser tube.
Is the internal configuration or alignment data field-adjustable?
No. There are no user-serviceable optical adjustments inside the sealed head. Attempting to tweak internal cavity components without factory optical benches and tooling will permanently ruin the unit.
