Yokogawa AVR10D-Q22020 | Dual Output Voltage Regulator Module

Description

Yokogawa AVR10D-Q22020 | Dual Output Voltage Regulator Module

Product Introduction

When a legacy Centum DCS node suffers from power ripple or rail sag, the entire control loop can cascade into failure. The Yokogawa AVR10D-Q22020 is not an off-the-shelf consumer switching brick; it is a heavy-duty industrial regulator module built specifically to feed stable, low-noise voltage directly into sensitive processor racks—though hot-swapping requires strict adherence to backplane power-down protocols.

This unit anchors the power distribution architecture of older Yokogawa installations, guarding against transient line spikes and ground loops on the factory floor. By delivering tightly regulated dual-rail outputs, it prevents spurious I/O trips and keeps system communication cards communicating cleanly through heavy plant disturbances.

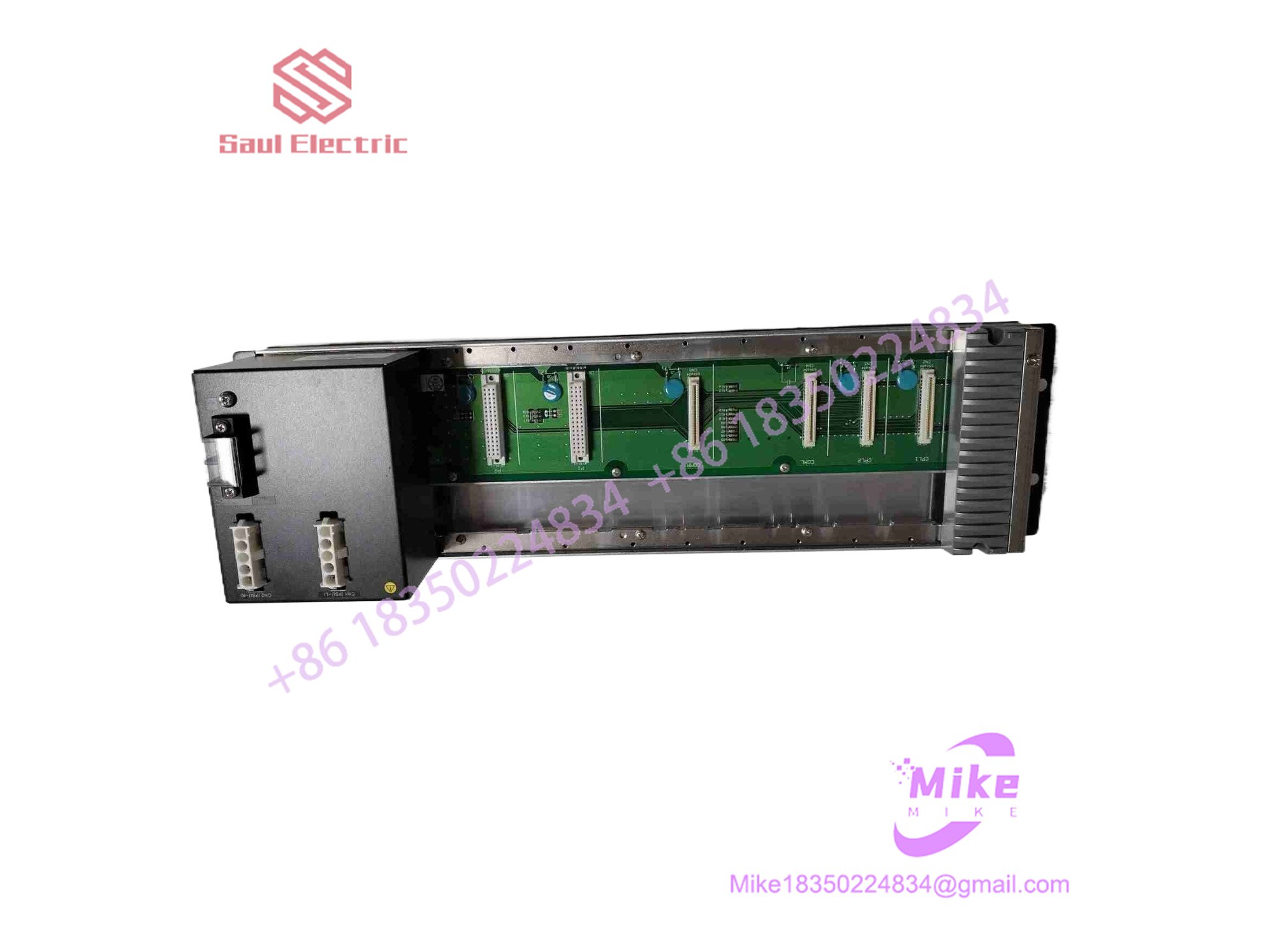

AVR10D-Q22020

Key Technical Specifications

Application Scenarios & Pain Points

• Preventing Spurious Controller Resets: Minor grid fluctuations often cause unbuffered power supplies to drop out for milliseconds, crashing the CPU. The AVR10D-Q22020 maintains stable hold-up times to keep control logic running straight through minor power dips.
• Refurbishing Aging DCS Cabinets: When a primary power card fails in an active chemical plant, retrofitting a whole new rack is out of the question. Dropping in a verified surplus AVR10D-Q22020 restores power integrity without rewriting application logic.
• Isolating Ground Noise in I/O Loops: Industrial noise coupling into cabinet lines can corrupt analog cards. The robust internal isolation transformer design of this regulator keeps common-mode noise out of sensitive loop power feeds.

QA & Live Testing SOP (Trust Signal)

Because these modules manage critical cabinet distribution, every surplus unit undergoes strict bench validation. We mount the AVR10D-Q22020 onto a live test backplane and apply a stepped AC line load. Using an oscilloscope, we measure ripple under full resistive load to ensure the output rails stay within tight millivolt thresholds. We also verify that the thermal cutoff and front-panel status LEDs trip accurately during simulated overload conditions.

Field Engineer’s Pitfall Guide

• ❗ Backplane Power-Down Rule: Never hot-swap this regulator while the cabinet main breaker is closed. Pulling or inserting the module under live power can cause an arcing event across the backplane pins, fusing the edge connectors and frying adjacent I/O modules.
• ❗ Line Voltage Jumper Settings: Verify the primary AC tap configurations before applying power. Supplying high line voltage to a unit jumpered for a lower range will instantly destroy the primary input stage.
• ❗ Cabinet Ventilation Clearance: Ensure the upper and lower rack ventilation slots remain unobstructed. Jamming dense wiring harnesses directly against the faceplate will choke natural convection and trigger thermal shutdown.

Intent-Driven FAQ

• Is the AVR10D-Q22020 compatible with modern Yokogawa CENTUM VP systems?

  No. This module is engineered specifically for legacy Centum architecture. Modern VP systems use entirely different power distribution form factors.

• What does the front-panel LED status indicate if it turns red or goes dark?

  A dark or fault-lit LED typically indicates either an open input fuse, a tripped internal overcurrent breaker, or a shorted load on one of the downstream DC rails.

• Can I repair this power supply at the component level?

  While possible if you have exact OEM schematic mappings, replacing aging electrolytic capacitors and power MOSFETs requires high-temp soldering gear and full recalibration to ensure ripple specs are met. Complete module swapping is heavily recommended for industrial uptime.

• Are these units available brand new from Yokogawa?

  No, this specific model line is long past active OEM manufacturing lifecycle support. Sourcing relies on verified surplus inventories and tested secondhand stock.

• Does the module require external forced-air cooling fans?

  No, it relies entirely on natural convection cooling, which means proper vertical spacing inside the cabinet is mandatory to prevent localized heat pockets.
