Yokogawa ALP121-S00 PROFIBUS-DP Module | Core DCS Node
Dynamic Product Introduction
Integrating third-party instrumentation and remote field devices into a CENTUM VP architecture requires robust, deterministic fieldbus mapping. The Yokogawa ALP121-S00 PROFIBUS-DP communication module bridges field control stations directly to PROFIBUS-compatible slave devices, handling continuous polling and cyclic data transfer. When an aging master card suffers communication drops or hardware component wear, deploying a verified, surplus-tested replacement restores network synchronization without altering control logic databases.

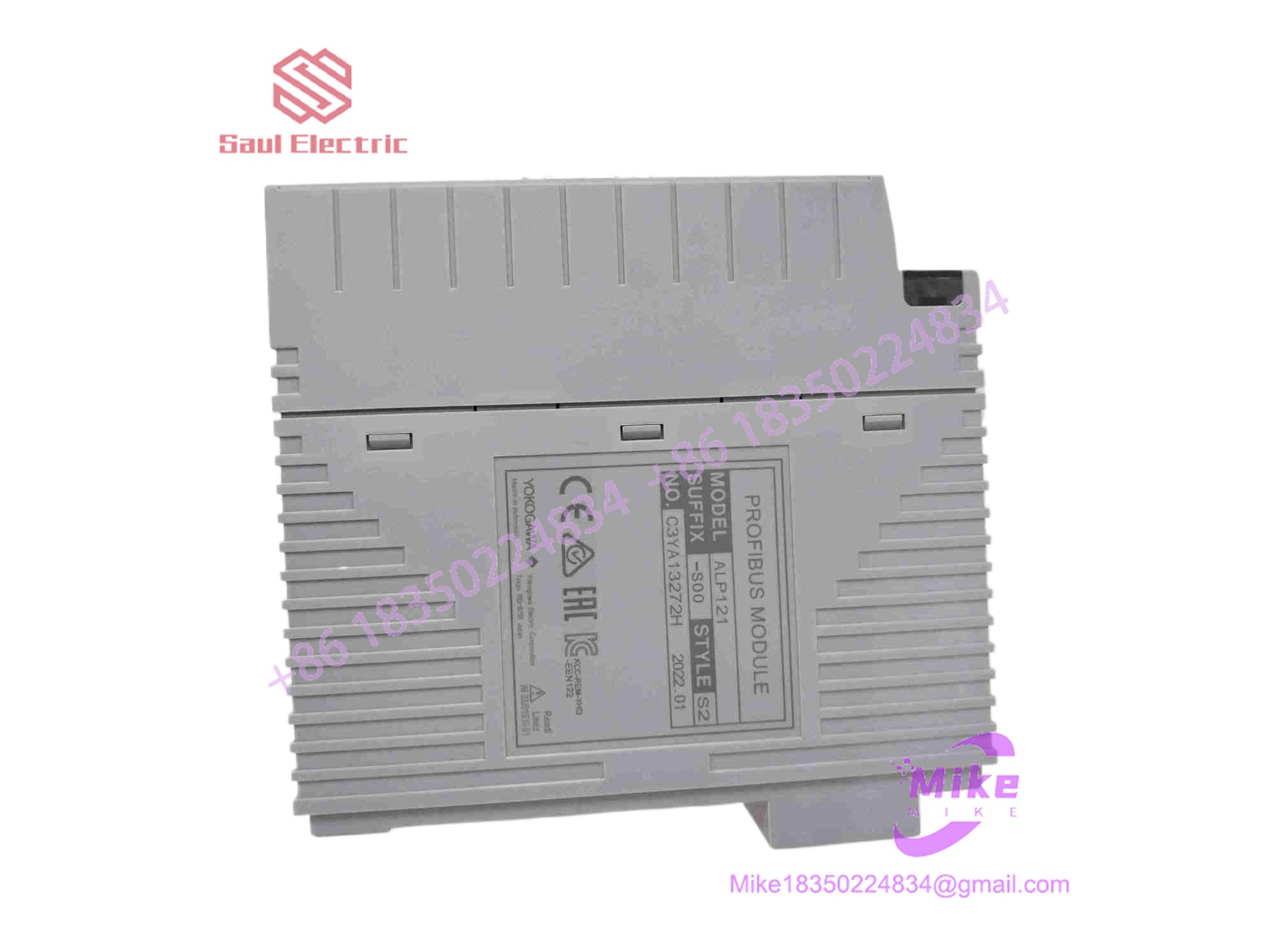

ALP121-S00
Key Technical Specifications
| Technical Parameter | Specification Value |
| Device Type | PROFIBUS-DP Communication Module (FIO / N-IO) |
| Model & Suffix S | Standard Type |
| Suffix Code 0 | Basic standard base type (non-coated option) |
| Protocol / Interface | PROFIBUS-DP Master (EIA-RS-485 compliant) |
| Transmission Speed | 9600 bps to 12 Mbps |
| Max Transmission Distance | Up to 1.2 km (at 9600 bps) |
| Port Configuration | 1 × D-sub 9-pin connector (female) |
| Current Consumption | 0.7 A |
| Physical Weight | Approx. 0.3 kg |
| Mounting Architecture | Node unit slot-in card (AFV30_, AFV40_, ANB10_, ANB11_) |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary market DCS communication hardware requires rigorous testing of physical layer drivers and message frame handling. Every inbound Yokogawa ALP121-S00 unit goes through a strict evaluation pipeline:
- Inbound Verification: Serial number pedigree tracing against global automation asset ledgers, microscopic inspection of gold-edge backplane connectors, and capacitor health audits.
- Live Simulation: Slotted directly into an authentic Yokogawa CENTUM VP test node chassis tied to a live PROFIBUS-DP slave device loop.
- Diagnostics: Full-scale baud rate negotiation testing (9.6 kbps to 12 Mbps), RS-485 transceiver signal isolation validation, cyclic data exchange stress runs, and a 24-hour thermal burn-in test.
- Final Prep: D-sub port contact cleaning, anti-static shielding bag placement, and heavy-duty ESD-safe vacuum sealing.
The Field Engineer’s Pitfall Guide
- ❗ RS-485 Bus Termination Flaws: Failing to verify proper active end-of-line termination resistors on long PROFIBUS cable runs will cause signal reflections, resulting in intermittent master-slave frame timeouts.
- ❗ Baud Rate Mismatches: Setting mismatched communication speeds between the master module configuration and physical slave devices will immediately lock out cyclic data exchange.
- ❗ Backplane Bus Slot Misalignment: Jamming the communication module into an unassigned or mechanically mismatched node slot can bend sensitive backplane pins and corrupt system-level communication buses.
Intent-Driven FAQ
- Will replacing the Yokogawa ALP121-S00 erase my field device configuration mapping?
No. PROFIBUS device assignments and network configurations are managed within the CENTUM VP engineering database and downloaded to the module upon startup, though verifying node address switches is critical.
- Can this PROFIBUS module be hot-swapped in an active node chassis?
Hot-swapping is supported only if the node and system architecture are explicitly engineered and configured for redundant or online maintenance mode; otherwise, upstream power must be isolated.
- What indicates a failing internal RS-485 transceiver stage?
Observing continuous bus error LED indicators or complete poll failure while network cabling and termination checks measure entirely normal points to an internal driver IC failure.
- Can an ALP121-S00 module interface with PROFIBUS-PA instruments?
Yes, when paired with an appropriate external PROFIBUS DP/PA coupler, the module can seamlessly access downstream PA device data.
- What type of warranty covers this surplus hardware?
Verified units are backed by an industry-standard replacement warranty covering electrical functionality and operational stability under factory operating conditions.
