Yokogawa ADV551-P50 | 32-Channel Digital Output Module
Dynamic Project Introduction
Deploying distributed control systems in aggressive industrial environments—such as offshore platforms, chemical processing plants, or humid coastal facilities—requires hardware built to resist chemical attack and moisture degradation. The Yokogawa ADV551-P50 delivers the exact 32-channel digital transistor output capability of the standard ADV551 series, but features factory-applied conformal coating designated by the -P50 suffix to protect internal circuitry from corrosive agents.
Whether managing heavy-duty solenoids or plant interlocks, this module ensures reliable, high-density switching while withstanding harsh ambient conditions. Maintaining legacy Yokogawa control infrastructure relies on matching exact hardware suffixes—ensuring your replacement unit carries the proper environmental protection rating for your specific plant operating envelope.

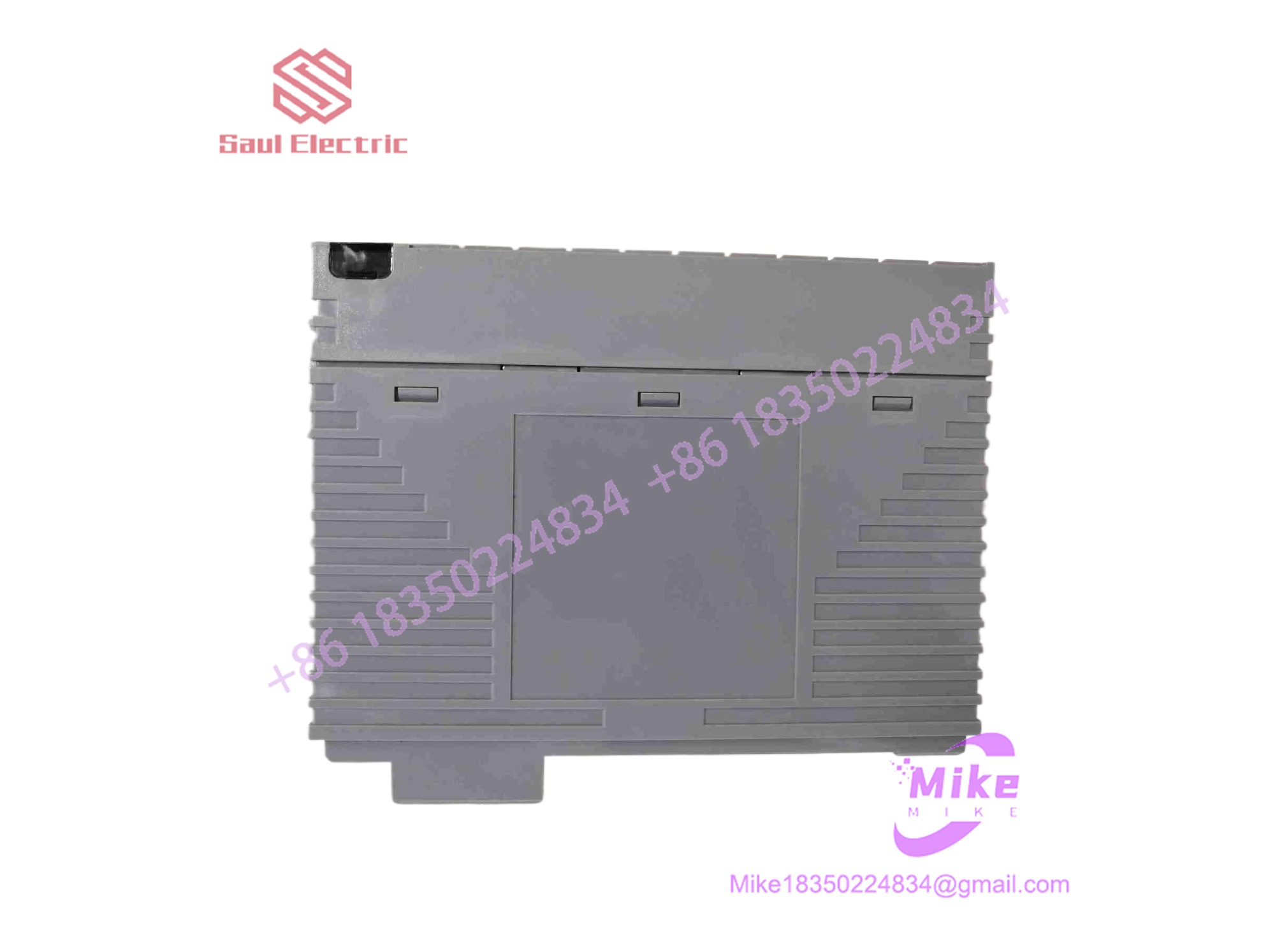

ADV551-P50
Key Technical Specifications
| Parameter | Specification Detail |
| Primary Architecture | FIO (Field Network I/O) Digital Output Module with Conformal Coating |
| System Compatibility | Yokogawa CENTUM CS, CENTUM VP, and compatible FCS nodes |
| Output Channels | 32 channels (Current sink output format) |
| Rated Applied Voltage | 24V DC |
| Maximum Load Current | 100 mA/channel (26.4V max) |
| External Power Supply | 24V DC, 50 mA (Operating range: 20.4V to 26.4V DC) |
| Output Response Time | \le 3 ms (status output); \le 10 ms (mixed status/pulse output) |
| Environmental Protection | Factory-standard corrosion-resistant conformal coating (-P50 variant) |
| Redundancy Support | Compatible with dual-redundant slot configurations |
| Form Factor & Mounting | Plug-in I/O module for standard Yokogawa node base units |
Global Sourcing & Live-Test SOP
Sourcing surplus corrosion-resistant DCS I/O cards requires rigorous multi-point evaluation to ensure both electronic performance and protective coating integrity:
- Inbound Verification: Part numbers, manufacturing stamps, and suffix revision codes (-P50) are audited against factory build records to confirm genuine Yokogawa environmental packaging.
- Visual Audit: Printed circuit boards are examined under magnification to verify that conformal coating is intact, free of micro-cracks, and that terminal pins and backplane connectors remain uncompromised.
- Live Bench Simulation: Modules are docked onto an active CENTUM test rack to confirm node recognition, backplane handshake stability, and internal power rail regulation.
- Diagnostics & Prep: Each of the 32 output channels is pulsed under a simulated resistive load to verify clean transistor switching and response time thresholds. Approved units are anti-static bagged, foam-cushioned, and sealed in moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Current Sink Polarity Errors: The ADV551-P50 utilizes a current sink output configuration. Connecting field devices with incorrect common-side polarity will prevent circuits from energizing or cause continuous leakage current faults.
❗ Mixing Standard and Coated Variants: While a standard -P00 module and a -P50 corrosion-resistant module share identical pinouts and operational logic, introducing unrated standard cards into highly corrosive zones without verifying plant environmental specifications can lead to premature hardware failure.
❗ Hot-Plug Backplane Risks: Inserting or extracting I/O modules into a live, powered control node without adhering to approved system maintenance procedures can cause transient voltage spikes, risking backplane communication failure.
Intent-Driven FAQ
What does the “-P50” suffix designate on the ADV551?
The -P50 suffix indicates a factory-standard corrosion-resistant model featuring enhanced conformal coating designed to protect the circuit board against moisture, hydrogen sulfide, and other corrosive industrial gases.
Can the ADV551-P50 be used in a redundant configuration?
Yes. The series supports dual-redundant slot configurations to provide high-availability control in critical process loops where controller uptime is non-negotiable.
What systems support the Yokogawa -P50?
This module is engineered for deployment within Yokogawa’s CENTUM CS and CENTUM VP Distributed Control System (DCS) platforms utilizing standard Field Network I/O (FIO) architecture.
What causes an output channel to register a fault status?
Channel faults typically stem from an external power supply drop outside the 20.4V to 26.4V range, an over-current load condition exceeding 100 mA, or a blown fuse on the associated field termination assembly.
What warranty covers surplus -P50 units?
Every unit delivered from our inventory is backed by a comprehensive 12-month operational warranty covering switching transistor health, internal bus communication, and power regulation stability.
