Watlow 997D-11CC-JURG | Series 997 Vertical Limit Controller Core Category
Dynamic Product Introduction
Standard process controllers regulate routine heating cycles, but protecting high-value industrial ovens and semiconductor chambers from thermal runaway demands an entirely independent safety layer. When a primary control loop fails or a power contactor welds shut, catastrophic equipment damage or fire can occur within minutes. The Watlow 997D-11CC-JURG vertical limit controller prevents these disasters by providing dedicated, failsafe hardware shut-off protection completely isolated from the primary control architecture.
Unlike multi-function PID instruments, this specialized limit device focuses strictly on high-reliability safety oversight. Meeting rigorous plant compliance standards across legacy industrial setups requires precise part matching—making this safety controller critical for maintaining insurance and factory safety mandates.

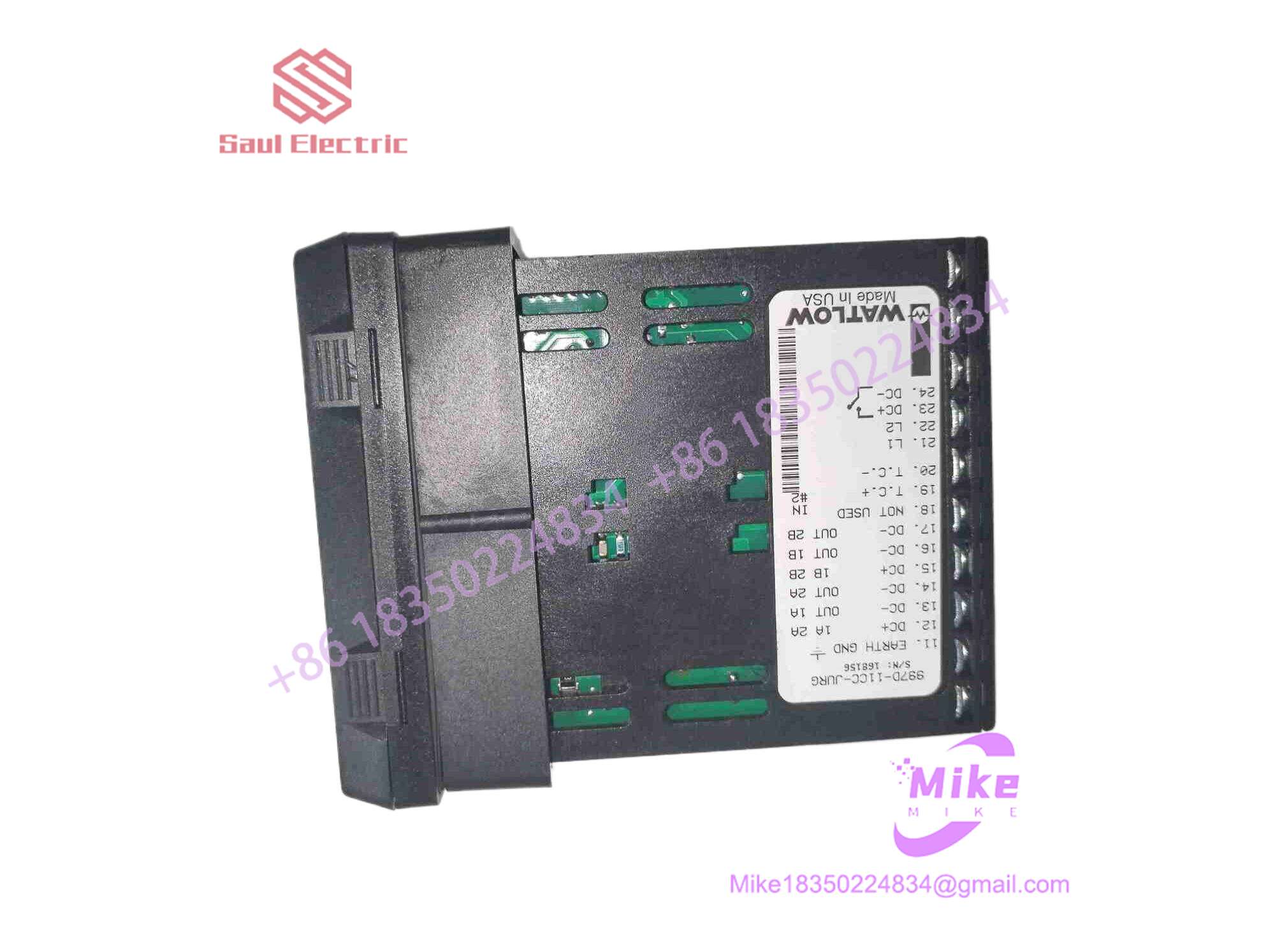

997D-11CC-JURG
Key Technical Specifications
| Parameter | Specification Detail |
| Manufacturer | Watlow |
| Model Number | 997D-11CC-JURG |
| Product Series | Series 997 Vertical Limit Control |
| Form Factor | 1/8 DIN Vertical Panel Mount (45 mm \times 92 mm cutout) |
| Display Type | Bright Red Digital LED Process Display |
| Input Sensor | Thermocouple Type J (optimized for rapid thermal response) |
| Output Configuration | Dual Electromechanical Relays (Form C, 5A) |
| Reset Action | Latching with Front-Panel Manual Reset (required operator intervention) |
| Agency Approvals | UL, CSA, FM (Factory Mutual) Safety Certified |
| Operating Environment | Industrial control cabinets (0^\circ C to 55^\circ C) |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market safety limit hardware requires rigorous functional and electrical verification to ensure zero relay degradation or sensor input drift prior to installation. Our multi-stage qualification protocol covers:
- Inbound Verification: Incoming controllers undergo microscopic inspection of the housing, terminal blocks, and front-panel tactile membrane keys to detect heat stress, moisture intrusion, or mechanical wear. OEM part numbers and date codes are authenticated against traceability databases.
- Live Simulation: We slide the module into a dedicated, fully powered test rig configured to simulate live thermocouple signals and control loop loads.
- Diagnostics: Engineers execute active trip tests, verifying that the internal dual relays cleanly break contact within milliseconds when input values cross the programmed limit threshold. Latching mechanisms and manual reset response times are tested across an accelerated operational cycle.
- Final Prep: Once safety criteria are verified, configuration memory is cleared to factory defaults, and the unit is packaged in anti-static, shock-absorbing materials.
The Field Engineer’s Pitfall Guide
❗ Shared Sensor Probes: Never wire the primary PID controller and this safety limit device to the same thermocouple junction. Safety codes require a completely independent, dedicated sensor placed nearby to ensure true redundancy if one probe fails.
❗ Bypassing the Manual Reset Latch: Relying on auto-reset configurations for critical over-temperature safety loops violates standard operating procedures. The manual reset requirement ensures operators physically investigate root causes before re-energizing dangerous heating loads.
❗ Directly Switching Heavy Loads: I’ve seen technicians wire high-amperage heating elements directly through the limit controller’s internal relay contacts, resulting in fused contacts and total safety failure. Always use the 997 outputs to drop out an appropriately sized heavy-duty safety contactor.
Intent-Driven FAQ
Can the Watlow 997D-11CC-JURG be used as a primary temperature controller?
No. This instrument is strictly a dedicated limit and safety cutout device. It lacks standard control output algorithms like closed-loop PID heating regulation and is engineered solely to drop power during fault conditions.
What does the “JURG” suffix indicate in the part number?
It designates the factory configuration for input type (Type J Thermocouple), output format, and specific reset/latch behavior (Manual Reset safety configuration).
Why is Factory Mutual (FM) approval critical for this controller?
FM certification guarantees that the device meets rigorous third-party industrial safety standards required by plant insurance carriers for unattended thermal processing equipment.
How do I test the safety limit loop during routine maintenance?
Manually lower the high-limit setpoint below the current chamber temperature (or simulate a higher temperature using a thermocouple calibrator) to confirm that the output relays trip and cut power to the heating contactor.
What level of warranty is included with this surplus safety controller?
We back this unit with a comprehensive one-year replacement warranty, covering electrical performance and switching integrity under normal industrial operating conditions.
