Wago 758-873 | Industrial PC Controller Module (I/O-IPC)

Dynamic Product Introduction

Combining standard industrial PLC runtime with high-level PC applications traditionally required separate control hardware linked across panel harnesses. The WAGO 758-873 (I/O-IPC) bridges this gap by embedding a full x86-architecture Industrial PC directly onto the standard 35mm DIN-rail bus. It executes real-time control tasks (via CODESYS / IEC 61131-3 soft-PLC runtimes) while concurrently running Linux or Windows Embedded OS environments for local visualization, data logging, and IT network integration.

Equipped with dual Ethernet interfaces, USB ports, serial interfaces, and an accessible CompactFlash card slot for non-volatile storage, the 758-873 mounts seamlessly as the head station for WAGO 750/753 Series I/O slices. Its fanless, solid-state construction eliminates mechanical wear points, making it suitable for high-vibration industrial cabinets, SCADA edge gateways, and building automation hubs. For maintenance engineers replacing aging control heads or expanding legacy WAGO nodes, installing a bench-tested 758-873 restores full system determinism and edge connectivity.

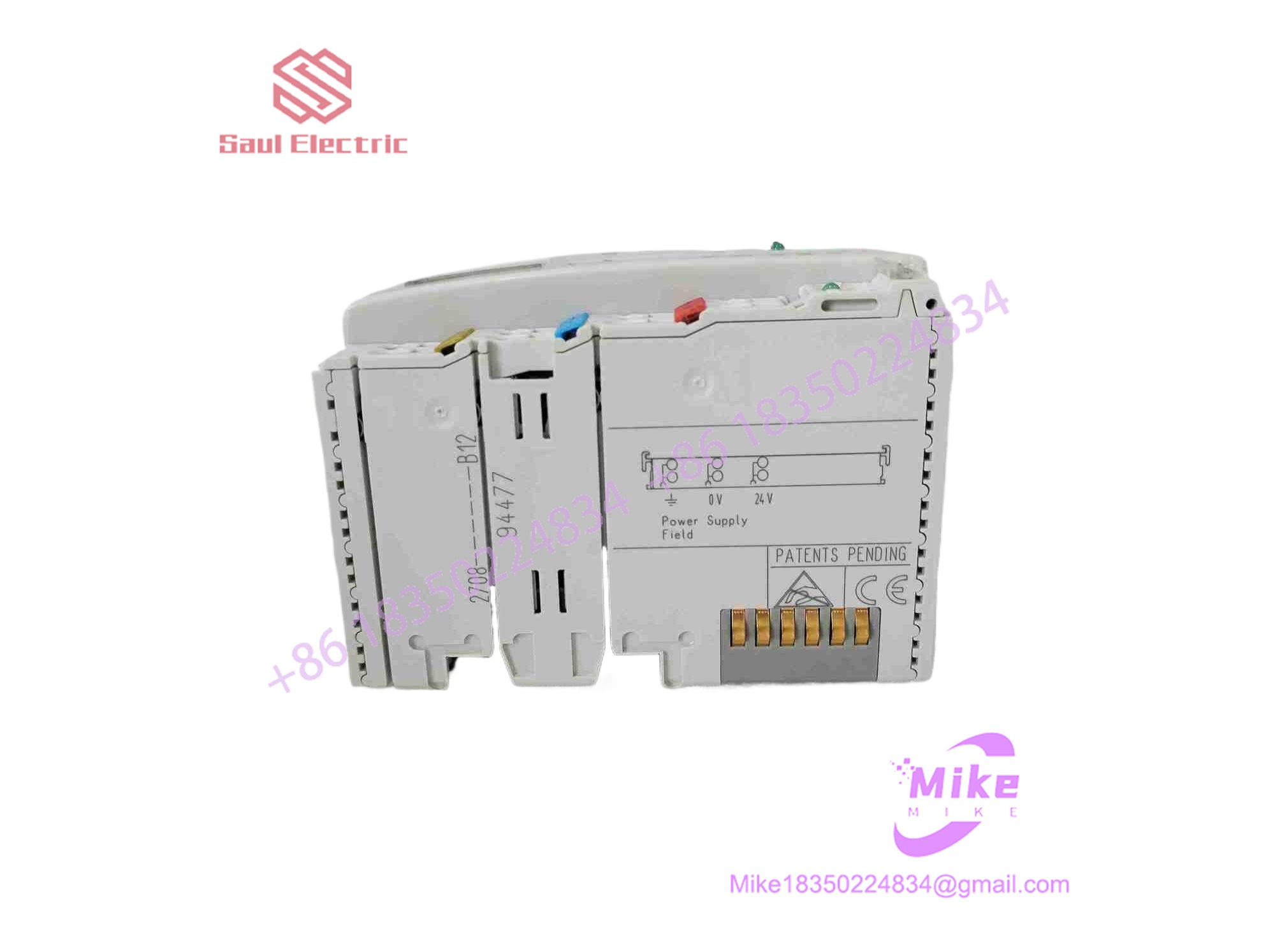

758-873

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

To guarantee immediate field readiness in critical automation environments, every certified surplus and replacement WAGO 758-873 unit undergoes a multi-point bench testing workflow prior to dispatch:

Inbound Verification & Physical Audit

• Traceability Review: Verification of original WAGO rating plates, model codes (758-873), and revision history against official manufacturer specifications.
• Hardware Audit: High-magnification optical inspection of terminal block pins, CompactFlash card socket pins, RJ45 ports, and DIN-rail latching mechanisms for signs of mechanical stress or debris.

Live Simulation Bench Testing

• Power Rail & Boot Cycle: Energizing the unit on a 24V DC test rig to confirm power rail stability, boot-loader execution, and clean OS/Soft-PLC startup.
• K-Bus Communication Audit: Attaching a train of WAGO 750 digital and analog I/O modules to the side bus interface to verify local I/O scanning, bus power distribution, and signal mapping.

Diagnostic & Network Validation

• Ethernet & Serial Throughput: Exercising both RJ45 network ports and RS-232 interfaces with full-duplex traffic to confirm zero packet loss and correct IP routing.
• 24-Hour Burn-In Run: Operating the IPC under continuous CPU load and cyclic I/O toggling inside a 50°C thermal chamber to catch latent semiconductor breakdown.

Final Prep & Packaging

• Configuration Reset: Clearing legacy IP addresses and restoring default system parameters while recording baseline metrics on the official inspection certificate.
• ESD Cleanroom Packaging: Double-sealed in static-shielding film with active desiccant packaging, protected inside custom-molded foam boxes for air dispatch.

The Field Engineer’s Pitfall Guide

❗ Corrupting Storage via Improper Power-Down

Because the 758-873 runs an embedded operating system from its CompactFlash card, dropping main 24V DC supply power during active write operations can corrupt the file system or CODESYS runtime files. Always execute a proper software shutdown or ensure an uninterruptible power supply (UPS) backs up the 24V logic line.

(In actual field troubleshooting calls, I’ve seen plant technicians replace IPCs believing the motherboard had failed, when in reality the CompactFlash card simply suffered file corruption from a hard power drop).

❗ Exceeding K-Bus Power Supply Limits

The internal power supply of the 758-873 delivers a specific current capacity (typically 2A) to the internal K-bus for attached 750-series I/O modules. If your I/O slice configuration exceeds this threshold, you must insert a 750-602 or 750-610 bus power supply module to prevent system logic resets.

❗ Mismatched Network Subnet Configurations

The dual Ethernet ports on the 758-873 function as separate network interfaces (not a built-in unmanaged switch). Assigning IP addresses from the exact same subnet to both ports without proper bridge routing will cause network socket collisions and drop SCADA/PLC communication links.

Intent-Driven FAQ

What programming software is used with the WAGO 758-873 IPC?

Depending on the installed firmware and OS image, the 758-873 is typically programmed using WAGO-I/O-PRO (based on CODESYS v2.3) or Linux-based software tools for custom C/C++ / Java applications.

Can I boot the 758-873 without a CompactFlash card inserted?

No. The CompactFlash card serves as the main non-volatile boot medium containing the operating system image, hardware drivers, and PLC runtime program. A compatible, pre-formatted CF card must be inserted into the front slot.

How do I reset the IP address on a 758-873 if the password or network settings are unknown?

You can access the system console via the RS-232 serial interface using a serial terminal client (e.g., PuTTY) during boot-up, or re-image the CompactFlash card using WAGO’s standard factory recovery utility.

Is the 758-873 compatible with both 750 and 753 Series WAGO modules?

Yes. The 758-873 directly interfaces with all standard WAGO 750 Series I/O modules and 753 Series modules (which feature removable pluggable connectors).

What warranty covers this controller when purchased as certified surplus?

All fully tested surplus and replacement WAGO 758-873 IPC units include a standard 12-month operational warranty covering CPU performance, K-bus communication, and port functionality under standard operating conditions.
