Vibro-Meter IOCN 200-566-000-113 | VM600 Interface Card
Product Introduction
When a VM600 rack loses its communications interface, the replacement has to match more than the connector layout. The IOCN is part of the rack controller architecture, and a mismatch can affect network access, configuration, and communication with the wider monitoring system.
The Vibro-Meter IOCN 200-566-000-113 is an I/O and communications interface card associated with the VM600 machinery protection and condition-monitoring platform. It works with the CPUM rack controller, providing Ethernet and serial communication access for supported rack configurations. The -113 ordering code is associated with an Ethernet-redundant, conformal-coated variant, making exact part-number and revision verification important during procurement.
For maintenance teams supporting installed VM600 equipment, this is a configuration-sensitive spare. Confirm the removed card’s label, installed CPUM model, rack type, and system documentation before approving the IOCN 200-566-000-113 as a replacement.

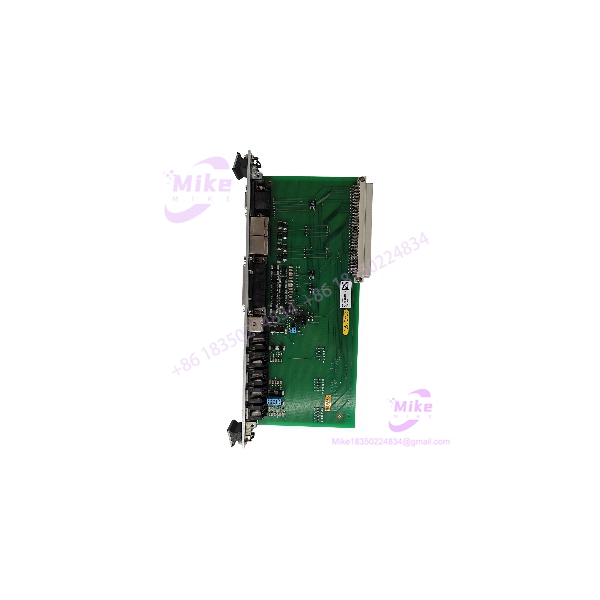

IOCN 200-566-000-113
Key Technical Specifications
- Manufacturer/Brand: Vibro-Meter / Meggitt
- Model: IOCN
- Ordering Number: 200-566-000-113
- System Family: VM600 Machinery Protection and Condition Monitoring System
- Product Classification: I/O and communications interface card
- Associated Controller: CPUM rack controller
- Rack Association: VM600 ABE04x family
- Communications: Ethernet and serial interface connectivity; exact supported configuration depends on the installed system
- Ethernet Variant: Associated with Ethernet redundancy
- Coating Variant: Associated with conformal coating; verify the actual unit
- Installation Position: Rear of the rack, in the position corresponding to the CPUM card, as specified by the applicable rack documentation
- Power Requirements: Exact card-level electrical requirements not independently verified
- Operating Temperature: Exact range not independently verified for this ordering code
- Dimensions and Weight: Confirm against the physical unit or OEM documentation
- Firmware/Configuration: Must be checked against the installed /CPUM system and applicable configuration requirements
Specification note: Some reseller listings provide conflicting or unsupported electrical, environmental, and I/O figures. Those values are intentionally excluded here. Use the applicable OEM documentation and actual card label for engineering approval.
Global Sourcing & Live-Test SOP
The following is a recommended incoming qualification process. It is not a statement that this specific unit has been inspected, tested, or refurbished.
Incoming Verification
- Verify the complete IOCN 200-566-000-113 ordering code.
- Record the serial number, board revision, and visible OEM markings.
- Photograph the nameplate, front panel, connectors, and PCB.
- Inspect for corrosion, damaged connectors, cracked components, contamination, and signs of unauthorized repair.
- Compare the received card with the removed unit and approved site references.
Authenticity and Traceability
- Record supplier details, purchase order, stated condition, and shipment documentation.
- Check for inconsistencies between the label, PCB markings, and supplied documentation.
- Request traceability or service records when available.
- Escalate discrepancies for engineering review before installation.
Functional Qualification
- Use an approved -compatible test setup and applicable OEM procedures.
- Verify card recognition and diagnostic status with the intended CPUM/rack configuration.
- Check supported Ethernet and serial communication paths where test equipment and configuration permit.
- Record test results, observed faults, and the exact hardware configuration used.
- Do not connect the card to an operating protection system without an approved maintenance and commissioning procedure.
Extended Run and Diagnostics
- Perform an extended run where supported by the test setup and approved procedure.
- Record test duration, diagnostics, and environmental conditions.
- A 24-hour operating run may be included in the qualification plan, but should not be represented as completed unless documented.
Configuration and Packaging
- Record firmware and configuration identifiers when accessible.
- Document any known differences from the removed card.
- Package in ESD-safe material with mechanical protection.
- Include test and inspection records only when those activities have actually been completed.
Field Engineer’s Pitfall Guide
- ❗ Do not assume IOCN variants are interchangeable. Confirm the full ordering code, coating designation, board revision, and Ethernet configuration against the installed system.
- ❗ Do not overlook CPUM and rack compatibility. Verify the associated controller, ABE04x rack configuration, and prescribed card position before installation.
- ❗ Do not assume hot-swap is authorized for every application. Follow the applicable maintenance procedure and site protection-system requirements before removing or inserting the IOCN 200-566-000-113.
Intent-Driven FAQ
Q1: What is the IOCN 200-566-000-113?
It is a Vibro-Meter/Meggitt I/O and communications interface card used with the CPUM rack controller.
Q2: What does the IOCN do in a rack?
It provides interface and communications connectivity for the CPUM-based rack controller, including supported Ethernet and serial connections.
Q3: Is IOCN 200-566-000-113 an Ethernet-redundant version?
The ordering code is associated with an Ethernet-redundant, conformal-coated IOCN variant. Confirm the actual card markings and OEM documentation before relying on that distinction for a replacement.
Q4: Is the IOCN 200-566-000-113 compatible with every rack?
Do not assume universal compatibility. Verify the rack type, CPUM model, card revision, and system configuration against the applicable documentation.
Q5: Can the IOCN 200-566-000-113 be hot-swapped?
Hot-swap behavior and authorization depend on the system configuration and maintenance procedure. Do not remove or insert the card in an operating rack unless the applicable OEM procedure explicitly permits it.
Q6: Is this model obsolete?
The platform has a long installed base, but current OEM lifecycle status and service availability should be confirmed with the manufacturer or an authorized service channel.
Q7: Does the part number guarantee a tested unit or warranty?
No. Testing, warranty coverage, condition, and included accessories must be confirmed from the seller’s specific offer and supporting records.
