Vibro-Meter IOC16T 200-565-000-013 | VM600 I/O Card
Product Introduction
In a machinery monitoring rack, the signal interface is just as important as the processing card. A replacement interface that does not match the installed CMC 16 configuration can create avoidable commissioning delays or leave field signals improperly routed.
The Vibro-Meter IOC16T 200-565-000-013 is a 16-channel input/output interface card used with the VM600 CMC 16 condition-monitoring card. Installed at the rear of a compatible rack, it provides the field termination point for transducer and conditioner signals while interfacing with the rack backplane. The card supports configurable channel functions and signal routing through the VM600 Raw Bus and Tacho Bus.
For maintenance and procurement teams, the IOC16T is a configuration-specific spare—not a generic 16-channel I/O module. Confirm the complete 200-565-000-013 ordering number and compare the installed card’s terminal layout, revision, and DIL-switch settings before approving a replacement.

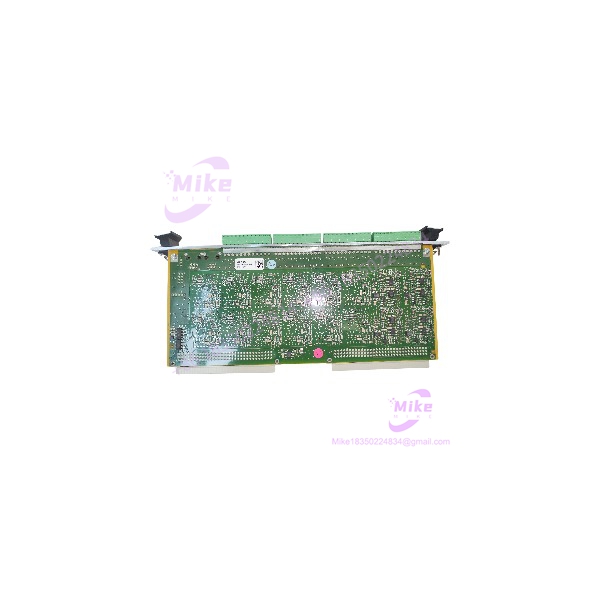

IOC16T 200-565-000-013
Key Technical Specifications
- Manufacturer: Vibro-Meter (Meggitt)
- Model: IOC16T
- Ordering Number: 200-565-000-013
- System: VM600 Machinery Protection and Condition Monitoring
- Product Type: Input/output signal interface card
- Channel Count: 16-channel interface
- Associated Processing Card: CMC 16 condition-monitoring card
- Mounting Location: Rear of a compatible VM600 rack
- Backplane Connection: Two rack-backplane connectors
- Field Termination: 48-terminal screw-terminal strip
- Channel Configuration: DIL-switch selectable
- Channel Function Groups: Published supplier information describes the first four channels as selectable for tachometer or dynamic signals, and the remaining 12 as selectable for dynamic or process signals. Verify against the applicable OEM manual and card revision.
- Signal Routing: VM600 Raw Bus and Tacho Bus
- EMI Protection: Input/output protection against electromagnetic interference and signal surges is described in supplier documentation.
- Serial Communication: An isolated RS-485 option is described in supplier references; verify whether it applies to the specific unit.
- Power Requirements: Exact card-level requirements not independently verified.
- Operating Temperature: Confirm the allowable range using the applicable OEM documentation for this ordering code.
- Firmware/Configuration: Confirm compatibility with the installed CMC 16 and system configuration.
Specification note: The channel count and general CMC 16 interface role are supported by available product references. Detailed electrical limits, isolation ratings, and environmental specifications should be checked against the applicable OEM documentation before engineering approval.
Global Sourcing & Live-Test SOP
The following is a recommended qualification workflow. It does not imply that this particular IOC16T has been inspected or tested.
Incoming Verification
- Confirm the IOC16T model and complete 200-565-000-013 ordering number.
- Record the serial number and hardware revision, if present.
- Photograph the nameplate, terminal strip, connectors, and PCB.
- Inspect for corrosion, damaged terminals, bent connectors, contamination, and signs of unauthorized repair.
- Compare the physical card and terminal layout with the removed unit and approved site documentation.
Authenticity and Traceability
- Record supplier information, purchase order, received condition, and shipment details.
- Check that the label, PCB markings, and supplied documentation are consistent.
- Request traceability or service records when available.
- Flag any unexplained differences in part number or revision before installation.
Functional Qualification
- Test only in an approved -compatible setup using applicable procedures.
- Verify card recognition and communication with the intended CMC 16 configuration.
- Check signal routing and channel behavior against an approved test plan.
- Verify DIL-switch settings against the site configuration before applying field signals.
- Record test equipment, configuration, results, and observed faults.
Extended Run and Diagnostics
- Perform an extended operating run where the test setup and OEM procedure support it.
- Record test duration, diagnostics, and environmental conditions.
- A 24-hour run may be included in a qualification plan, but must not be claimed as completed without supporting records.
Configuration and Packaging
- Document the card revision and relevant switch settings.
- Record any known differences from the removed card.
- Package using ESD-safe materials and adequate mechanical protection.
- Include inspection or test reports only when those activities have actually been completed.
Field Engineer’s Pitfall Guide
- ❗ Do not confuse with other interface cards. Confirm the complete 200-565-000-013 ordering code and CMC 16 pairing. Similar card names do not establish interchangeability.
- ❗ Do not copy DIL-switch settings from another installation. Channel functions and signal routing must match the actual field wiring and approved configuration.
- ❗ Do not assume hot-swap capability. Confirm the applicable rack and CMC 16 maintenance procedure before removing or inserting the . Isolate or shut down equipment as required by the site procedure.
Intent-Driven FAQ
Q1: What is the Vibro-Meter 200-565-000-013?
It is a 16-channel I/O interface card for the CMC 16 condition-monitoring card.
Q2: What does the do in a system?
It provides field signal termination and interfaces those signals with the rack and associated CMC 16 card.
Q3: How many terminals does the provide?
Supplier documentation identifies a 48-terminal screw-terminal strip. Confirm the actual terminal layout against the applicable card documentation before wiring.
Q4: Can the be used with any card?
Do not assume universal compatibility. The is specifically associated with the CMC 16. Confirm the intended card pairing and rack configuration.
Q5: Are channel functions configurable?
Yes. Available product references describe DIL-switch-selectable channel functions. The exact settings must be verified against the card revision and site wiring documentation.
Q6: Is the hot-swappable?
Do not assume so. Follow the applicable OEM maintenance procedure and site safety requirements before removing or inserting the card.
Q7: Does the part number guarantee a tested unit or warranty?
No. Condition, testing, warranty, and included accessories depend on the specific seller’s offer and supporting documentation. Request actual-unit photos and test records when those details are procurement requirements.
