Vibro-Meter 200-595-077-331 | VM600 Rack Controller Module
Dynamic Product Introduction
Critical rotating machinery—such as large steam, gas, and hydro turbines deployed in power generation and oil & gas facilities—requires continuous, uncompromised vibration and condition monitoring. When legacy rack controllers experience processing bottlenecks or communication dropouts, integrating a verified Meggitt Vibro-Meter CPUM 200-595-077-331 module restores absolute stability to the machinery protection system.
Engineered specifically as a double-width rack controller slot card, the CPUM coordinates data between internal protection cards (like the MPC4 or AMC8) and external control networks. Deploying a fresh CP00-595-077-331 unit ensures dependable system event logging, seamless “One-Shot” card configuration management, and reliable plant-wide integration.

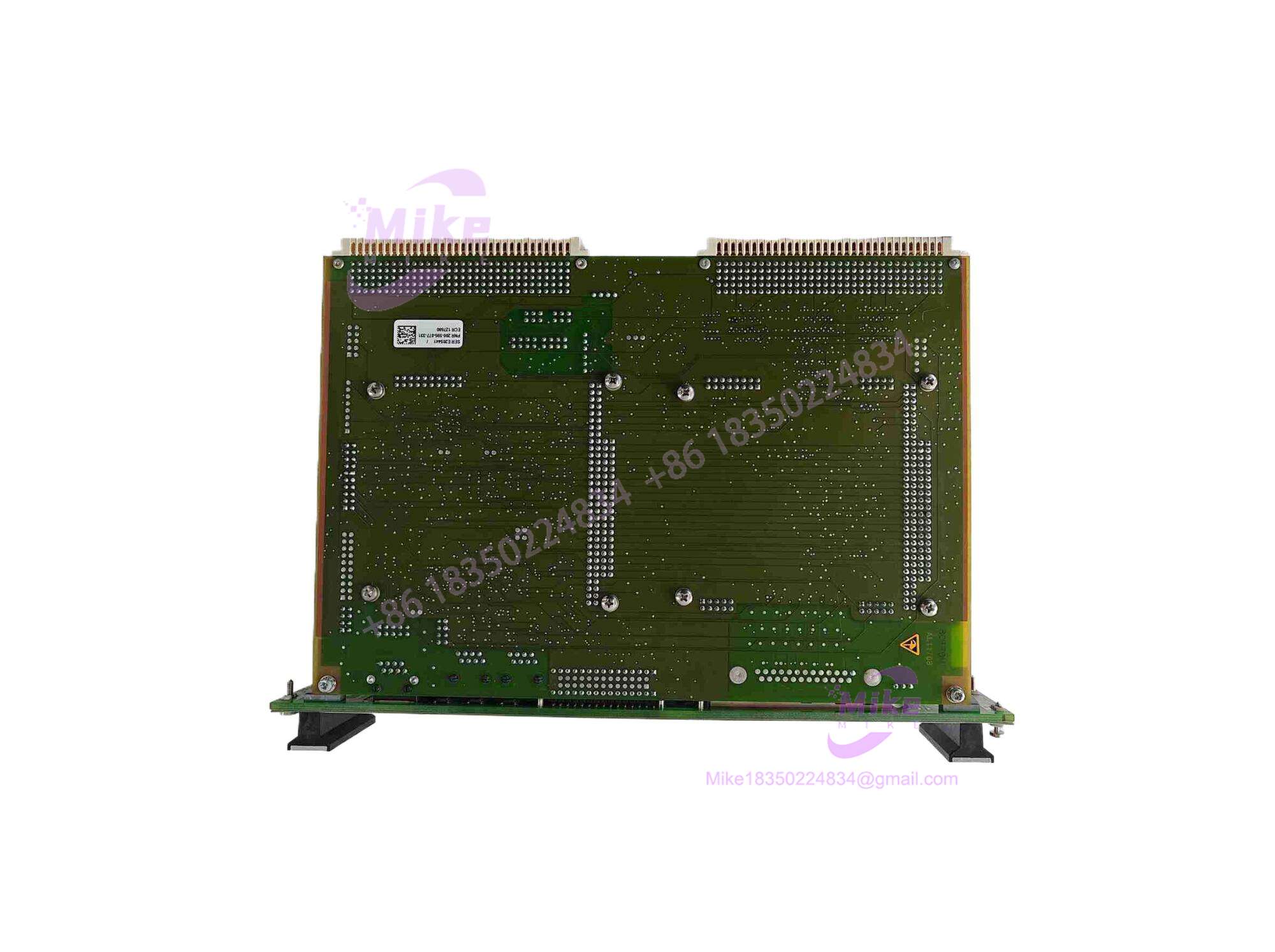

200-595-077-331
Key Technical Specifications
| Core Parameter | Technical Specification |
|---|---|
| Product Part Number | 200-595-077-331 (CPUM Modular CPU Card Variant) |
| Manufacturer | Meggitt / Vibro-Meter |
| System Compatibility | VM600 ABE04x System Racks (6U) and VM600 MPSx software environments |
| Card Slot Occupation | Double-width front module (occupies two rack slots alongside single-width IOCN) |
| Front-Panel Interface | Integrated LCD display screen, SLOT/OUT selection keys, and Alarm Reset (AR) button |
| Communication Protocols | Modbus RTU, Modbus TCP, and PROFINET support |
| Networking & Serial Ports | Dual Ethernet connections plus up to three simultaneous serial links (RS-232 / RS-422 / RS-485) |
| Operating Temperature | Standard industrial cabinet thresholds (0°C to +55°C) |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring legacy or surplus machinery protection hardware through secondary markets requires an exhaustive verification workflow to safeguard live safety-instrumented systems from failure.
- Inbound Verification: Incoming CPUM 200-595-077-331 batches undergo high-magnification optical inspection of VME backplane pins, PC/104 internal board connections, and laser traceability tags against official Meggitt production records.
- Live Simulation: Technicians seat the processor card into an active VM600 rack test bench energized by verified power rails to check boot-loader initialization and display screen health.
- Diagnostics: Engineers execute full-scale communication traffic sweeps across Ethernet and serial ports, verifying Modbus/PROFINET handshakes and running a 24-hour thermal soak chamber test.
- Final Prep: Units receive comprehensive firmware revision logging, static-dissipative wrapping, and custom vacuum sealing inside heavy-gauge moisture-barrier ESD shielding bags.
The Field Engineer’s Pitfall Guide
❗ Firmware and Suffix Code Discrepancies: Swapping a CPUM module with an unaligned suffix version or mismatched firmware revision can disrupt rack communication profiles and prevent proper synchronization with downstream IOCN interface cards. Always verify the exact part number string.
❗ VME Backplane Insertion Stress: Forcing the wide double-slot CPU card into an unaligned rack position can bend delicate gold backplane pins. Always guide the module smoothly along the subrack tracks before securing the front panel screws.
❗ Network Address Configuration Oversights: Neglecting to map your IP addresses, subnet masks, or node identifiers prior to live deployment will result in immediate network time-outs with your plant Distributed Control System (DCS).
Intent-Driven FAQ
Will swapping this CPUM 200-595-077-331 module erase my machinery protection configuration?
Configuration files and event logs are handled via the VM600 MPSx software suite and stored or managed through system architecture parameters. However, verifying your backup configuration files before executing a hardware swap is strongly recommended.
Are these units original factory sealed or surplus stock?
Sourced inventory pools span both original factory-sealed packaging and fully certified, tested surplus hardware. Every unit undergoes rigorous bench validation under simulated rack conditions prior to dispatch.
What is the function of the front-panel LCD screen?
The integrated LCD display provides real-time visibility into system health, run-times, rack security states, IP configurations, and overall channel status parameters across protection cards in the rack.
Can this controller operate independently without an IOCN card?
Depending on system requirements, a CPUM card can operate standalone or paired with an associated IOCN input/output communications card to handle extended rear cabling and redundant networking paths.
What kind of warranty accompanies a replacement CPU module?
All supplied units carry a comprehensive 1-year operational warranty covering internal component health, display stability, and communication port integrity.
Are you installing this CPUM 200-595-077-331 processor into an active turbine protection rack or keeping it on hand as a critical system hot-spare?
