Vexta AZD-KD | Closed-Loop Stepper Driver Built-In Controller

Description

Vexta AZD-KD | Closed-Loop Stepper Driver Built-In Controller

Architect’s Product Breakdown

The Oriental Motor Vexta AZD-KD functions as a high-density processing and power node within the AlphaStep AZ series ecosystem, engineered to drive closed-loop stepping systems without requiring external encoders or complex tuning loops. Its onboard processing core interfaces seamlessly with the patented mechanical ABZO absolute sensor, eliminating the maintenance burdens associated with traditional optical encoder backup batteries.

When designing cabinet layouts or replacing legacy Vexta drives, automation engineers rely on the unit’s native stored data structure, which holds up to 256 distinct motion profiles directly on board. These profiles are triggered via parallel I/O lines or multi-drop RS-485 networks using the Modbus RTU protocol. Initializing parameters and running diagnostics is handled through the MEXE02 software utility. Panel thermal planning must account for its continuous power dissipation and active internal DC bus regulation when managing rapid deceleration cycles.

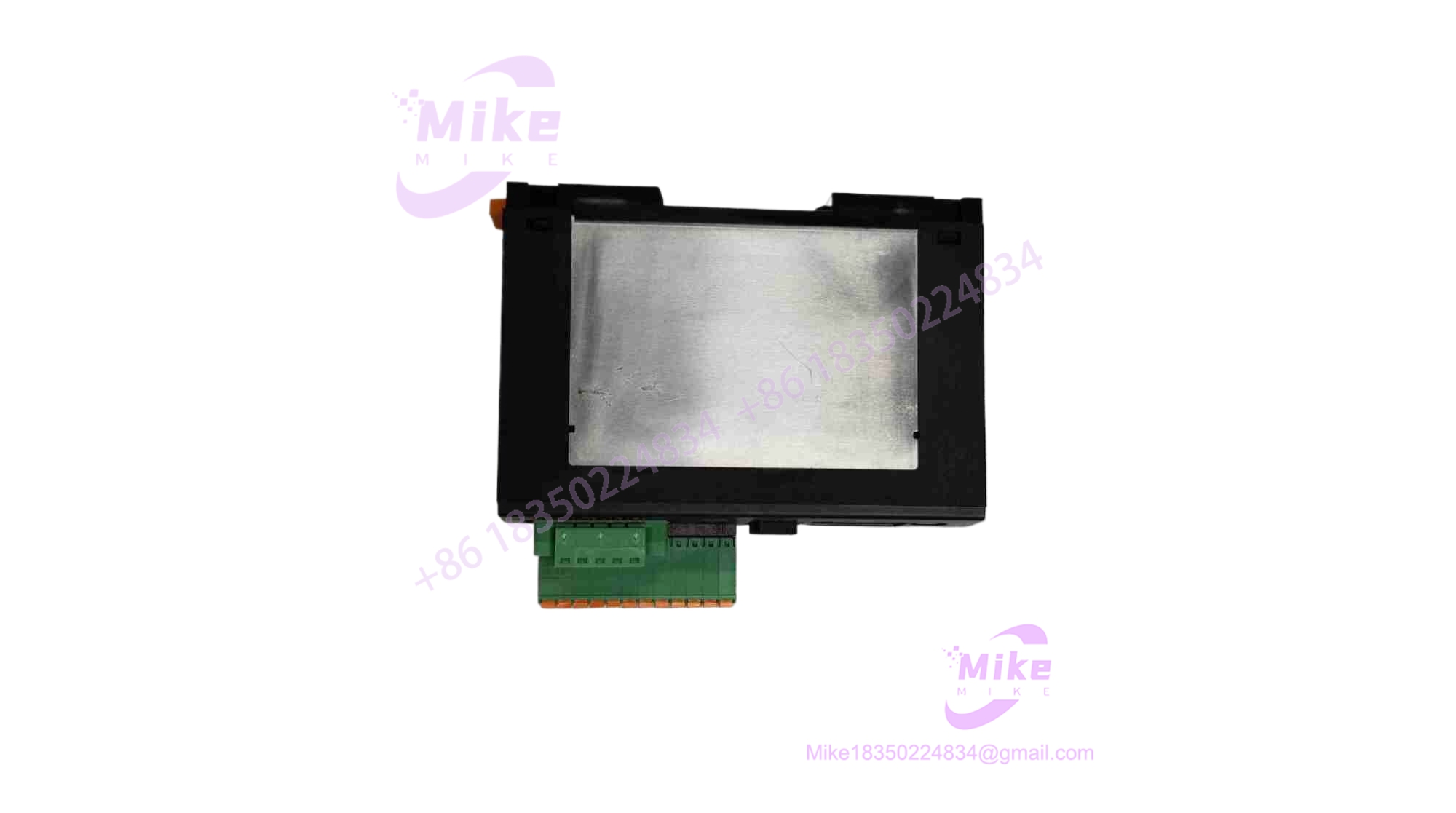

AZD-KD

Key Technical Specifications

Field Engineer’s Pitfall Guide

• WARNING: DC Bus Overvoltage Trips. Aggressive deceleration profiles or vertical overhauling loads can pump regenerative energy back into the 24/48V rail, tripping the driver on an overvoltage error if the power supply lacks adequate capacitance or if braking units aren’t scaled properly.
• WARNING: RS-485 Termination Errors. When stringing multiple AZD-KD drives on a Modbus RTU daisy chain, failing to install proper 120-ohm terminating resistors at both physical ends of the trunk line will cause intermittent packet drops and communication timeouts.
• WARNING: Hot-Plugging Power/Encoder Harnesses. Never disconnect the motor or absolute sensor umbilical cable while the DC supply is energized. Doing so can corrupt the driver’s handshake register, forcing an absolute position re-initialization sequence via the software tool.

QA & Testing SOP (Transparency)

To guarantee reliability in high-cycle automation cells, verified hardware validation involves:

• Visual & Structural Inspection: Review of housing integrity, connector pin straightness, and verification of original OEM identification tags.
• Power Rail & Logic Isolation Testing: Testing input stage resistance, ground continuity, and internal DC voltage regulation thresholds.
• Dynamic Load Simulation: Hooking the driver to a test-bench AZ series motor to verify absolute sensor tracking, current loop stability, and data profile execution.
• Firmware Logging & ESD Packaging: Recording the active firmware revision state, followed by anti-static shielding and static-safe vacuum sealing.

Technical FAQ

Can I run the AZD-KD with standard pulse-train commands from a PLC?

No. The AZD-KD is a built-in controller (stored data) variant designed to execute pre-programmed profiles via internal memory tables, network commands, or discrete I/O. If your application requires real-time pulse-train and direction tracking from an external motion controller, you must use the pulse-input variant of the driver line.

Does the driver require a battery replacement protocol?

No. The absolute position architecture utilizes a mechanical multi-turn gear structure inside the ABZO sensor, meaning it retains coordinate tracking across total power loss without a lithium backup battery.

How do I modify or download motion profiles to this unit?

Configuration, parameter adjustments, and data table writing are managed via a PC running Oriental Motor’s MEXE02 support software linked directly to the driver port.

Is multi-axis networking supported out of the box?

Yes. Up to 31 AZD-KD drivers can be linked in a multi-drop RS-485 network topology, allowing a host PLC or industrial computer to command and monitor all nodes over Modbus RTU.
