Valmet A413125 | AIU8 Analog Input Module Core Category
Dynamic Product Introduction
Analog signal degradation or complete module failure in continuous process loops can blind operators to critical variations in pressure, flow, or temperature. When an legacy input card drops offline, waiting months for standard manufacturer allocation schedules creates unacceptable production losses.
The Valmet A413125 (AIU8) analog input module eliminates this bottleneck by providing a precise, drop-in replacement card designed specifically for established Metso and Damatic control racks. Deploying this hardware restores precise process feedback loops instantly—though verifying channel scaling configuration files in the engineering station remains mandatory prior to loop commissioning.

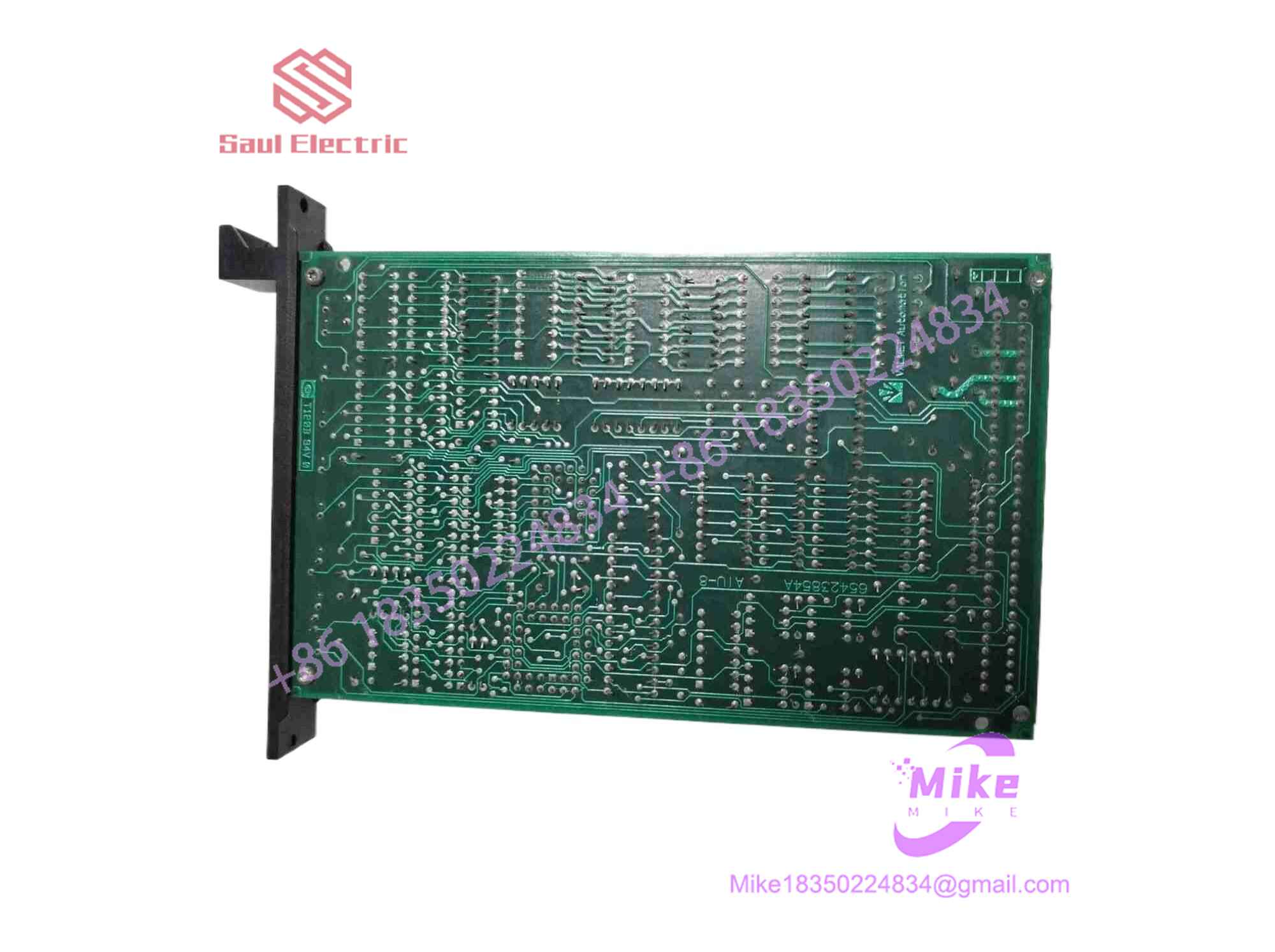

A413125
Key Technical Specifications
| Parameter | Specification Details |
| Module Classification | Analog Input Unit (AIU8) |
| System Compatibility | Valmet Damatic / Metso DNA process control architectures |
| Input Channels | 8-channel multi-purpose analog configuration |
| Signal Conversion | High-resolution analog-to-digital processing |
| Hardware Revisions | Available across multiple iterations (e.g., Ver. 06, Ver. 08, Ver. M2) |
| Bus Interface | High-speed internal rack backplane connector |
| Diagnostic Features | On-board status LEDs for channel health and module status |
| Operating Temperature | Heavy industrial rating (-20°C to +60°C) |
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement analog hardware into live operational loops requires strict verification protocols to prevent signal drift, common-mode noise interference, and calibration errors.
- Inbound Verification: Incoming circuit boards undergo thorough optical inspections, evaluating edge-connector gold finger plating, surface-mount component soldering, and laser-etched OEM markers against historical build logs.
- Live Simulation: Technicians seat the module onto a powered Valmet backplane test rig to evaluate physical slot recognition, internal bus arbitration, and power regulation without throwing bus faults.
- Diagnostics: We inject precise millivolt and milliamp signals using calibrated Fluke calibration tools to validate channel linearity, conversion accuracy, and noise rejection ratios across full operational ranges.
- Final Prep: Approved units are cleared of micro-contaminants, logged by hardware revision, and sealed inside vacuum-locked anti-static shielding bags to guarantee shelf-ready reliability.
The Field Engineer’s Pitfall Guide
❗ Firmware Revision Discrepancies: Swapping an older hardware revision card with a later variant (such as moving from Ver. 06 to an un-updated slot profile) can cause system configuration software to reject the node during compilation. I’ve seen plant loops stay out of service for hours because the engineering station demanded a matching hardware descriptor file.
❗ Terminal Block Wiring Misalignment: Forgetting to match multi-pin swing-arm field terminal blocks precisely to the A413125 pinout can bridge low-level signal lines, resulting in erratic process variable jumping or open-circuit alarms across the node.
❗ Backplane Insertion Force Errors: Forcing an analog card into a rack with unaligned guide slots can bend microscopic backplane pins, triggering intermittent communication dropouts that resist software-level diagnostics.
Intent-Driven FAQ
Will swapping the A413125 module erase my scaling or configuration parameters?
No. Channel scaling factors, engineering units, and tag definitions are stored within the central system engineering database or node controller memory, not permanently locked to the input card. Once seated, the module maps automatically to the existing database configuration.
Are these replacement boards brand new or refurbished?
Due to the legacy status of these control platforms, inventory generally consists of factory-sealed surplus (never installed, climate-stored) or fully tested, premium-grade pulls from decommissioned industrial facilities. Every unit undergoes strict bench validation before release.
Can I hot-swap the A413125 module in an active control rack?
While many modular backplanes physically support card insertion, you must verify that your specific rack architecture and system software configuration permit live-bus card replacement. Always check plant safety interlocks to prevent unexpected process disruptions.
What warranty protects this replacement module?
All delivered input modules are backed by an independent operational warranty (typically covering 12 months), protecting against functional failure, signal conversion drift, and electrical component defects under normal operating conditions.
How do I confirm the module is operating correctly upon physical installation?
Observe the front-panel diagnostic LED indicators during system boot-up. A healthy module will complete its internal initialization routine, clear fault registers, and show steady communication and channel status without latching error codes.
