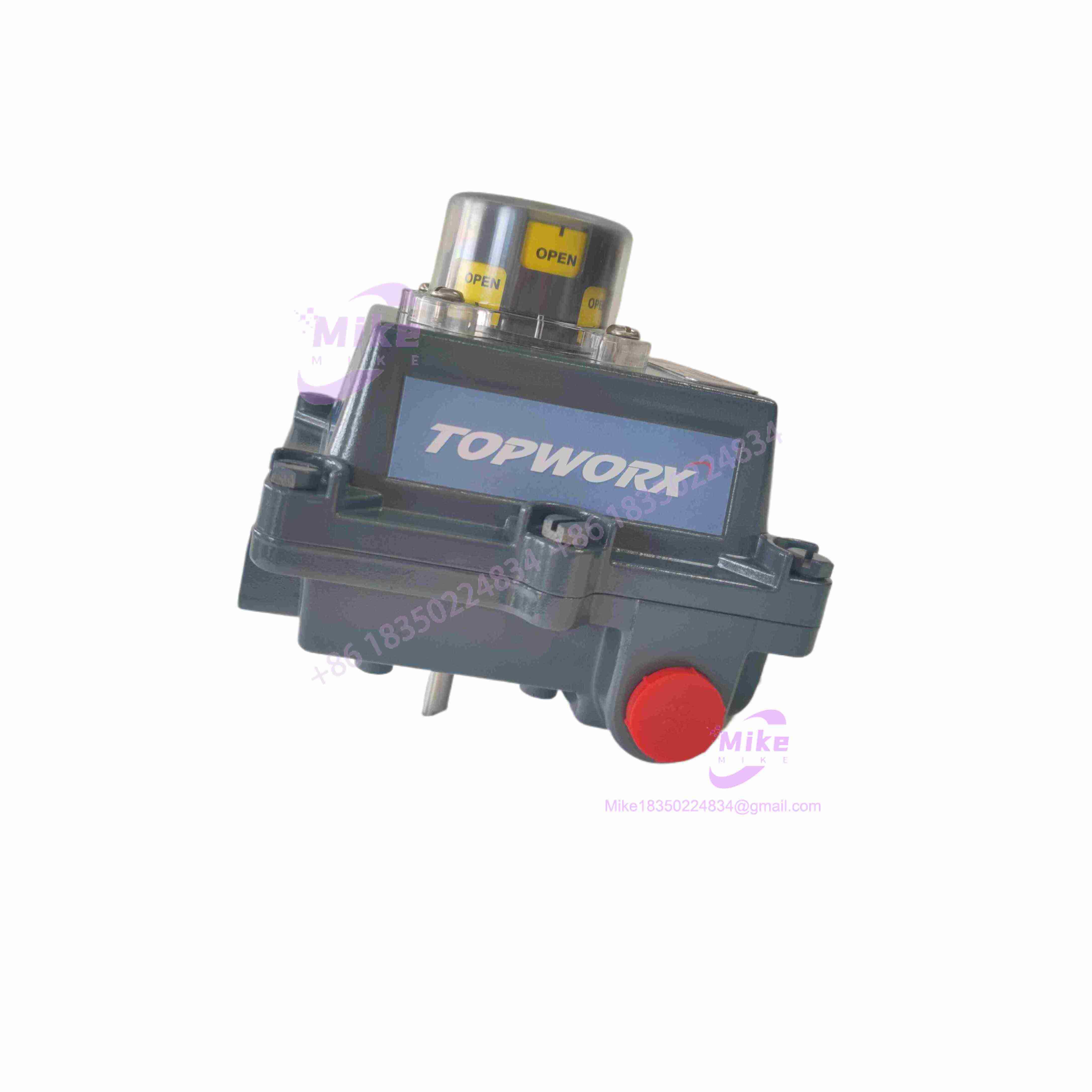

TopWorx DXP-L21ZNEB | Discrete Valve Controller, In Stock
Architect’s Product Breakdown
The TopWorx DXP-L21ZNEB operates as a rugged, globally certified discrete valve controller engineered to monitor and report the exact physical position of automated industrial valves (such as ball, butterfly, and plug valves) in severe process environments. Utilizing TopWorx’s signature hermetically sealed leverless GO™ switches, the unit translates physical valve rotation into reliable electrical feedback signals while standing up to high-vibration, corrosive, wet, and explosive conditions found in chemical, oil & gas, power generation, and wastewater facilities.
Because valve monitoring components must match exact plant safety ratings and enclosure specifications during maintenance cycles, verifying the precise part number string (DXP-L21ZNEB) is vital. The configuration denotes a tropicalized aluminum housing, dual SPDT GO switches, specialized area classification certifications, and standard conduit/shaft interfaces. Swapping a unit requires careful alignment of the internal twist-set cams to ensure the visual position indicator matches the actual open/closed valve state.
DXP-L21ZNEB
Key Technical Specifications
| Parameter | Specification |
| Series | TopWorx DX-Series (DXP Enclosure) |
| Model / Part Number | DXP-L21ZNEB |
| Enclosure Material | Heavy-duty tropicalized aluminum (powder-coated inside and out) |
| Sensor Type | (2) SPDT hermetically sealed GO™ Switches |
| Visual Display | Standard 360° adjustable visual position indicator (e.g., Green OPEN / Red CLOSED) |
| Shaft & Cam Design | 304 Stainless steel shaft with color-coded twist-set adjustment cams |
| Operating Temperature | -40°C to +80°C (dependent on internal components) |
| Environmental Rating | IP66 / IP67 / Type 4, 4X (Weatherproof & Corrosion Resistant) |
Field Engineer’s Pitfall Guide
- WARNING: Improper Cam Adjustment. Failing to correctly align the color-coded twist-set cams during installation will cause the control room to receive false open/closed valve position feedback, risking dangerous process misalignments.
- WARNING: Hazardous Area Compromise. Opening the enclosure or failing to fully torque down all captive cover bolts and conduit plugs in an active explosive atmosphere violates hazardous area safety certifications.
- WARNING: O-Ring Seal Damage. Pinching or omitting the Buna-N cover O-ring during reassembly allows moisture and corrosive process washdown fluids to penetrate the electronics cavity, leading to switch failure.
- Field Anecdote: I remember a chemical plant startup delay caused by a valve monitor replacement where the wiring was landed without checking the switch contact ratings, resulting in an immediate contact weld when subjected to unsuppressed inductive DC loads.
QA & Testing SOP
- Visual & Origin Verification: Inspect the powder-coated aluminum housing for scratches, verify captive stainless steel cover bolts, and cross-reference original TopWorx manufacturing serial tags.
- Live Test Bench Environment: Mount the controller onto a manual test valve stem or pneumatic actuator test rig in a controlled workshop setting.
- Diagnostics & Switching Check: Cycle the shaft through its full 90-degree rotational arc, verify seamless electrical continuity across both GO switch channels, and test visual indicator alignment.
- Anti-Static & Protective Packaging: Seal the unit in heavy-duty packaging with structural cushioning to protect external indicator domes and conduit threads during transit.
Technical FAQ
Can the DXP-L21ZNEB be used in hazardous explosive atmospheres?
Yes. The DXP series is engineered with global hazardous area certifications (including ATEX, IECEx, and UL listings for explosion-proof/non-incendive environments). Always verify local code requirements against the specific suffix rating.
What makes GO Switches superior to standard mechanical microswitches?
GO Switches are hermetically sealed in stainless steel housings, protecting the internal contacts from moisture, dirt, corrosion, and extreme temperatures, which eliminates common failure modes found in standard open microswitches.
Does this model include an integrated pneumatic solenoid pilot valve?
The baseline suffix configuration focuses on discrete position sensing (limit switching); verify whether a built-in pilot valve module is specified if pneumatic control is required alongside feedback.
How is the valve position visually monitored?
The unit features a high-impact, polycarbonate visual indicator dome that provides 360-degree high-visibility status monitoring (such as green for open, red for closed) linked directly to the internal shaft rotation.
